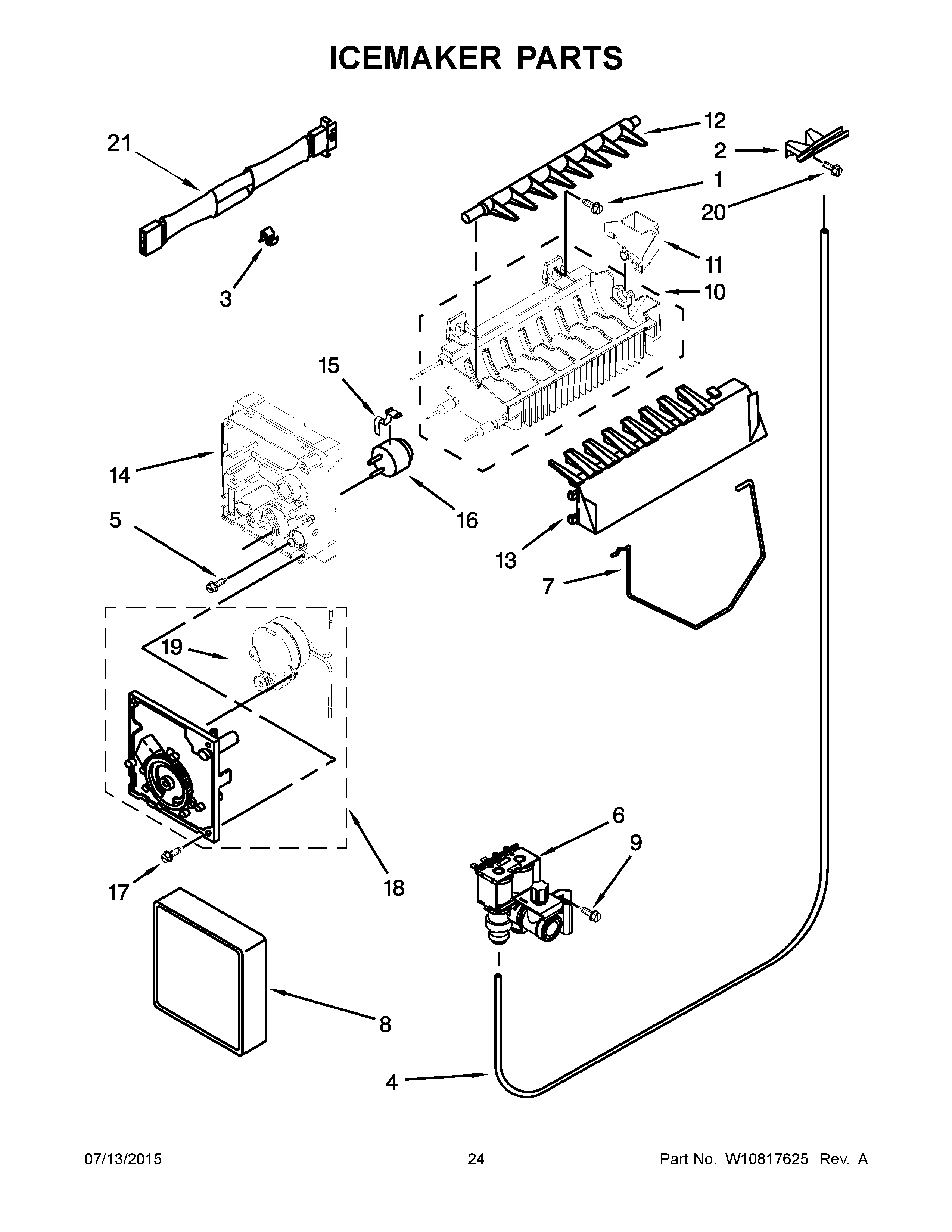

ASD2275BRB02 13 – ICEMAKER PARTS
Written by
in
ASD2275BRB02 13 – ICEMAKER PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
Icemaker Install Kit
1
Screw
2
MAY 2209774
3
Clip
4
MAY W10357069
5
Screw (2)
6
MAY W10179146
7
MAY 2304354
8
COVER
9
MAY 488649
10
ASSEMBLY, MOLD AND HEATER
11
MAY W10435665
12
MAY W10318914
13
ICE STRIPPER
14
Support & Motor Assembly
15
MAY 2315522
16
Thermostat (Also Order 542369 Cement)
17
Screw (3)
18
Module Assembly (Includes Items 23 and 24)
20
MAY 489084
21
MAY W10508644
100
MAY W10300022
←
