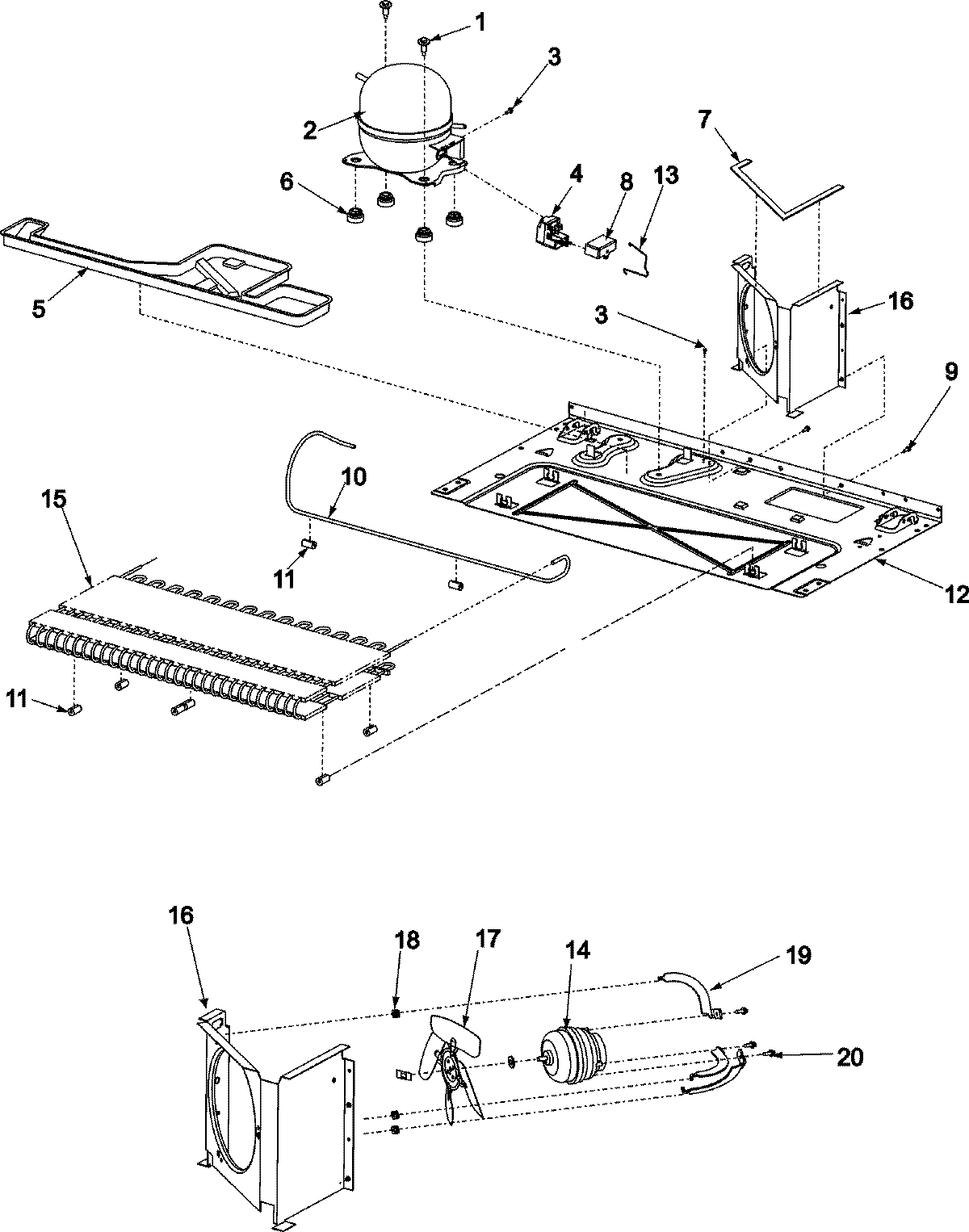

ASD2324HEQ 02 – COMPRESSOR

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY 67003790
2	MAY 67003084
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
9	MAY M0238616
10	MAY 67004262
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005268
13	MAY 12576801
14	MAY 67004432
15	WP67006132 Whirlpool Refrigerator Condenser
15	MAY 67002235
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	MAY 67004953
20	Screw (3)
