ASD2324HES 05 – EVAP FAN ASSY AND LIGHTS

ASD2324HES 05 – EVAP FAN ASSY AND LIGHTS

Written by

in

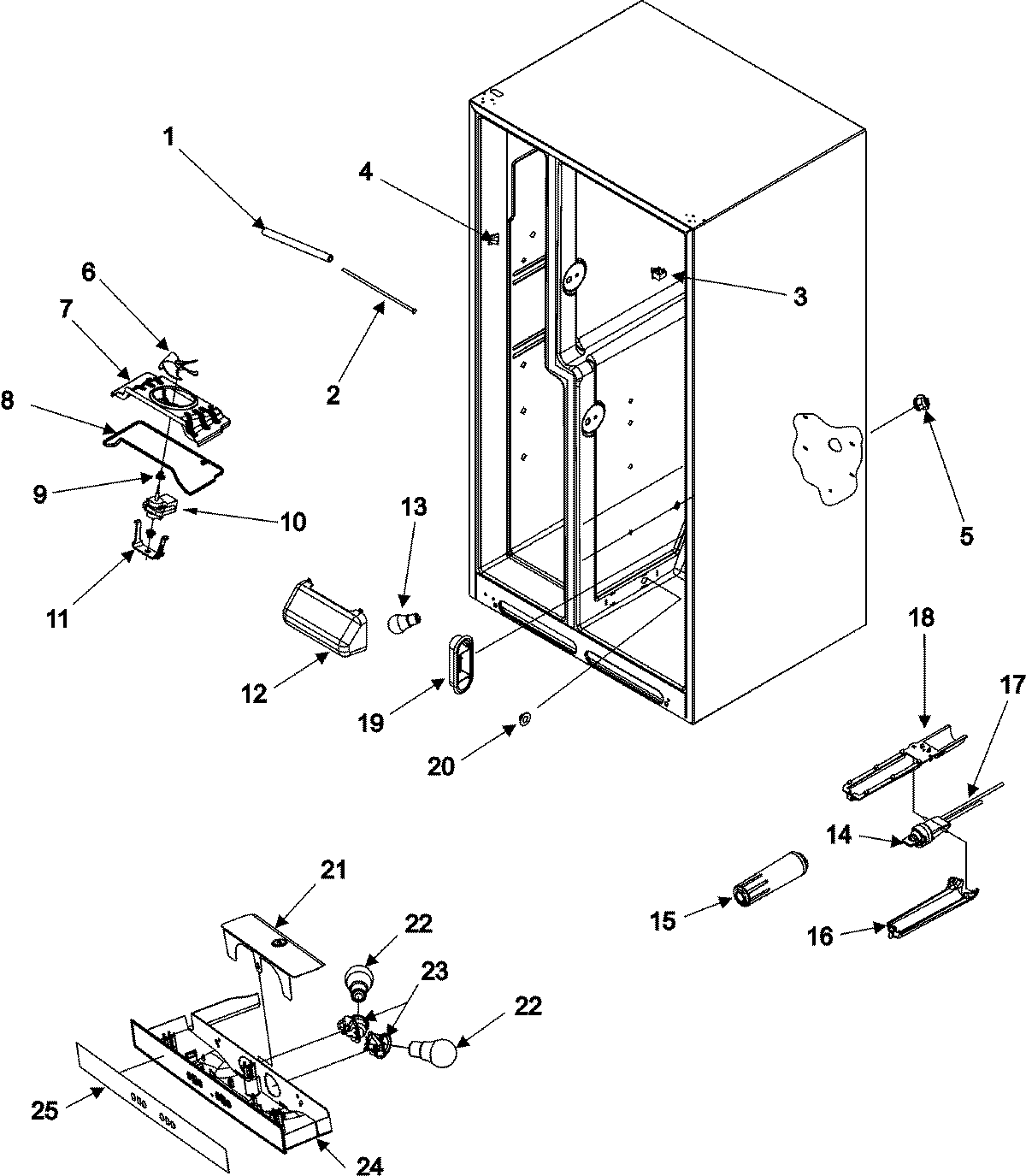

ASD2324HES 05 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
1MAY A0329806
2MAY M0322202
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
6MAY 12217201
7SHROUD, CONDENSER FAN
8MAY 67001508
9GROMMET, BRACKET
10WPW10128551 Whirlpool Evaporator Fan Motor
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
14WP67004106 Whirlpool Water Filter Housing
15FILTER, WATER SINGLE
16WP12568001 Whirlpool Filter Cover
17MAY 67002270
18MAY 12688503
19MAY 12634801
20MAY 67002826
21MAY 67005038
22Bulb, Light (2)
23Socket, Light (2)
24MAY 67004939
25MAY 67005296
