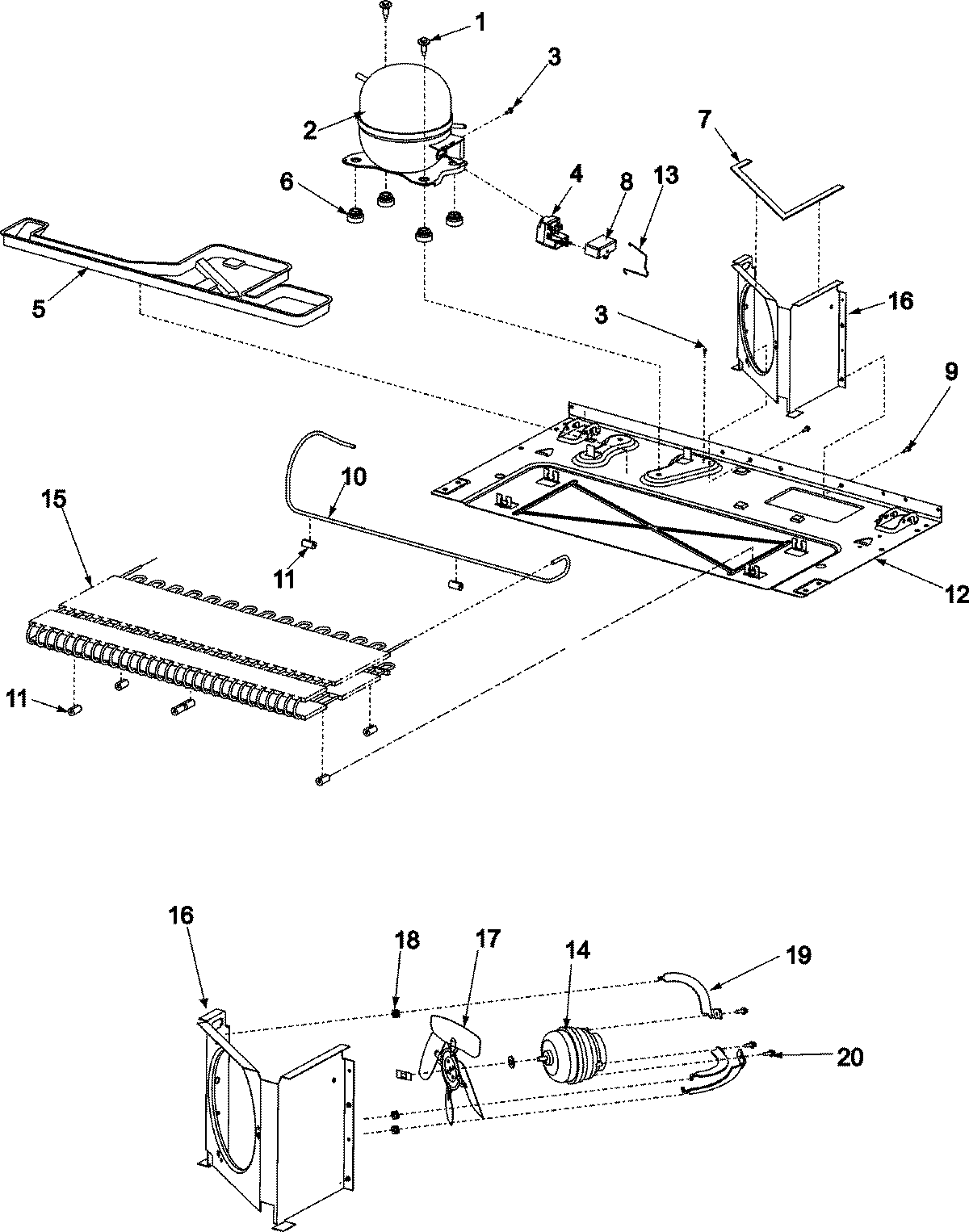

ASD2325KEQ 02 – COMPRESSOR

Products

Position	Product
1	MAY 67006432
2	W10309990 Whirlpool Refrigerator Compressor
3	MAY 67006433
4	OVERLOAD/RELAY W/CAPACITOR
5	Drain Pan
6	WP67004954 Whirlpool Refrigerator Screw
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	Capacitor
9	Screw (10)
10	MAY 67004262
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	BASEPAN, MACHINE COMPARTMENT
13	MAY 12576801
14	MAY 67004432
15	MAY 67002235
15	WP67006132 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	MAY 67004953
20	67004955 Whirlpool Refrigerator MC Harness
