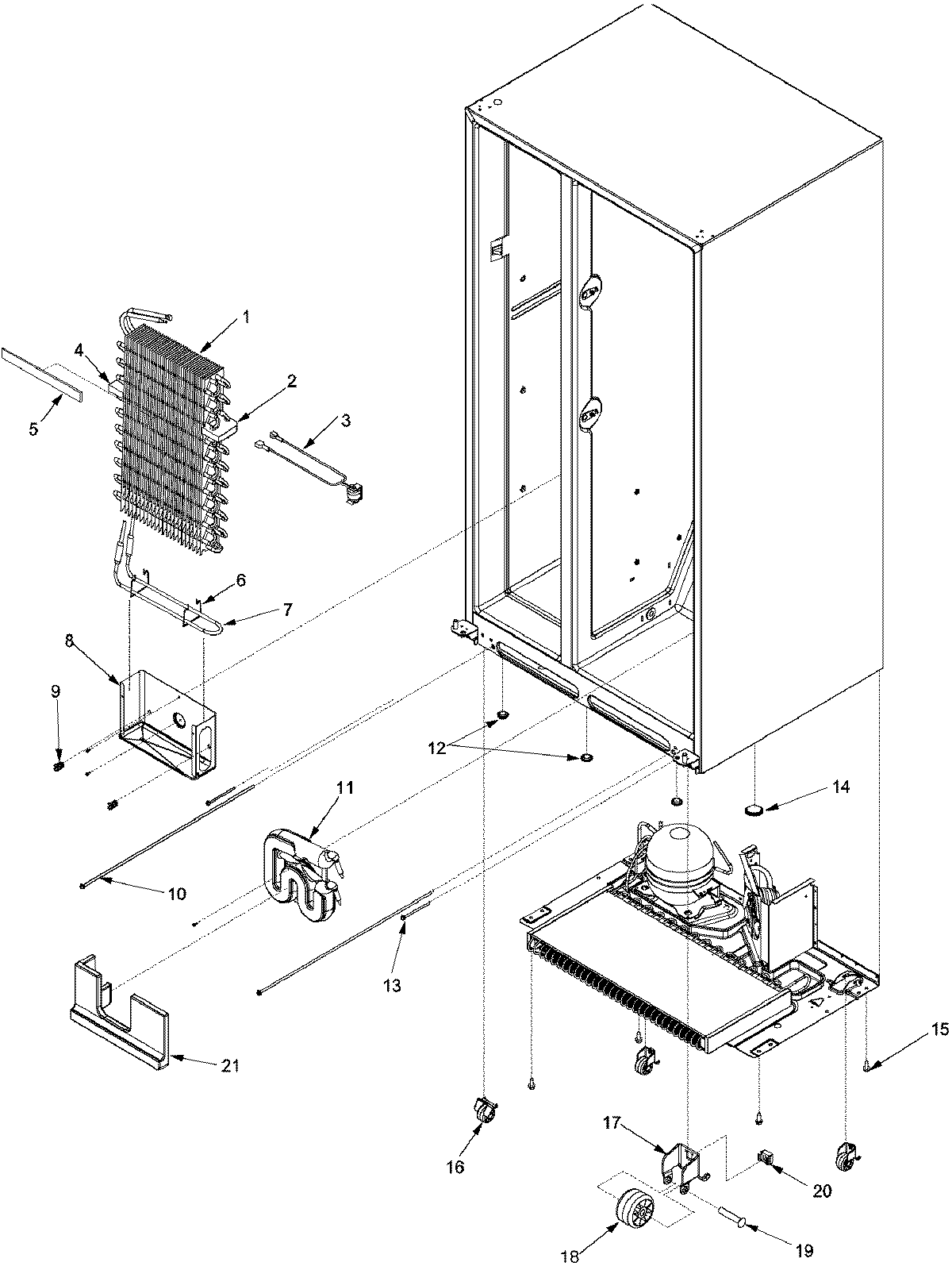

ASD2325KES 06 – EVAPORATOR ASSY AND ROLLERS

ASD2325KES 06 – EVAPORATOR ASSY AND ROLLERS

Written by

in

ASD2325KES 06 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
1MAY 67004958
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67004947
6W11673433 Whirlpool Clip
7WP67004948 Whirlpool Refrigerator Evaporator Heater
8MAY 67006838
8MAY 67004949
9MAY 10623003
11MAY R0131625
11WP98165 Whirlpool Screw
12MAY 67004309
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15Screw (4)
16Roller Assy.(Rear)
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
20MAY M0286708
21MAY 67006622
