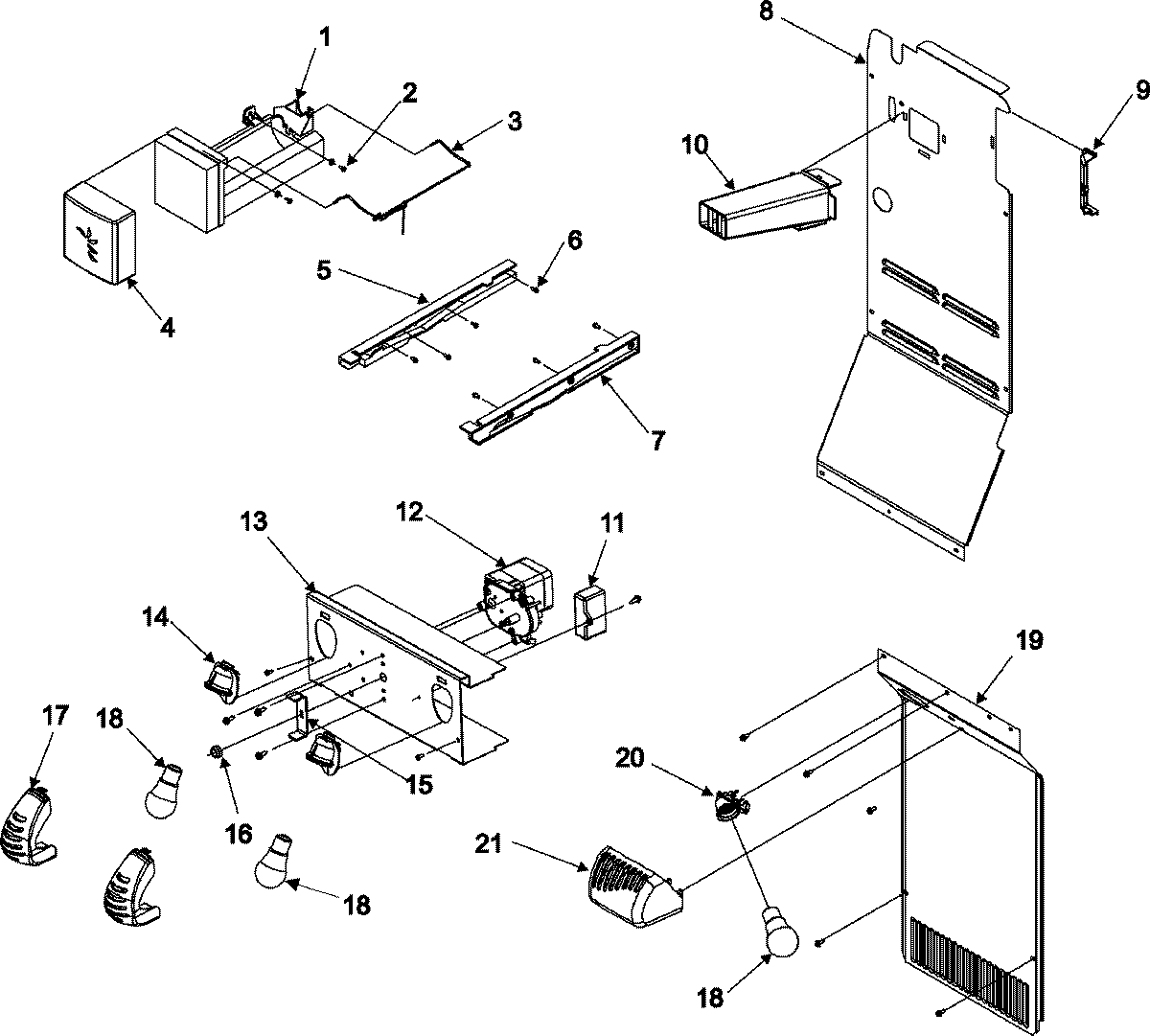

ASD2326HEQ 15 – LIGHTS AND ICE MAKER

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	MAY M0238833
3	MAY 12671401
4	Cover
5	67005375 Whirlpool Refrigerator Glide, Freezer (Left)
6	67006529 Whirlpool Refrigerator Screw
7	MAY 67004323
8	MAY 67004950
9	MAY M0580205
9	MAY 12583101
10	MAY 67003578
11	MAY M0226528
11	CAPACITOR
12	WP67003226 Whirlpool Motor Auger
13	MAY 67004191
15	MAY 10114901
16	WPM0223101 Whirlpool Refrigerator Nut
18	RANGE ONLY 40W 120V APPL BULB
19	MAY 67004951
19	MAY M0238616
20	Socket, Light (2)
21	MAY 67004135
