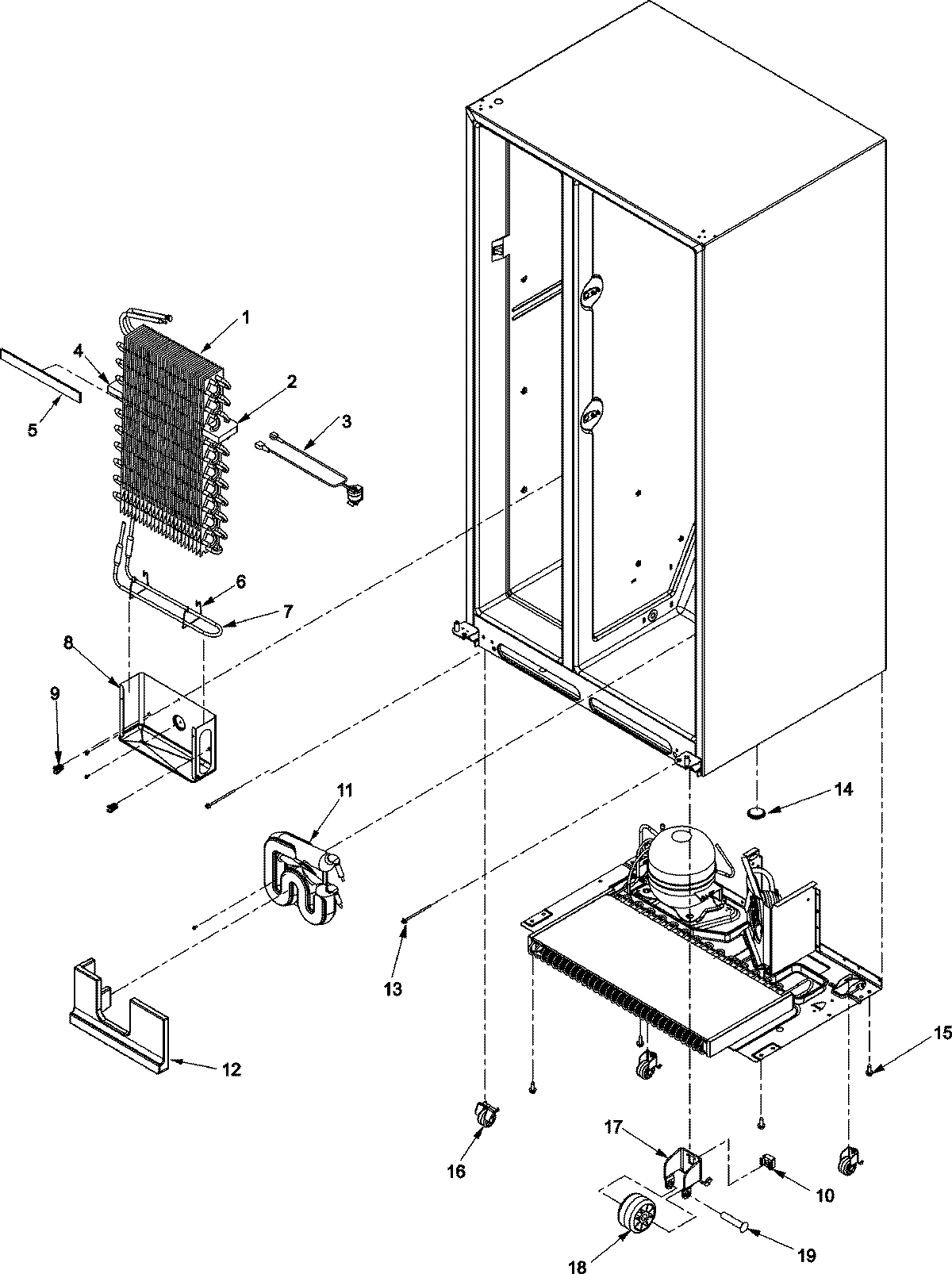

ASD2328HEQ 06 – EVAPORATOR ASSY AND ROLLERS

ASD2328HEQ 06 – EVAPORATOR ASSY AND ROLLERS

Written by

in

ASD2328HEQ 06 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
NIMAY 67004321
NIMAY M0286708
1MAY 67004958
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67004947
6W11673433 Whirlpool Clip
7WP67004948 Whirlpool Refrigerator Evaporator Heater
8MAY 67004949
8MAY M0224416
9MAY 10623003
10MAY 10093313
11MAY R0131625
11MAY M0211018
12MAY 67004309
1371003131 Whirlpool Oven Screw
14MAY A3080001
15MAY 67001510
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
