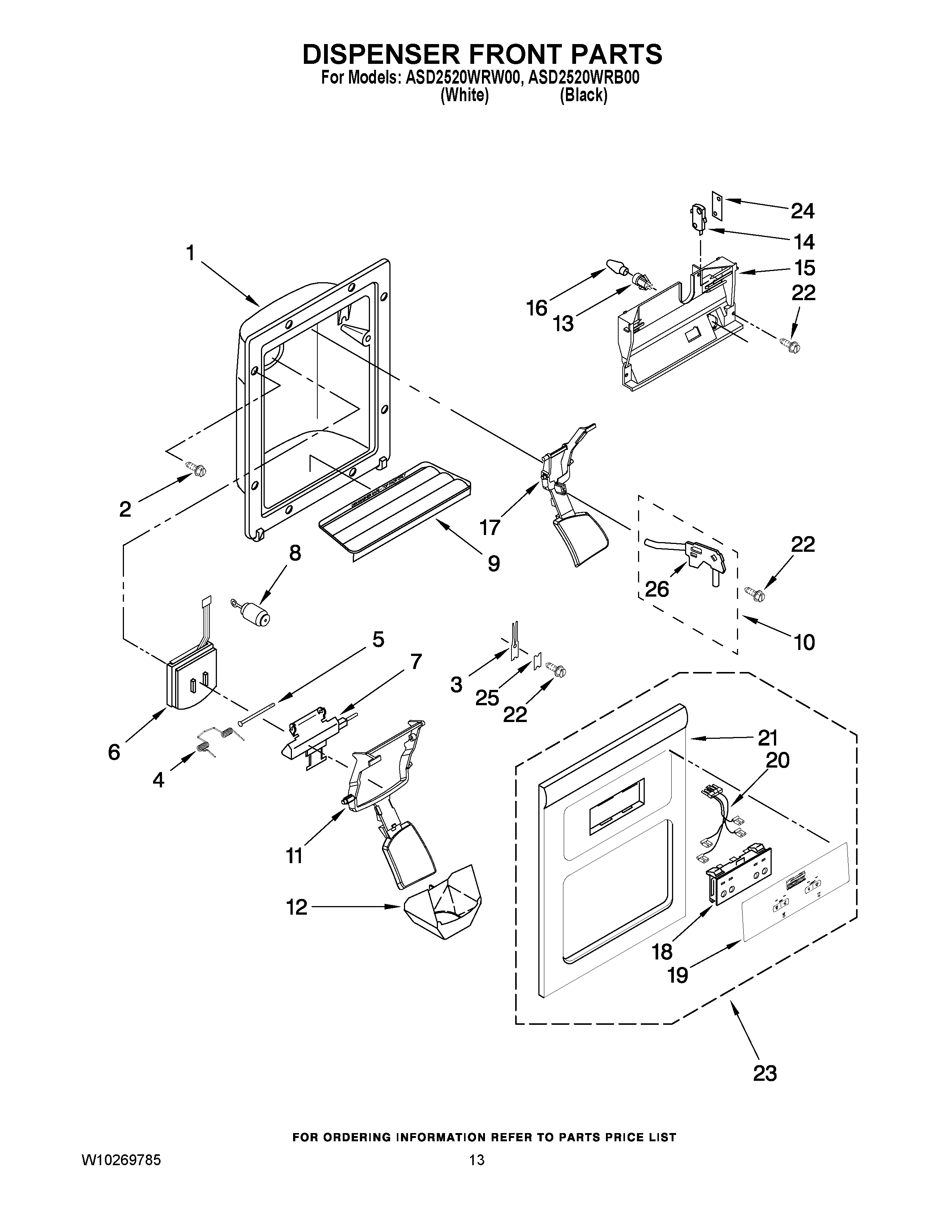

ASD2520WRB00 08 – DISPENSER FRONT PARTS
Written by
in
ASD2520WRB00 08 – DISPENSER FRONT PARTS
Products
Position
Product
2
Screw
3
MAY 2194719
4
MAY W10224328
5
MAY 2196195
6
MAY 2180353
7
MAY 2304355
8
MAY 2205686
9
Grille, Overflow (White)
9
Grille, Overflow (Black)
10
MAY 2304317
11
MAY W10152853
11
MAY W10152854
12
MAY 2180224
13
MAY 2180200
14
Switch (4)
15
MAY 2183771
16
MAY 527949
17
MAY W10152858
17
MAY W10152859
18
Switch Assembly
20
MAY 2325305
22
MAY 489000
23
MAY W10203239
23
MAY W10203045
24
MAY 625834
25
MAY 2195051
26
MAY 2304673
←
