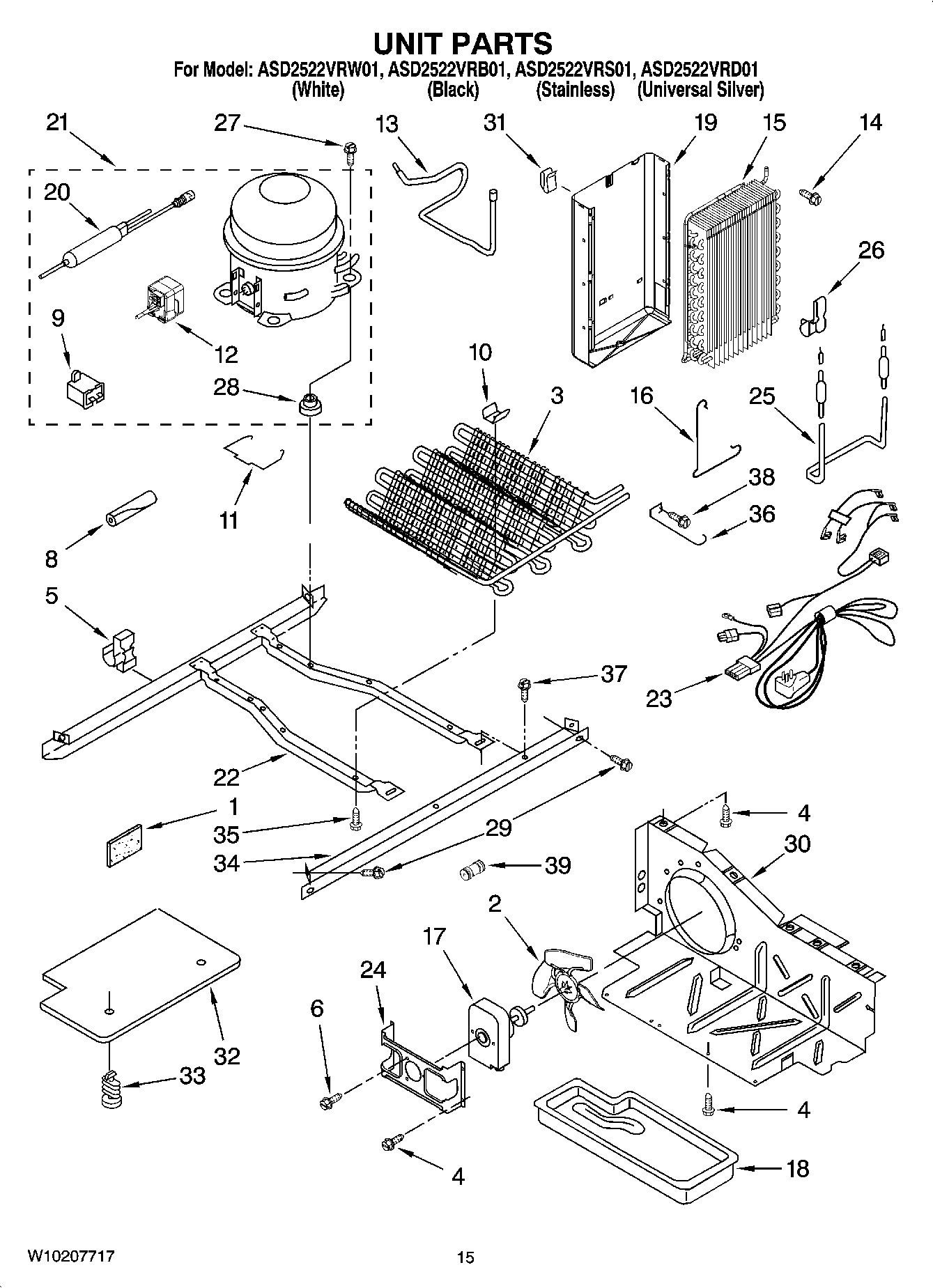

ASD2522VRB01 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	SEALER, INSULATION
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
8	Sleeve, Pressure Switch Hose
9	Capacitator (Production)
10	MAY 2216914
11	Strap, Bale
12	Start-Device, Combination (Start Relay and Overload)
13	MAY 2205765
14	MAY 489478
15	Evaporator
16	Clip
17	Fan, Motor
18	MAY 1105523
19	Heat Shield (Includes 26)
20	Drier
20	Drier
21	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
22	MAY 2304904
23	MAY 2187510
24	MAY 2181929
25	MAY 2323198
26	MAY 2304287
27	MAY 489373
28	Grommet (Production)
29	MAY 489340
30	MAY 2196202
31	MAY 2155547
32	Unit Cover, Bottom
33	MAY 489396
34	MAY 2305374
35	MAY 8281232
36	MAY 2260517
37	MAY 489427
38	MAY 488649
39	Connector, Water
