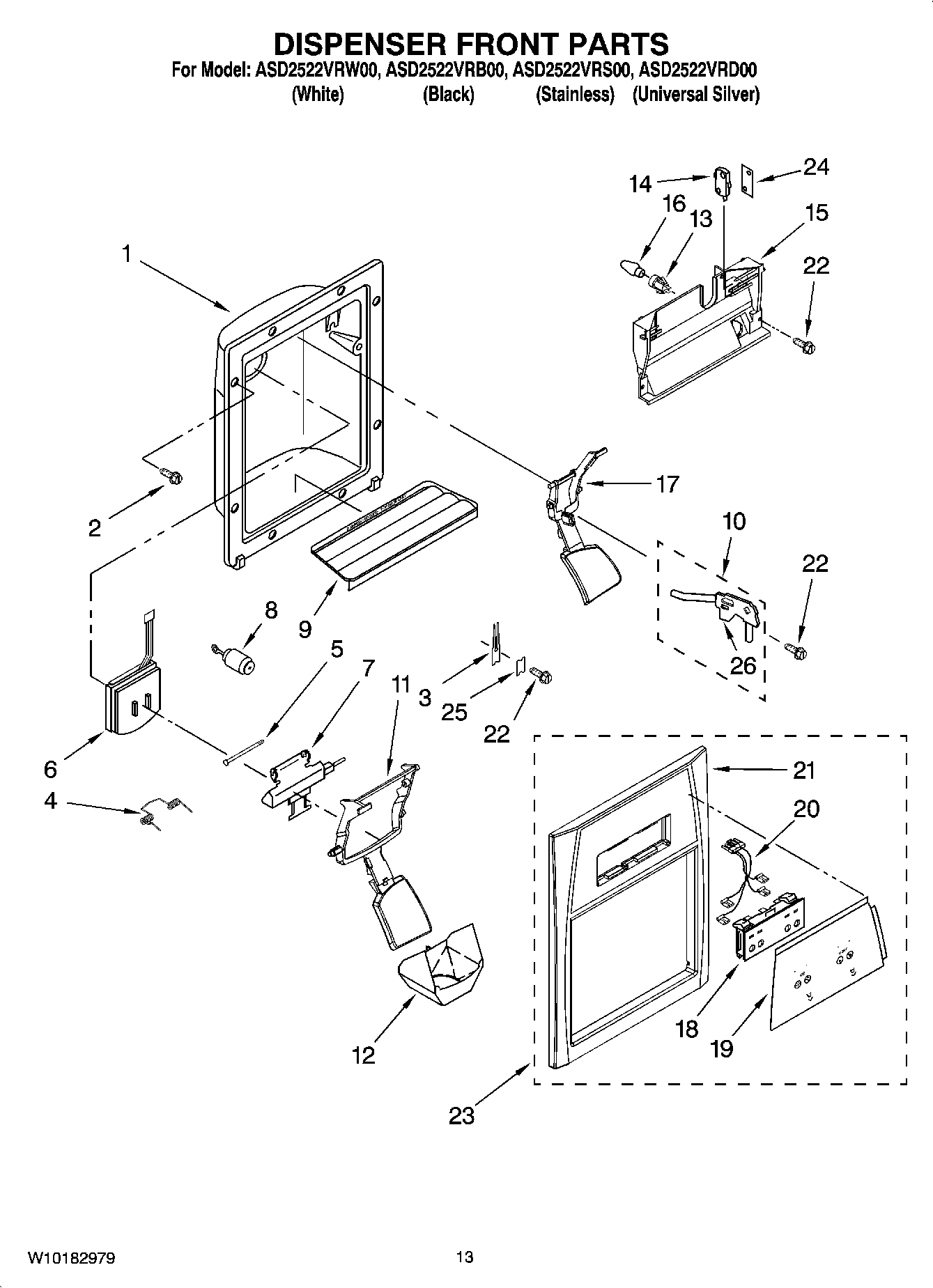

ASD2522VRD00 08 – DISPENSER FRONT PARTS

ASD2522VRD00 08 – DISPENSER FRONT PARTS

Written by

in

ASD2522VRD00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9Grille, Overflow (White)
9Grille, Overflow (Black)
10MAY 2304317
11Lever, Ice Dispenser (White)
11Lever, Ice Dispenser (Black)
12MAY 2180224
13MAY 2180200
14Switch (4)
15MAY 2183771
16MAY 3406124
17Lever, Water Dispenser (Black)
17Lever, Water Dispenser (White)
20MAY 2311640
22MAY 489000
23MAY W10169591
23MAY W10169593
24MAY 625834
25MAY 2195051
26MAY 2304673
