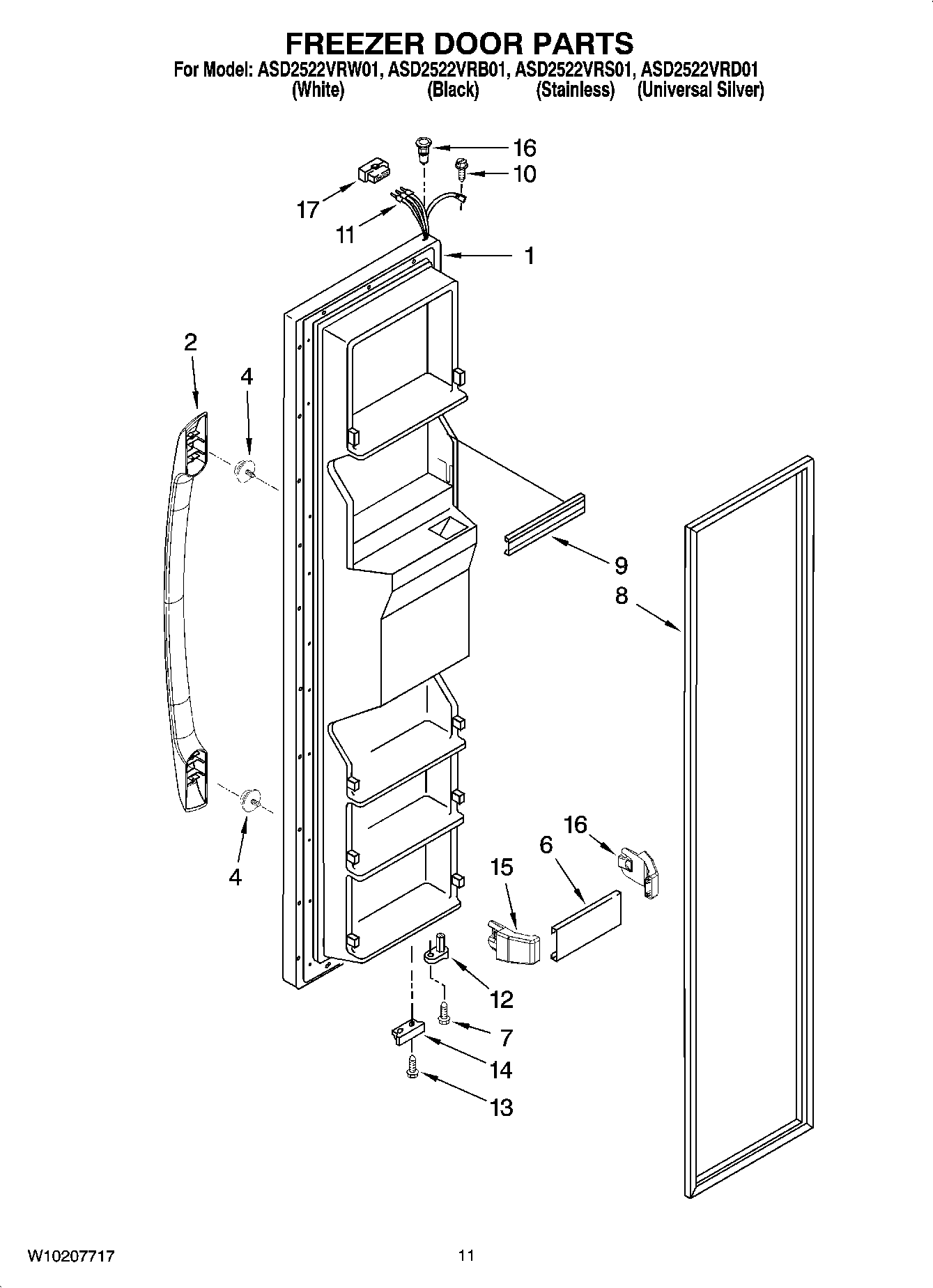

ASD2522VRD01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10173666
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1	MAY W10169600
1	MAY W10169599
2	MAY W10179169
2	MAY W10179171
4	MAY 2326016
6	Trim, Door (4)
7	MAY 3400012
8	Door Gasket, Magnetic (Repair) (Mist Beige)
8	Door Gasket, Magnetic (Repair) (Black)
9	MAY 2209681
10	MAY 488500
11	Wire Harness
12	MAY 2182179
13	MAY 489420
14	MAY 2206629B
14	MAY 2206629
15	End Cap (8)
16	THIMBLE
17	Connector
