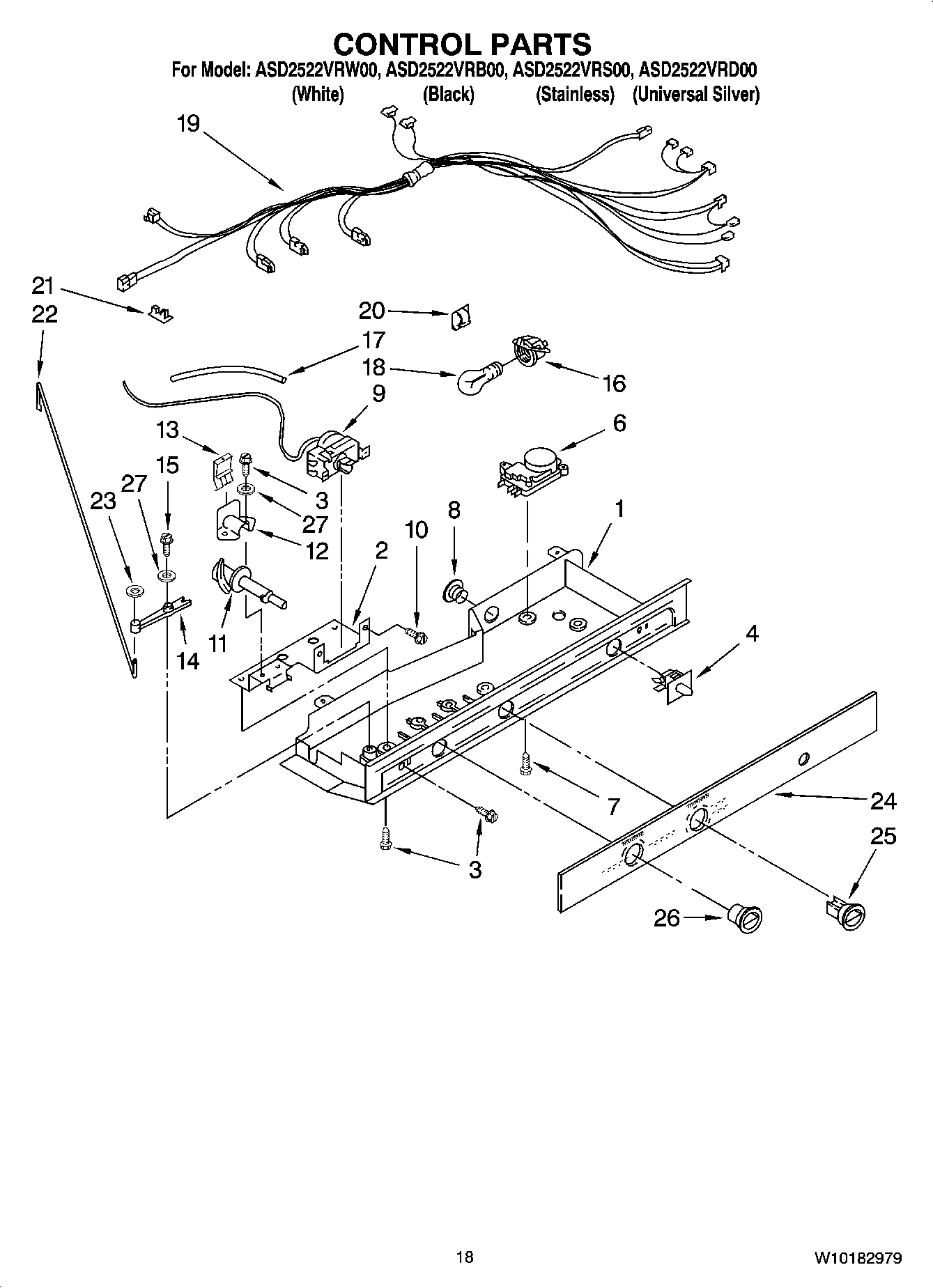

ASD2522VRS00 11 – CONTROL PARTS

ASD2522VRS00 11 – CONTROL PARTS

Written by

in

ASD2522VRS00 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2200137
2	MAY 1110629
3	Screw
4	MAY 2149705
6	MAY 2188375
7	Screw
8	MAY 940014
9	MAY 2198202
10	Screw
11	MAY 2182195
12	MAY 1110560
13	Damper Control
14	MAY 1110559
15	MAY 627068
16	Socket, Light
17	TUBE-BARRIER, THERMOSTAT
18	MAY 527949
19	MAY 2206512
20	MAY 1115374
21	Clip-Wiring
22	MAY 1123960
23	MAY 489285
24	MAY W10127380
25	Thermostat knob
26	MAY 2197871
27	Spring Washer
