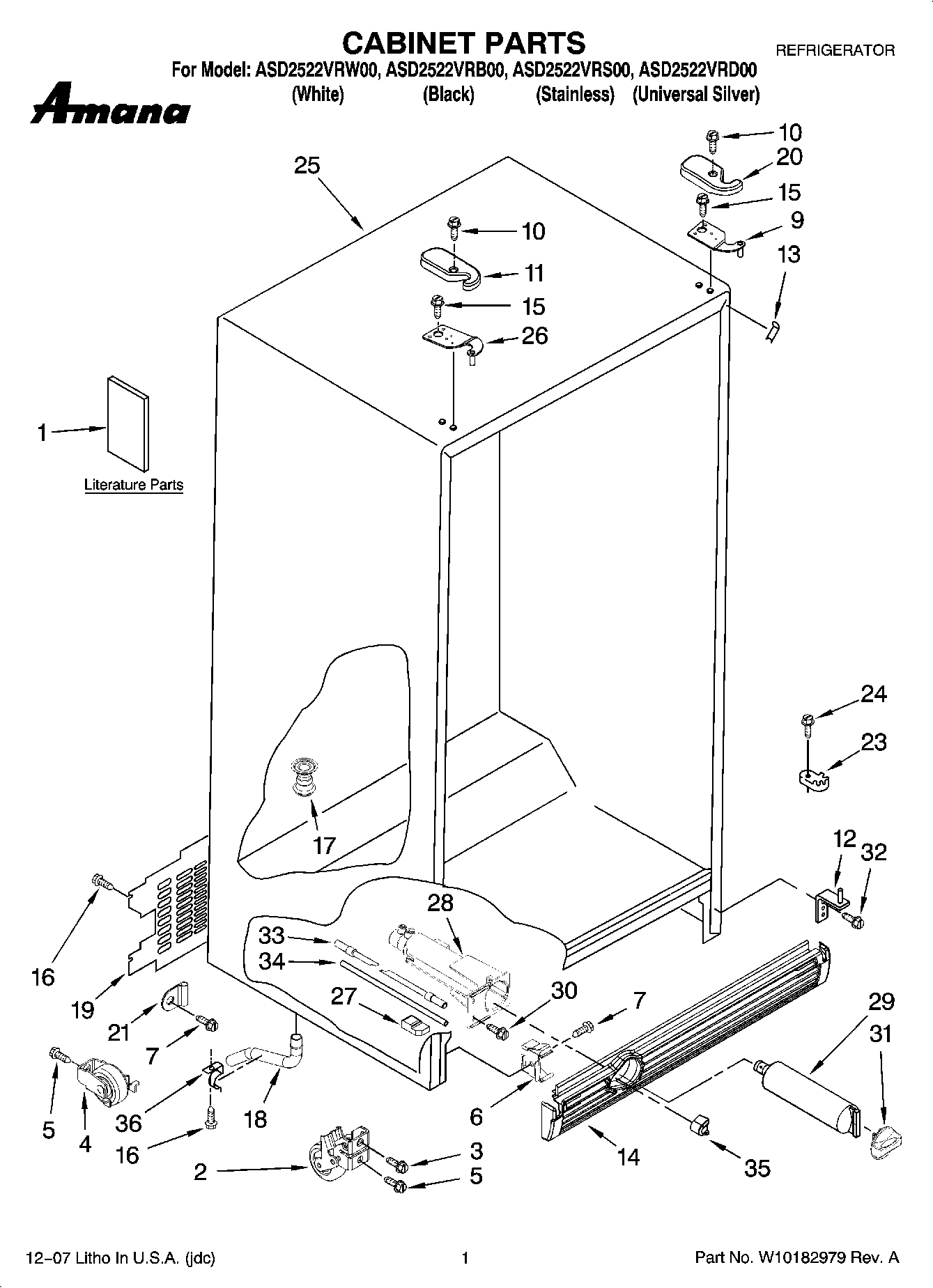

ASD2522VRW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10142157
1	MAY W10162442
1	MAY W10169610
1	Instruction Sheet- Door Removal
1	MAY 628370
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
9	HINGE TOP RC
10	MAY 8281227
11	HINGE COVER FC (WHITE)
11	HINGE COVER FC (BLACK)
12	Hinge Bottom
13	MAY 2304848
13	MAY 2304846
14	MAY 2260500W
14	MAY 2260500B
15	MAY 489497
16	Screw (3)
17	MAY 2304888
18	Extension Tube
19	MAY 2188735
20	HINGE COVER RC (WHITE)
20	HINGE COVER RC (BLACK)
21	MAY 549193
23	MAY 2155311
24	MAY 489483
26	HINGE TOP, FC
27	Block, Housing Support
28	MAY 2260507
29	MAY 4396841
30	MAY 489500
31	MAY 2260502W
31	MAY 2260502B
32	Screw (4)
33	MAY 2304708
34	MAY 2319867
35	MAY 2260503W
35	Button, Filter (Black)
36	MAY 1108439
