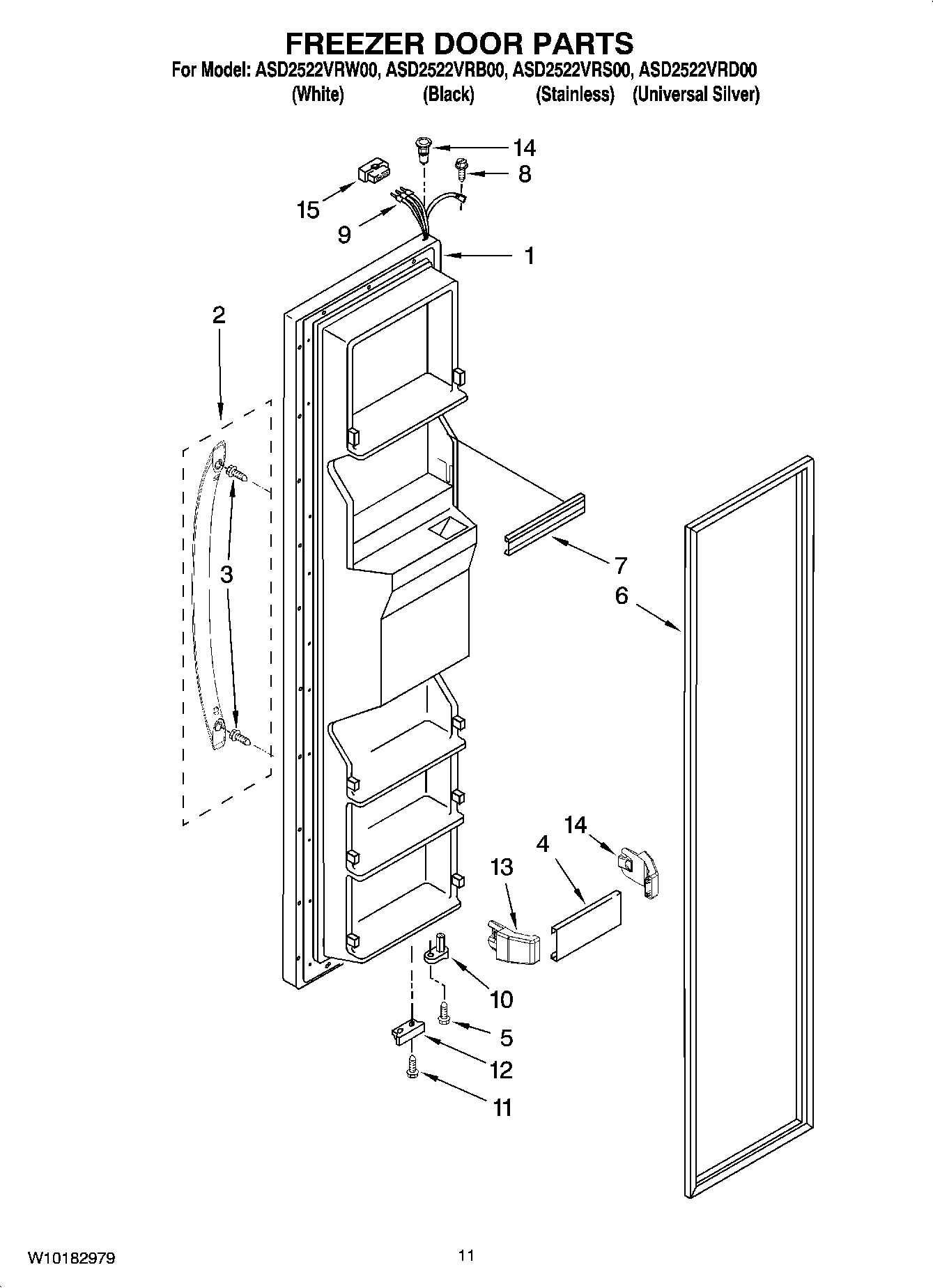

ASD2522VRW00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10173666
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1	MAY W10169600
1	MAY W10169599
2	MAY W10119666
2	MAY W10119668
3	MAY 2326016
4	Trim, Door (4)
5	MAY 3400012
6	Door Gasket, Magnetic (Repair) (Mist Beige)
6	Door Gasket, Magnetic (Repair) (Black)
7	MAY 2209681
8	MAY 488500
9	Wire Harness
10	MAY 2182179
11	MAY 489420
12	MAY 2206629B
12	MAY 2206629
13	End Cap (8)
14	THIMBLE
15	Connector
