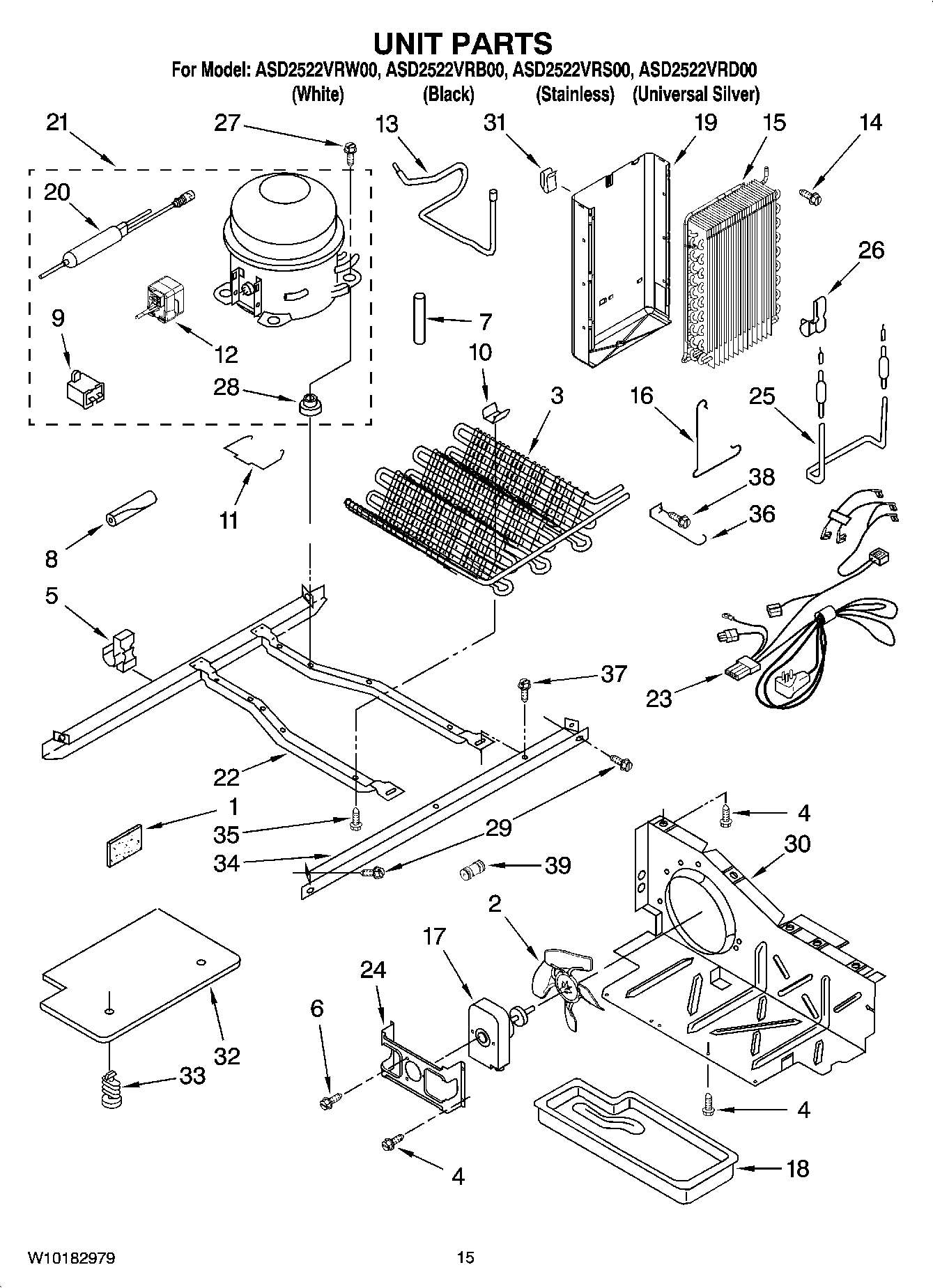

ASD2522VRW00 09 – UNIT PARTSadmin2025-04-26T08:55:46+00:00ASD2522VRW00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| Valve, Access (1/2``) |
| MAY 876764 |
| VALVE, ACCESS (1/4``) |
| Valve, Access (5/16``) |
| VALVE, ACCESS (3/8``) |
| Valve, Access (5/8``) |
| Valve, Access (3/4``) |
| 1 | SEALER, INSULATION |
| 2 | MAY 2225834 |
| 3 | Condenser Assembly (Also Order 7) |
| 4 | Screw (3) |
| 5 | Clip, Wire |
| 6 | MAY 8533993 |
| 7 | Bushing, Compressor |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | CAPACITOR |
| 10 | MAY 2216914 |
| 11 | STRAP, BALE |
| 12 | MAY 2313162 |
| 13 | MAY 2313230 |
| 14 | MAY 489478 |
| 15 | Evaporator |
| 16 | Clip |
| 17 | Fan, Motor |
| 18 | MAY 1105523 |
| 19 | Heat Shield (Includes 26) |
| 20 | Drier |
| 20 | MAY 2319825 |
| 21 | MAY W10140971 |
| 22 | MAY 2304904 |
| 23 | MAY 4389205 |
| 24 | MAY 2181929 |
| 25 | MAY 2323198 |
| 26 | MAY 2304287 |
| 27 | MAY 489373 |
| 28 | Grommet (4) |
| 29 | MAY 489340 |
| 30 | MAY 2196202 |
| 31 | MAY 2155547 |
| 32 | Unit Cover, Bottom |
| 33 | MAY 489396 |
| 34 | MAY 2305374 |
| 35 | MAY 8281232 |
| 36 | MAY 2260517 |
| 37 | MAY 489427 |
| 38 | MAY 488649 |
| 39 | Connector, Water |
