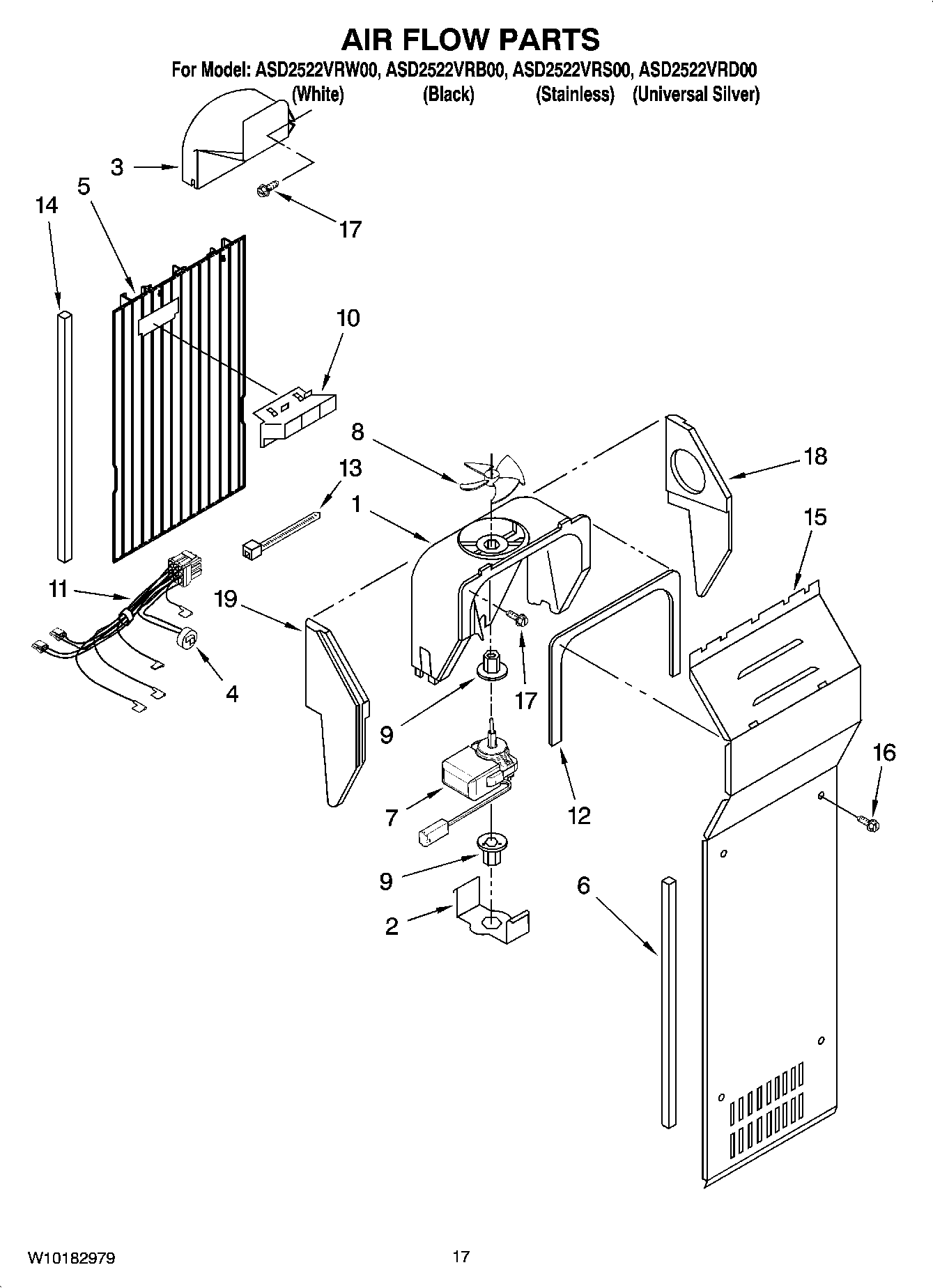

ASD2522VRW00 10 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2161231
4	MAY 2321799
5	MAY 2203593
6	Gasket
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	GROMMET, MOTOR
10	MAY 2182146
11	Harness, Fan Evaporator (Includes 4)
12	Gasket, Fan Scroll
13	Wire Tie
14	MAY 2203876
15	MAY 2203841
16	MAY 8281159
17	MAY 489478
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
