ASD2522WEB00 10 – AIR FLOW PARTS

ASD2522WEB00 10 – AIR FLOW PARTS

Written by

in

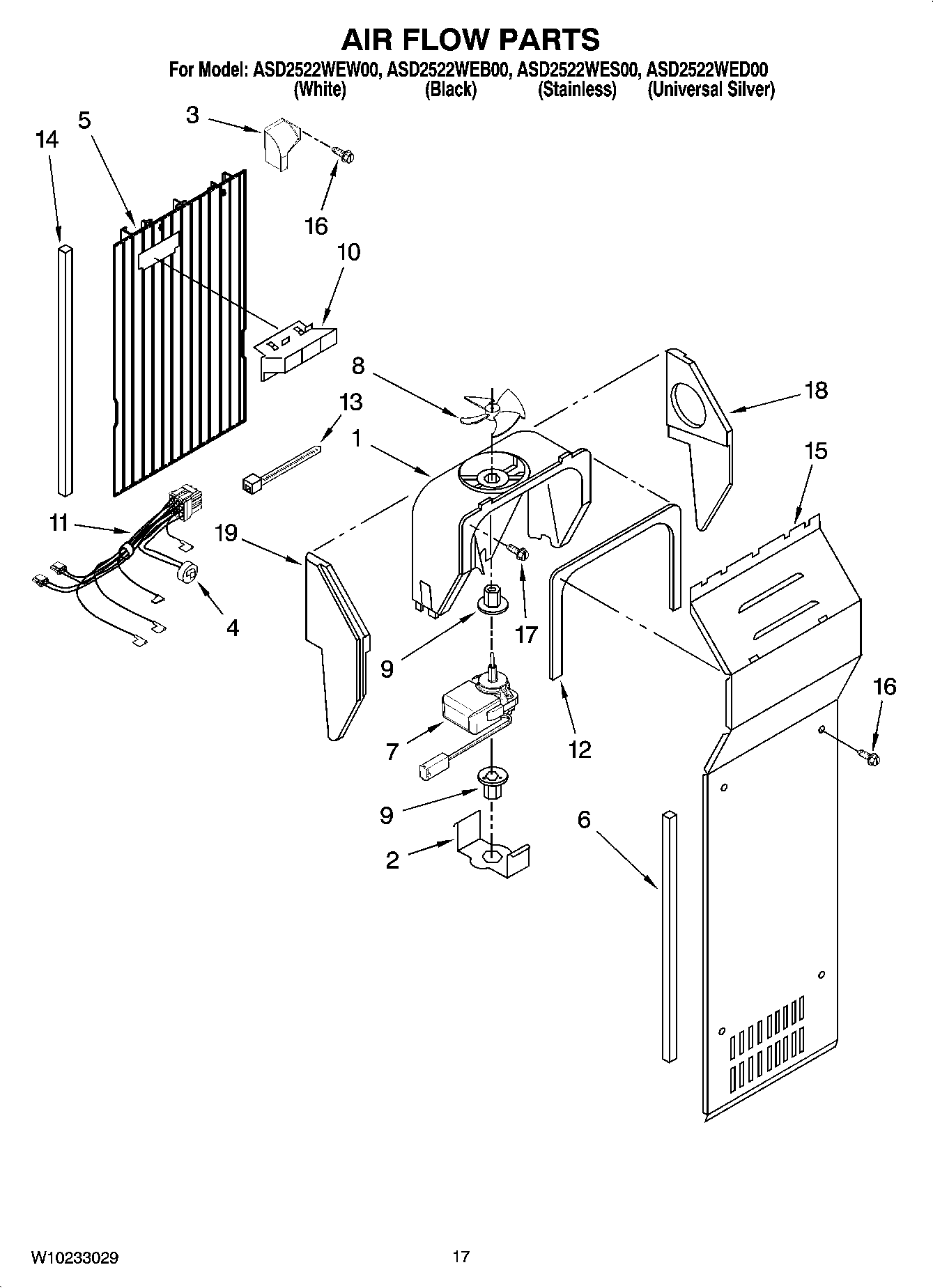

ASD2522WEB00 10 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2155590
3MAY 2161229
4MAY 2321799
5MAY 2203593
6Gasket
7MAY 2315549
8Blade, Fan (Evaporator)
9GROMMET, MOTOR
10MAY 2182146
11Harness, Fan Evaporator (Includes 4)
12Gasket, Fan Scroll
13Wire Tie
14MAY 2203876
15MAY 2203841
16MAY 8281159
17MAY 489478
18SUPPORT, FAN SCROLL (RIGHT HAND)
19SUPPORT, FAN SCROLL (LEFT HAND)
