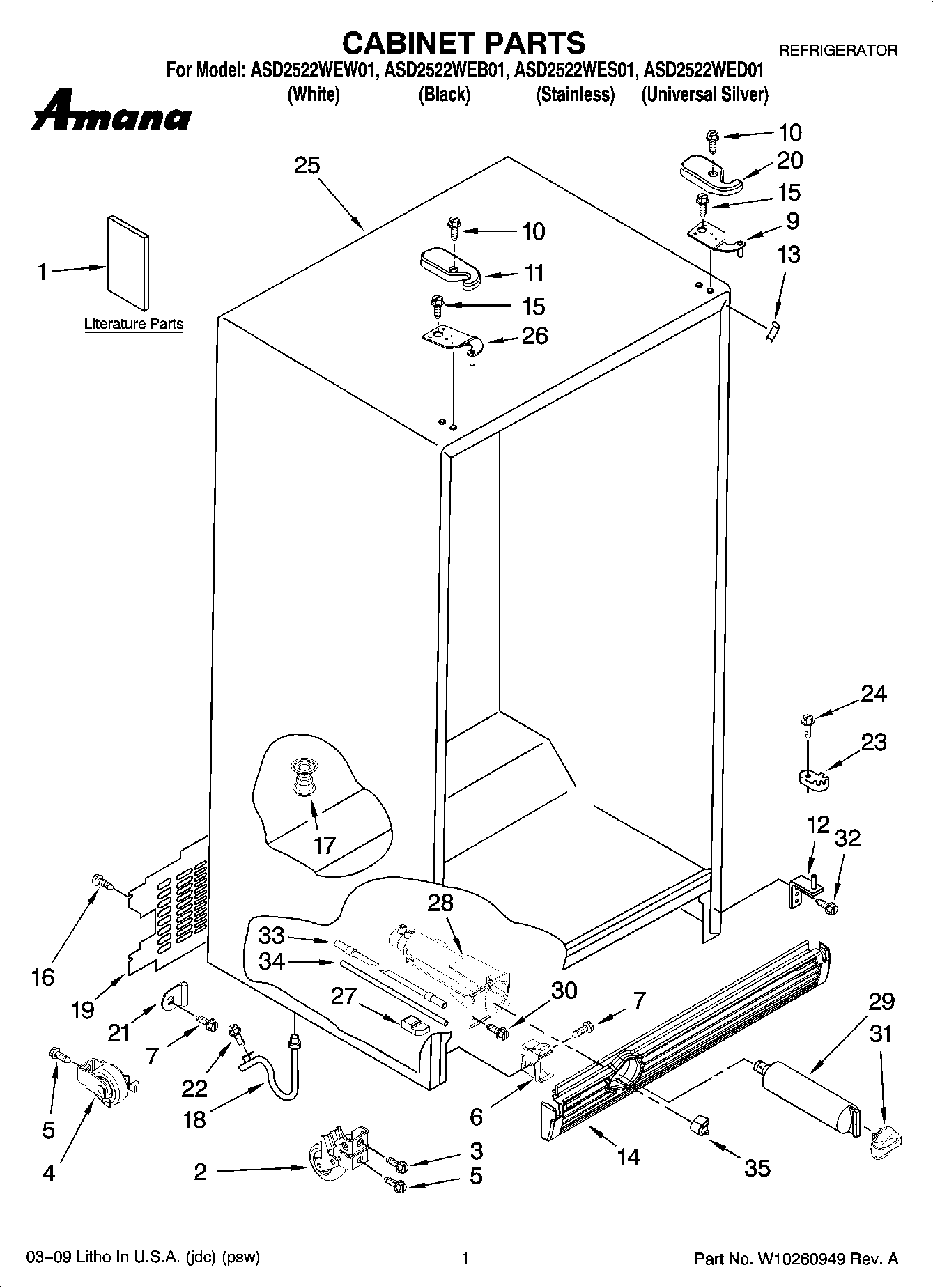

ASD2522WEB01 01 – CABINET PARTS

Products

Position	Product
1	Instruction Sheet- Door Removal
1	MAY W10162442
1	MAY W10204983
1	MAY 628370
1	MAY W10207728
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY W10146358
6	MAY 2155013
7	SCREW, 8 X 1/2
9	HINGE TOP RC
10	MAY 8281227
11	HINGE COVER FC (BLACK)
11	HINGE COVER FC (WHITE)
12	Hinge Bottom
13	MAY 2304846
13	MAY 2304848
14	MAY 2260500W
14	MAY 2260500B
15	MAY 489497
16	MAY W10001250
17	MAY 2304888
18	MAY W10153550
19	MAY 2188735
20	HINGE COVER RC (WHITE)
20	HINGE COVER RC (BLACK)
21	MAY 549193
22	MAY W10141645
23	MAY 2155311
24	MAY 489483
26	HINGE TOP, FC
27	Block, Housing Support
28	MAY 2260507
29	MAY 2313412
30	MAY 489500
31	MAY 2260502W
31	MAY 2260502B
32	SCREW
33	Tube, Filter Outlet
34	MAY 2319867
35	Button, Filter (Black)
35	MAY 2260503W
