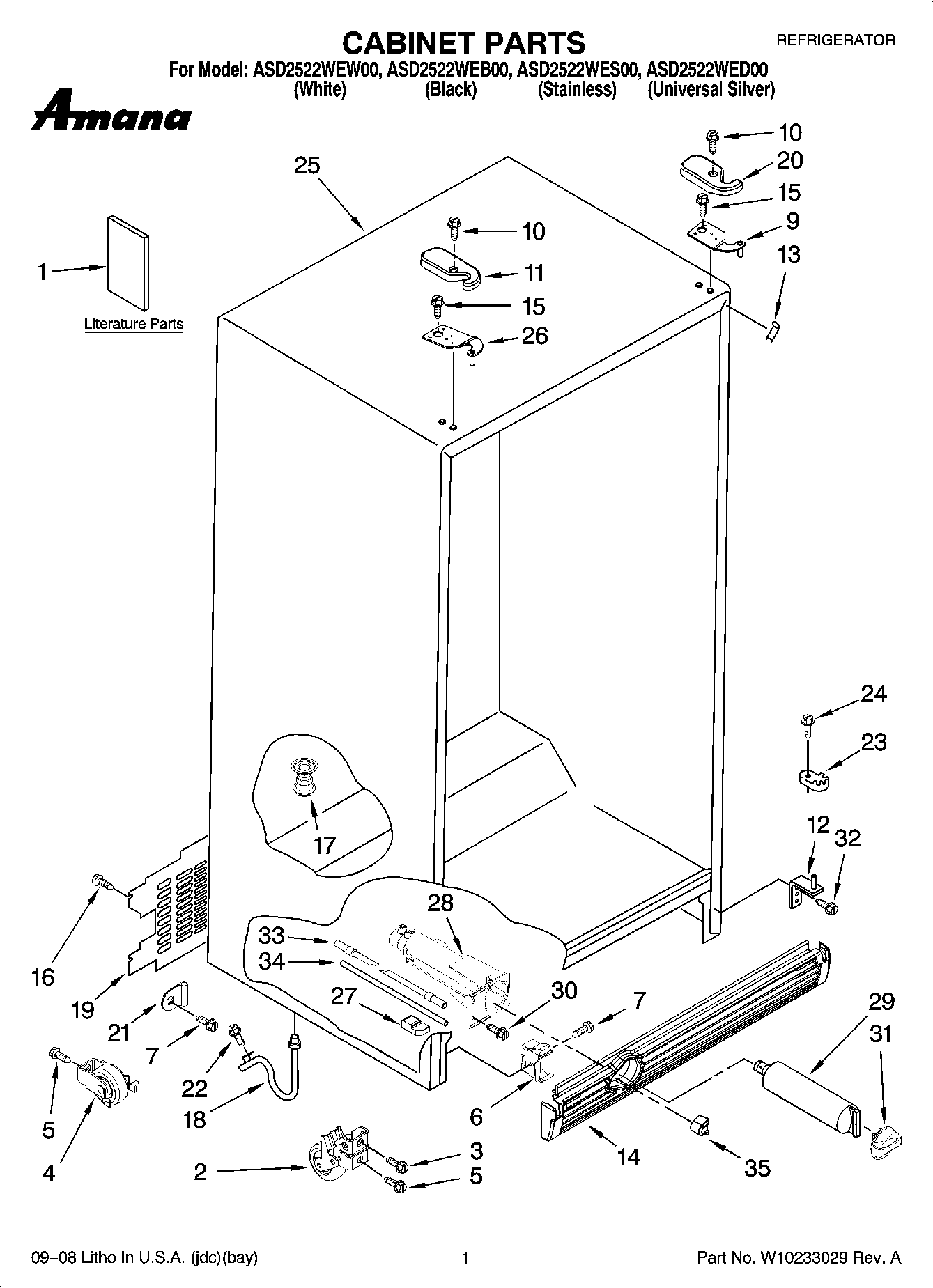

ASD2522WED00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10204983
1	Instruction Sheet- Door Removal
1	MAY W10142157
1	MAY W10162442
1	MAY 628370
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
9	HINGE TOP RC
10	MAY 8281227
11	HINGE COVER FC (BLACK)
11	HINGE COVER FC (WHITE)
12	Hinge Bottom
13	MAY 2304848
13	MAY 2304846
14	MAY 2260500W
14	MAY 2260500B
15	MAY 489497
16	Screw (3)
17	MAY 2304888
18	MAY W10153550
19	MAY 2188735
20	HINGE COVER RC (WHITE)
20	HINGE COVER RC (BLACK)
21	MAY 549193
22	MAY 489084
23	MAY 2155311
24	MAY 489483
26	HINGE TOP, FC
27	Block, Housing Support
28	MAY 2260507
29	MAY 2313412
30	MAY 489500
31	MAY 2260502W
31	MAY 2260502B
32	Screw (4)
33	Tube, Filter Outlet
34	MAY 2319867
35	Button, Filter (Black)
35	MAY 2260503W
