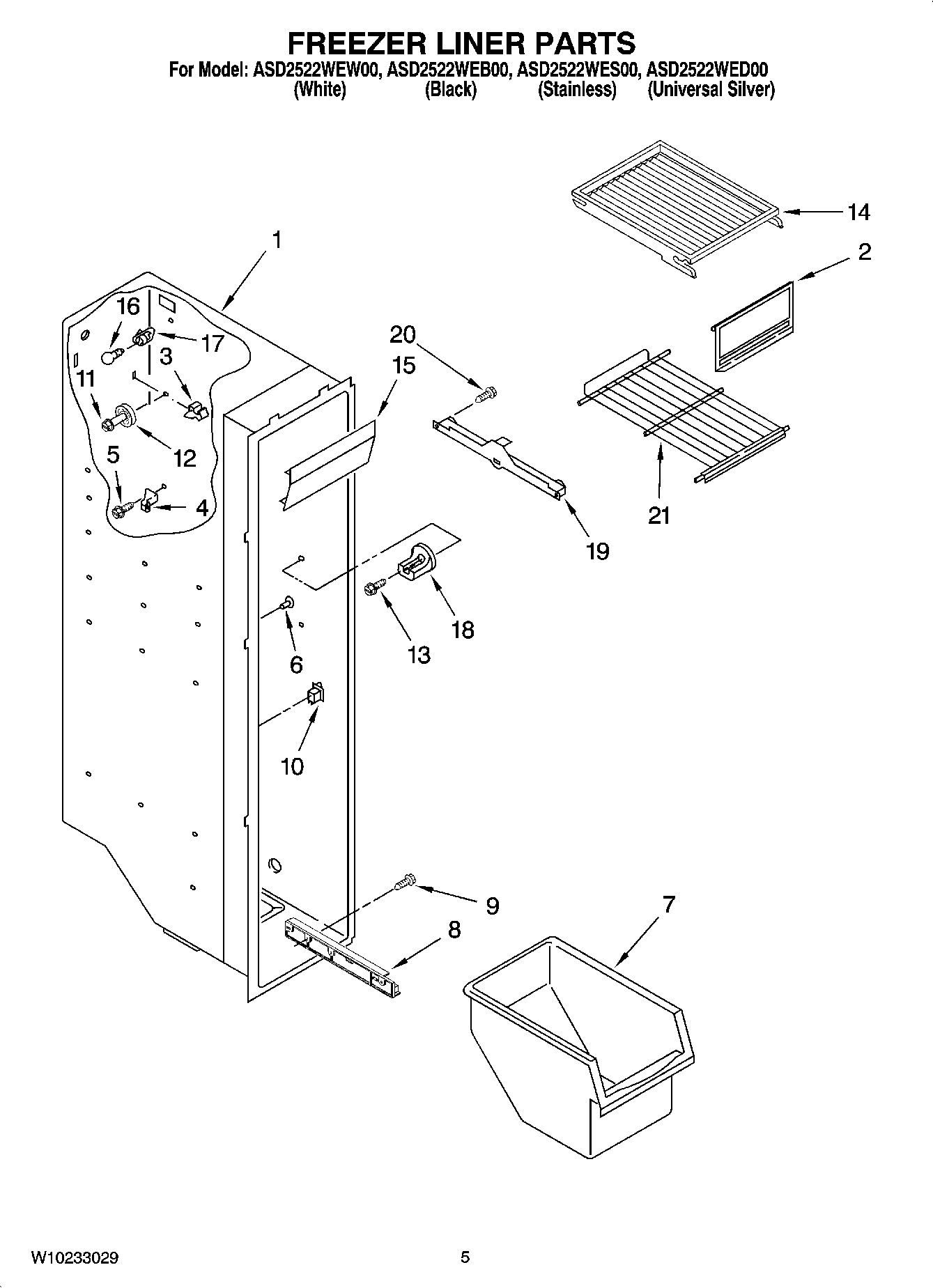

ASD2522WED00 04 – FREEZER LINER PARTS

ASD2522WED00 04 – FREEZER LINER PARTS

Written by

in

ASD2522WED00 04 – FREEZER LINER PARTS

Products

Position	Product
2	MAY 2171713K
3	Clip, Air Duct (2)
4	Support, Stud (4)
6	GROMMET
7	MAY 2182971
8	Slide, Basket (Right Side)
8	Slide, Basket (Left Side)
9	MAY W10004810
10	Switch, Rocker Arm
11	MAY 8281158
12	MAY 2196483
13	MAY 3400893
14	MAY 2171714K
15	MAY 2171705
16	MAY 527949
17	Socket, Light
18	MAY 2196207
19	Slide, Container (Left Side)
19	Slide, Container (Right Side)
20	MAY 489100
21	MAY 2174268K
21	Shelf (1)
