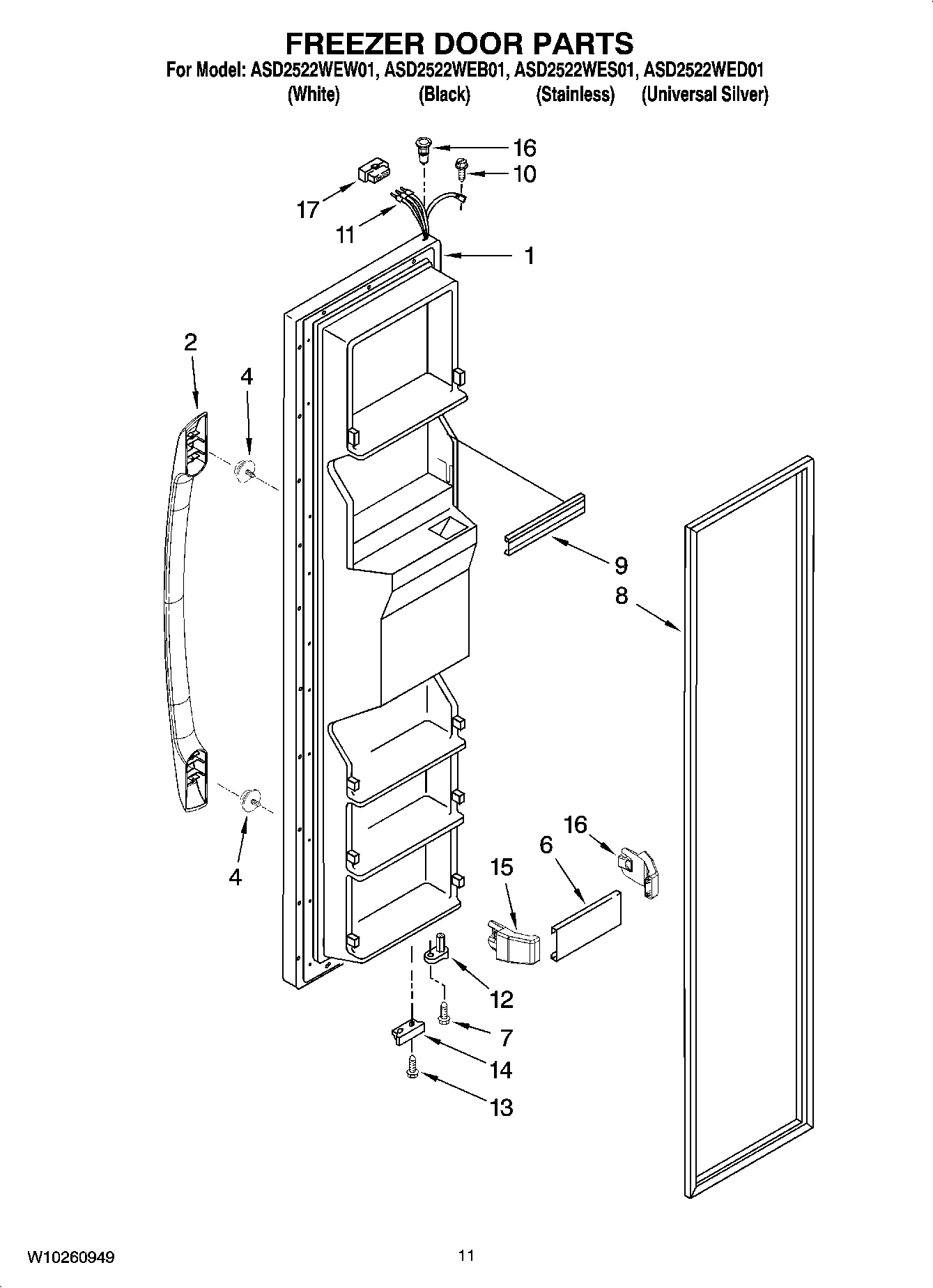

ASD2522WEW01 07 – FREEZER DOOR PARTS

ASD2522WEW01 07 – FREEZER DOOR PARTS

Written by

in

ASD2522WEW01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10204968B
1MAY W10204968S
1MAY W10204968US
1MAY W10204968W
2MAY W10179169
2MAY W10179171
4MAY W10129563
6Trim, Door (4)
7SCREW 10-32 X 1/2
8Door Gasket, Magnetic (Repair) (Mist Beige)
8Door Gasket, Magnetic (Repair) (Black)
9MAY 2209681
10SCREW
11Wire Harness
12MAY 2182179
13SCREW 10-32 X 1/2
14MAY 2206629B
14BRACKET, DOOR STOP (ZINC)
15End Cap (8)
16THIMBLE
17Connector
