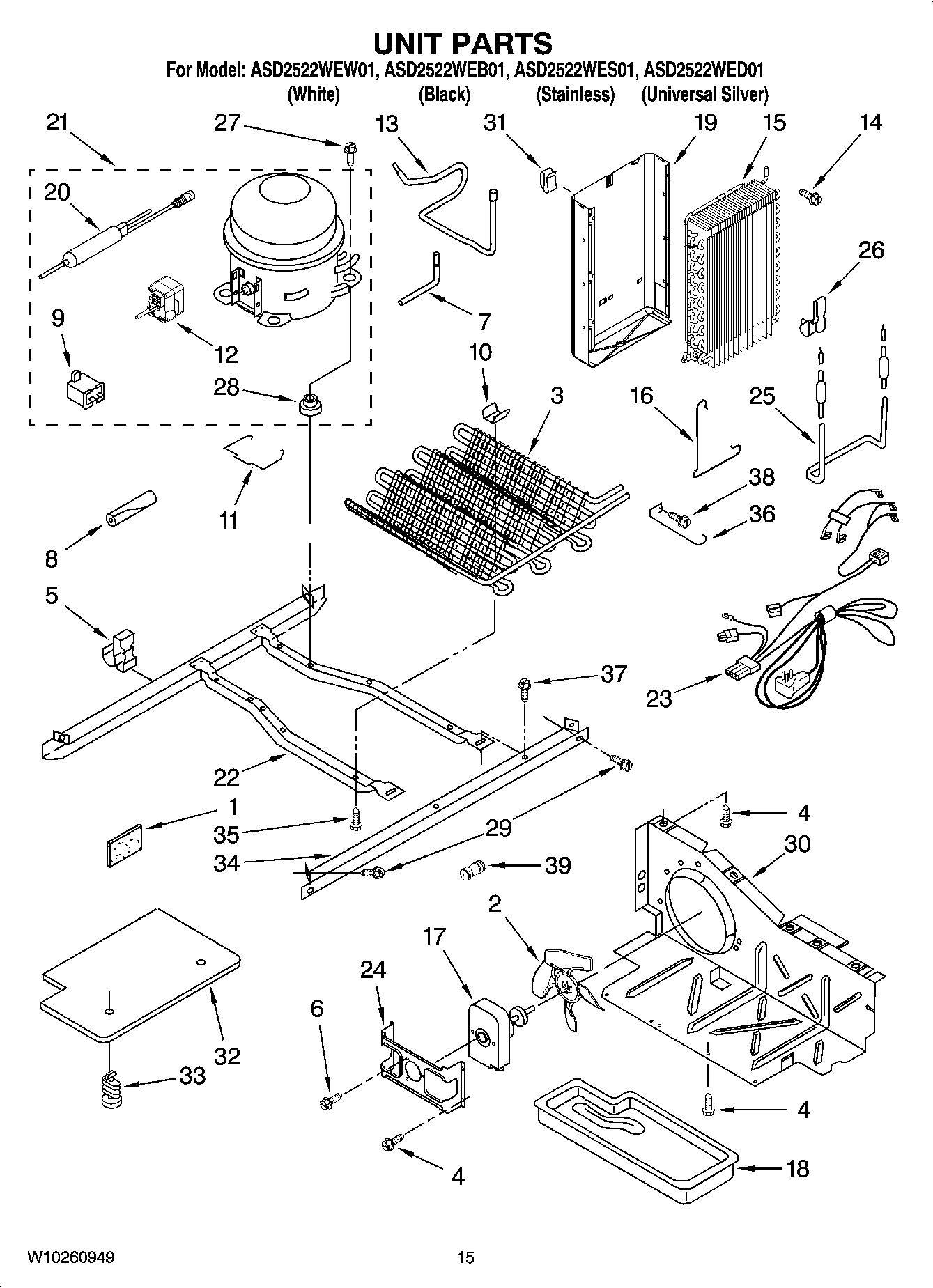

ASD2522WEW01 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	SEALER, INSULATION
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	MAY W10001250
5	Clip, Wire
6	MAY 8533993
7	Tube, Process
8	Sleeve, Pressure Switch Hose
9	Capacitator (Production)
10	MAY 2216914
11	MAY W10174384
12	Start-Device, Combination (Start Relay and Overload)
13	MAY W10177642
14	SCREW, 8 X 1/2
15	Evaporator
16	Clip
17	MOTOR, CONDENSOR
18	MAY 1105523
19	Heat Shield (Includes 26)
20	Drier
21	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
22	Unit Mounting Frame
23	Unit, Harness
24	MAY 2181929
25	MAY 2323198
26	MAY 2304287
27	MAY 489373
28	Grommet (Production)
29	MAY 489340
30	MAY 2196202
31	MAY 2155547
32	Unit Cover, Bottom
33	MAY 489396
34	Unit Mounting Rail
35	MAY 8281232
36	MAY 2260517
37	MAY W10146358
38	MAY 488649
39	Connector, Water
