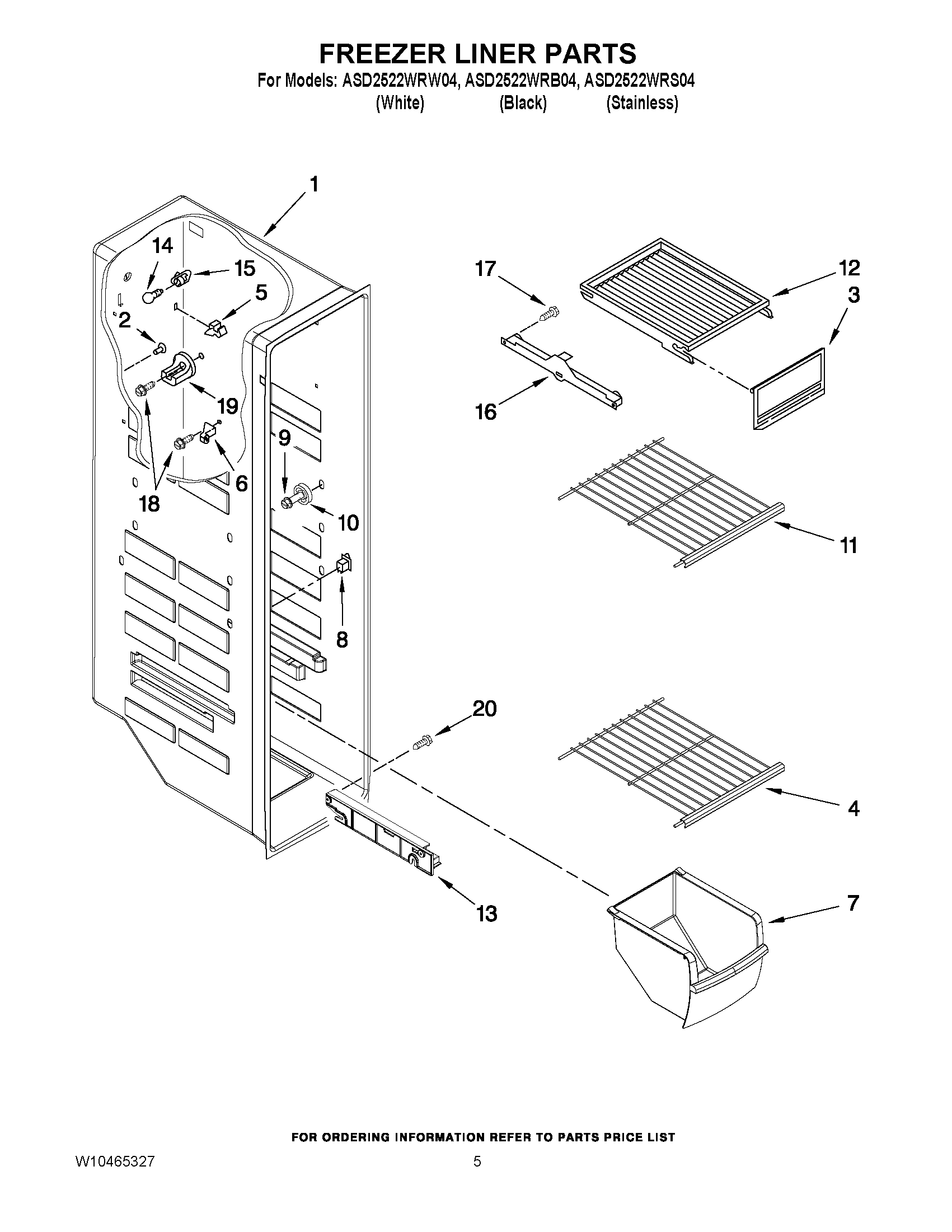

ASD2522WRB04 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2GROMMET
3DOOR, ICE COMP
4MAY 2174267
5MAY 2315163
6Support, Stud (4)
7MAY 2182971
8Switch, Rocker Arm
9MAY W10191952
10ASSEMBLY, SHELF STUD
11SHELF, SLIDE OUT
12MAY 2171714
13Slide, Basket (Right Side)
13Slide, Basket (Left Side)
14MAY W10311505
15Socket, Light
16Slide, Container (Right Side)
16Slide, Container (Left Side)
17MAY 489100
18SCREW 8-18 X 5/8
19MAY 2196207
20MAY W10004810
