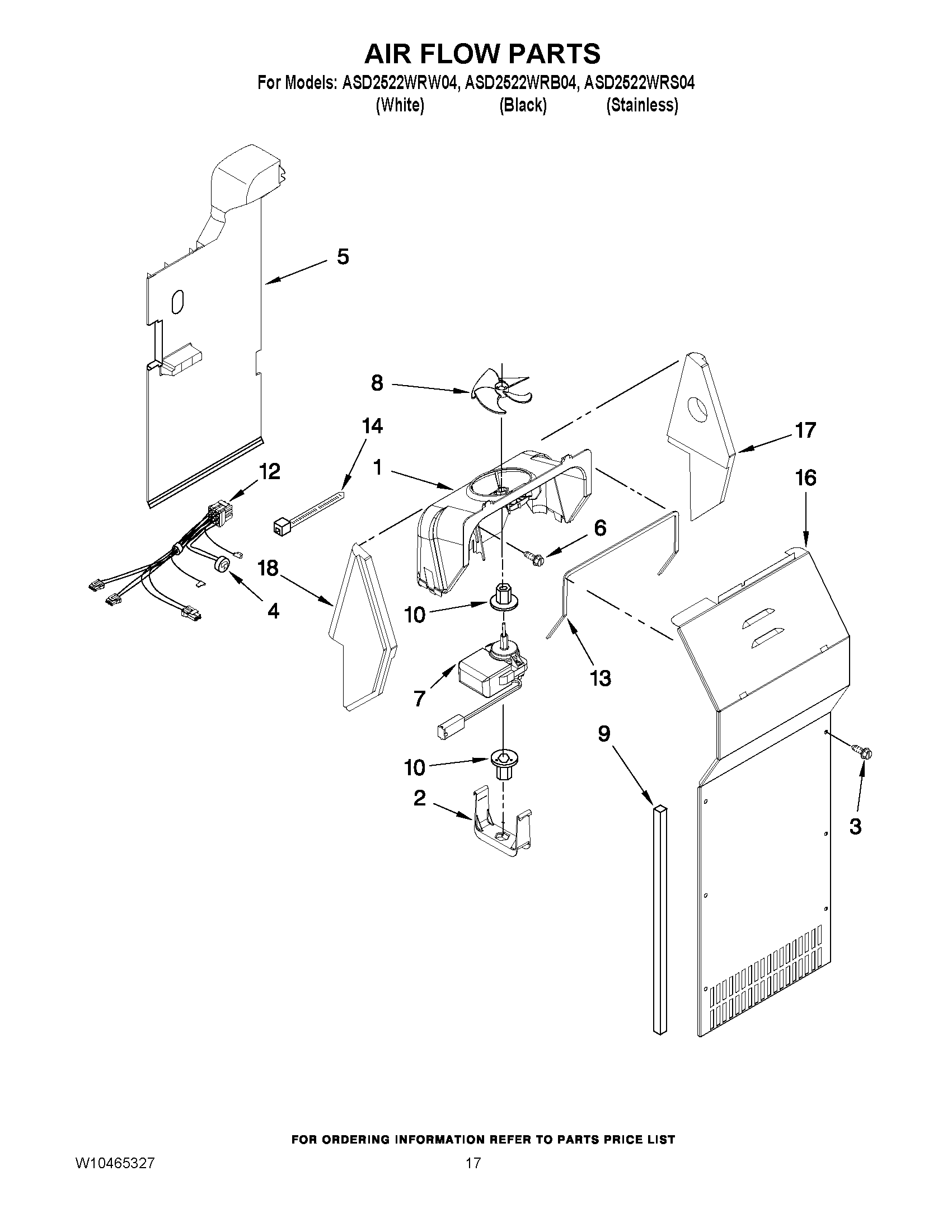

ASD2522WRB04 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	SCREW
4	MAY W10225581
5	AIR DUCT FREEZER
6	SCREW, 8 X 1/2
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	Gasket, Fan Scroll
14	Wire Tie
16	MAY 2203841
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
