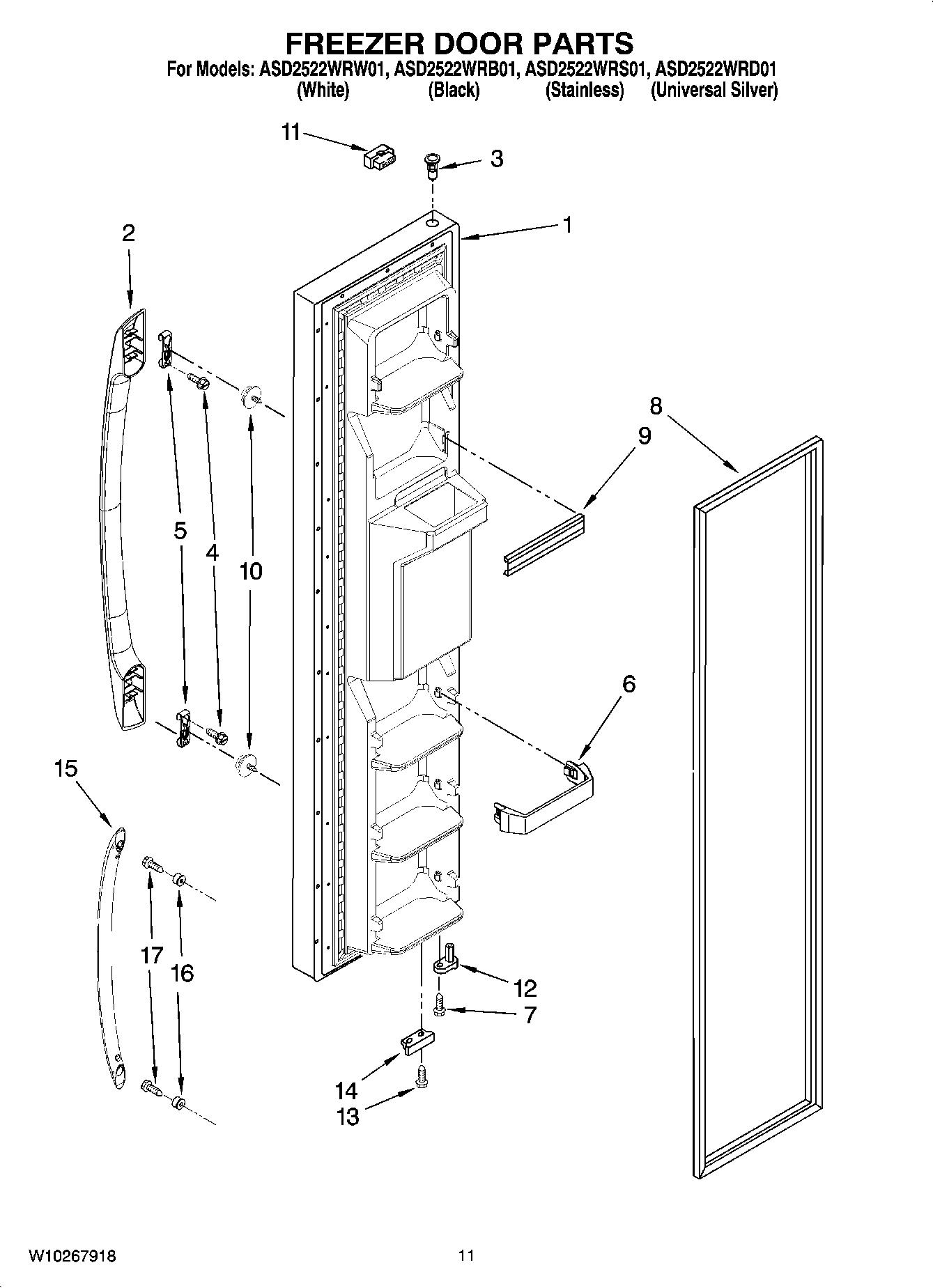

ASD2522WRD01 07 – FREEZER DOOR PARTS

ASD2522WRD01 07 – FREEZER DOOR PARTS

Written by

in

ASD2522WRD01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10234240
1	MAY W10203237
1	MAY W10203238
1	MAY W10234239
2	MAY W10119668
2	MAY W10179171
3	MAY 2308091
4	MAY 12990202
5	CLIP
6	Trim, Door (4)
7	MAY 3400012
8	MAY 2309533
8	Door Gasket, Magnetic (White)
9	MAY 2209681
10	MAY 2326016
11	Connector
12	MAY 2182179
13	MAY 489420
14	MAY 2206629B
14	MAY 2206629
15	W11690159 Whirlpool Handle
16	Stud
17	Screw
