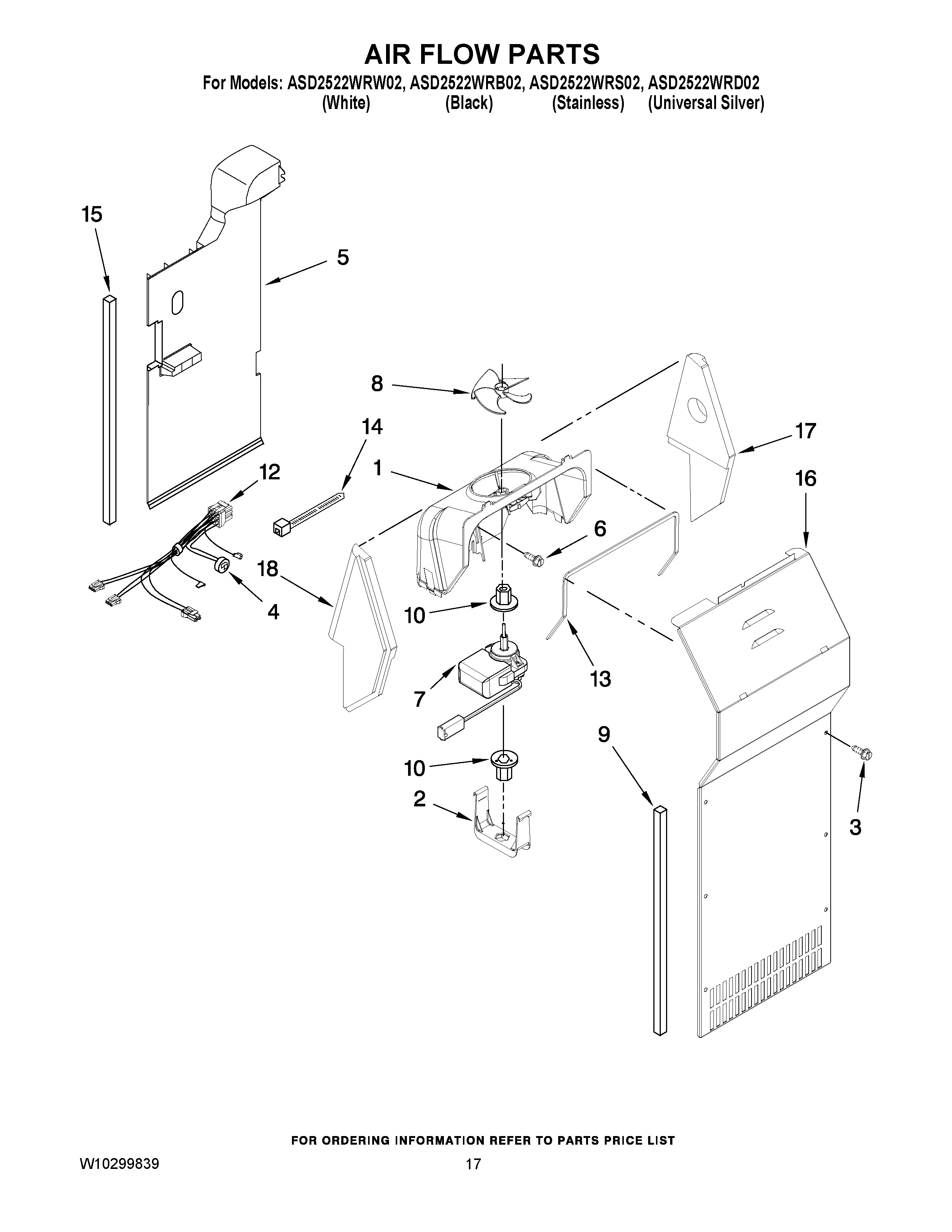

ASD2522WRD02 10 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2155590
3MAY 8281159
4MAY 2321799
5AIR DUCT FREEZER
6MAY 489478
7MAY W10131845
8Blade, Fan (Evaporator)
9Gasket
10GROMMET, MOTOR
12Harness, Fan Evaporator (Includes 4)
13Gasket, Fan Scroll
14Wire Tie
15MAY 2203876
16Cover, Evaporator (Includes 9)
17SUPPORT, FAN SCROLL (RIGHT HAND)
18SUPPORT, FAN SCROLL (LEFT HAND)
