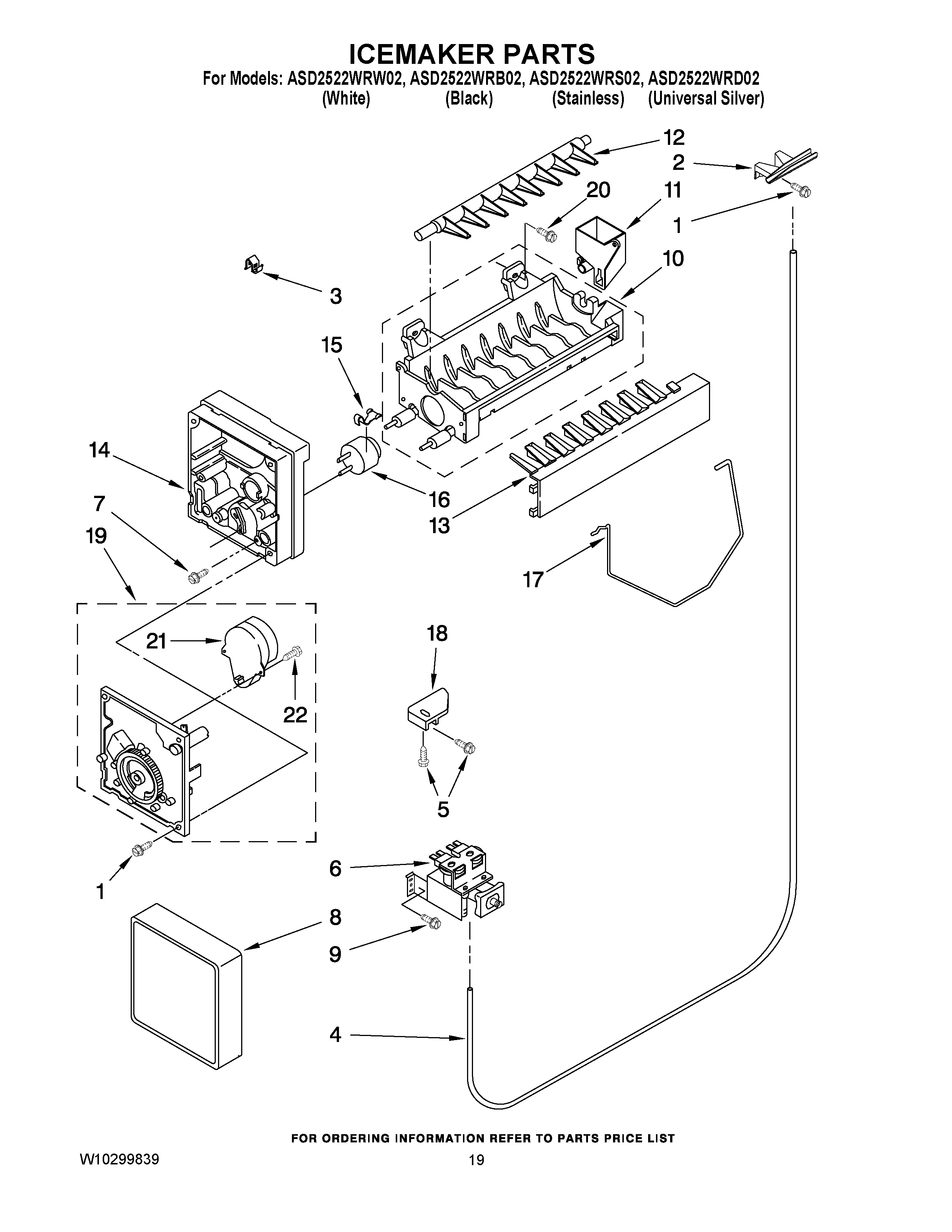

ASD2522WRD02 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2209774
3	Clip
4	MAY 2223137
5	MAY 489478
6	MAY 2188708
7	MAY 8533917
8	MAY 2174155
9	MAY 488649
10	MAY W10122527
11	MAY W10122561
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	MAY 2304354
18	MAY 628320
19	Module Assembly (Includes Items 23 and 24)
20	Screw
21	MAY 626683
22	MAY 489136
100	MAY W10190966
