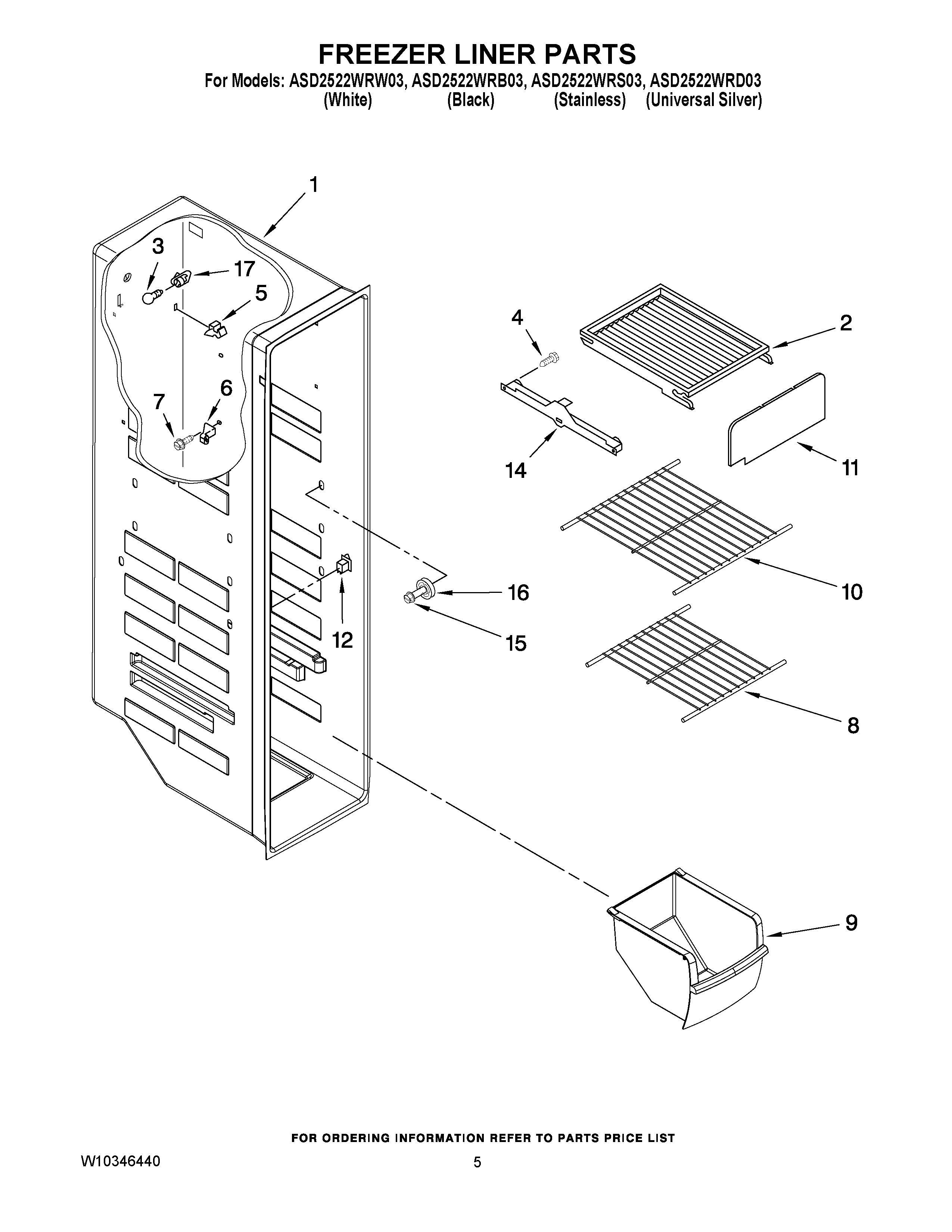

ASD2522WRD03 04 – FREEZER LINER PARTS

ASD2522WRD03 04 – FREEZER LINER PARTS

Written by

in

ASD2522WRD03 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714
3	MAY W10311505
4	MAY 489100
5	MAY 2315163
6	Support, Stud (4)
7	MAY 3400893
8	MAY 2174267
9	MAY 2182971
10	SHELF, SLIDE OUT
11	DOOR, ICE COMP
12	Switch, Rocker Arm
14	Slide, Container (Right Side)
14	Slide, Container (Left Side)
15	MAY W10191952
16	ASSEMBLY, SHELF STUD
17	Socket, Light
