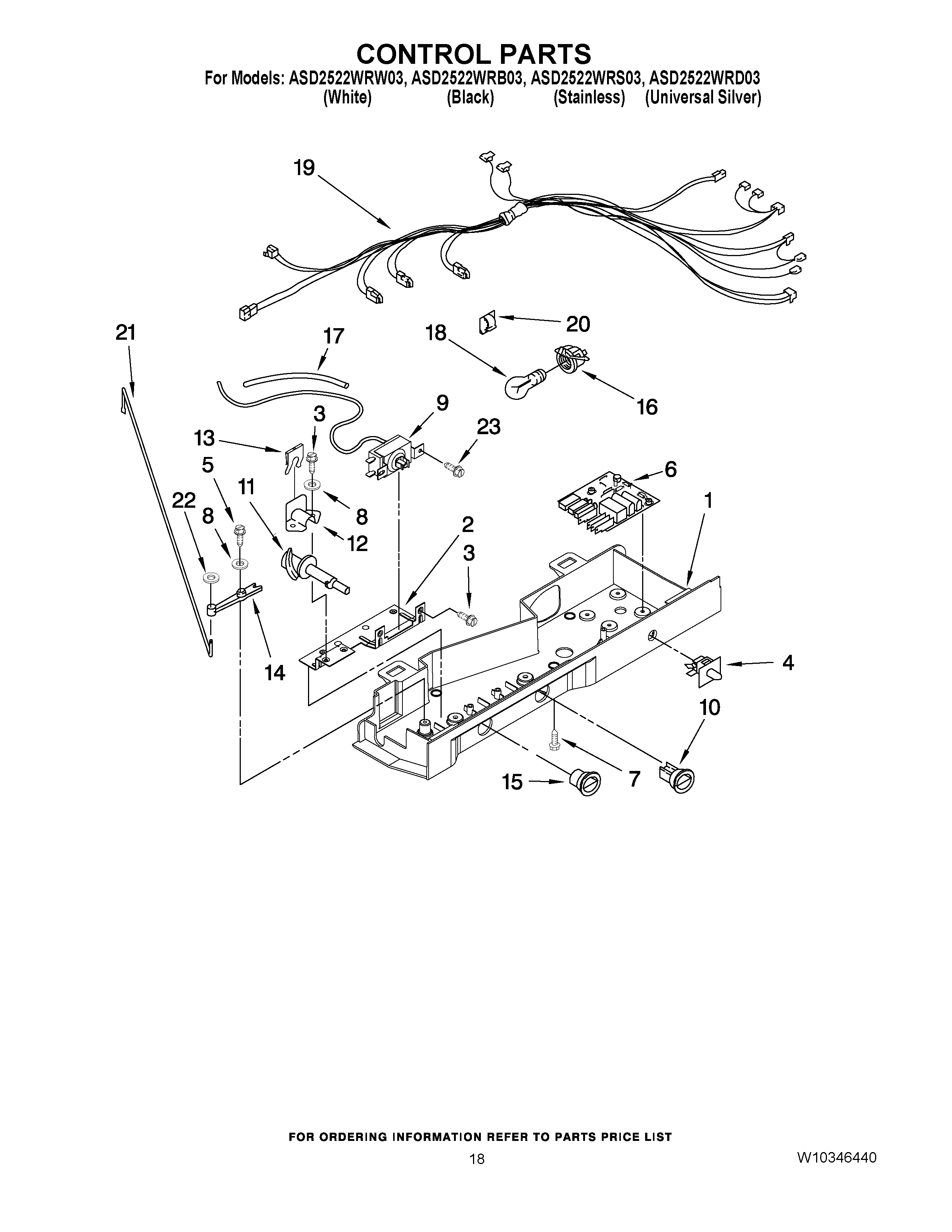

ASD2522WRD03 11 – CONTROL PARTS – Aparts

ASD2522WRD03 11 – CONTROL PARTS

Products

Position	Product
1	MAY W10159858
2	MAY 2311611
3	Screw
4	SWITCH, LIGHT
5	MAY 627068
6	Control Board Assembly
7	Screw
8	Spring Washer
9	MAY 2198202
10	KNOB, THERMOSTAT
11	MAY 2182195
12	MAY 1110560
13	Damper Control
14	MAY 1110559
15	KNOB, CONTROL
16	Socket, Light
17	TUBE-BARRIER, THERMOSTAT
18	MAY W10311505
19	MAY 2311632
20	MAY 1115374
21	MAY 2311631
22	MAY 489285
23	Screw
