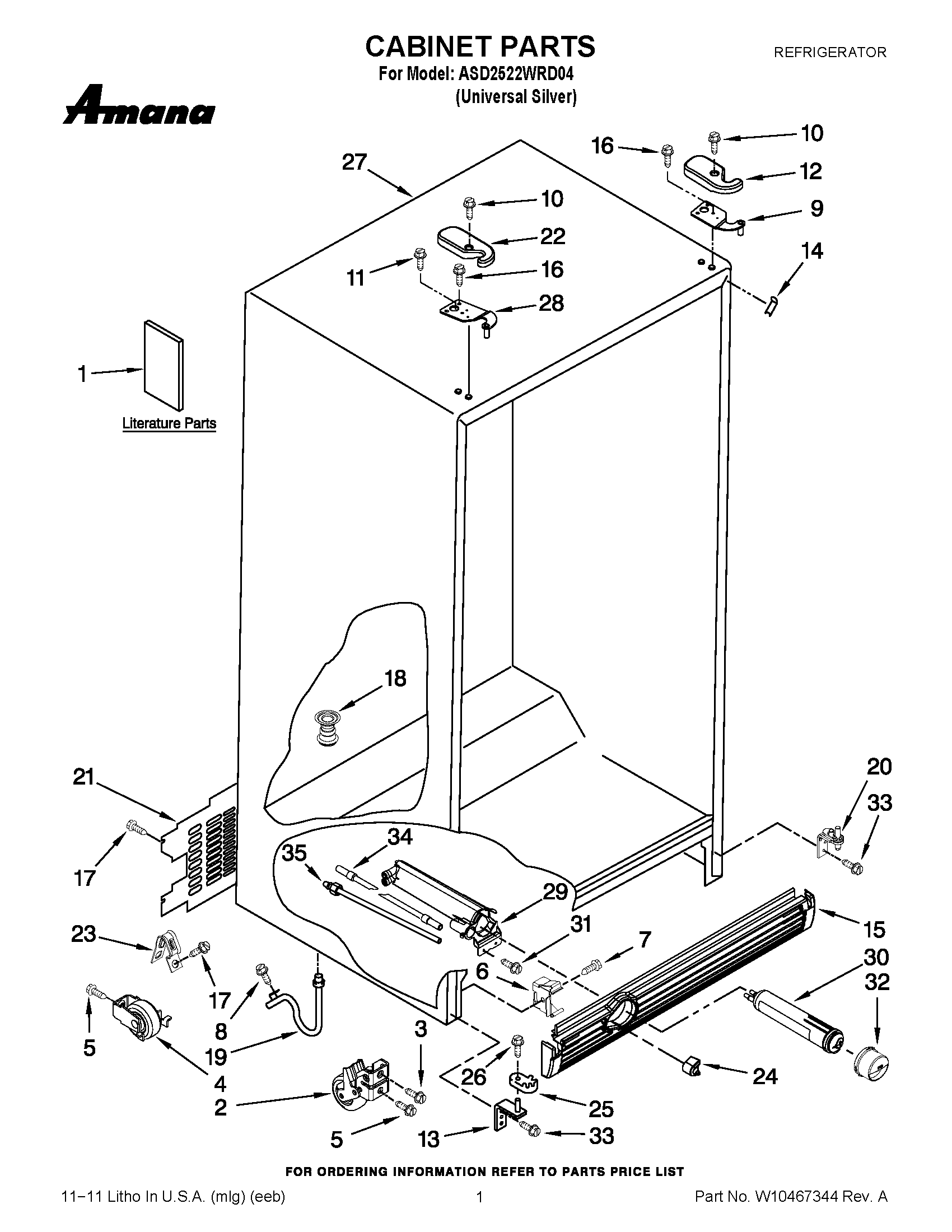

ASD2522WRD04 01 – CABINET PARTS

ASD2522WRD04 01 – CABINET PARTS

Written by

in

ASD2522WRD04 01 – CABINET PARTS

Products

Position	Product
1	MAY W10237701
1	MAY W10207987
1	MAY W10307453
1	MAY 628370
1	MAY W10305231
2	MAY 2174748
3	MAY 3400517
4	MAY W10250570
5	MAY W10146358
6	MAY 2155013
7	SCREW
8	MAY W10001250
9	HINGE TOP RC
10	MAY 8281227
11	MAY 8281149
12	HINGE COVER RC (BLACK)
13	Hinge Bottom
14	MAY 2304848
15	MAY 2303292B
16	MAY 489497
17	MAY W10141645
18	MAY 2304888
19	MAY W10153550
20	HINGE ASSEMBLY
21	MAY 2188735
22	HINGE COVER FC (BLACK)
23	MAY 549193
24	Button, Filter (Black)
25	MAY 2155311
26	MAY 489483
27	LINER (NOT A SERVICEABLE PART)
28	HINGE TOP, FC
29	Housing, Water Filter
30	MAY 4396841
31	MAY 489500
32	MAY 2260502B
33	SCREW
34	MAY W10281289
35	Tube, Filter Outlet
