ASD2522WRD04 04 – FREEZER LINER PARTS

ASD2522WRD04 04 – FREEZER LINER PARTS

Written by

in

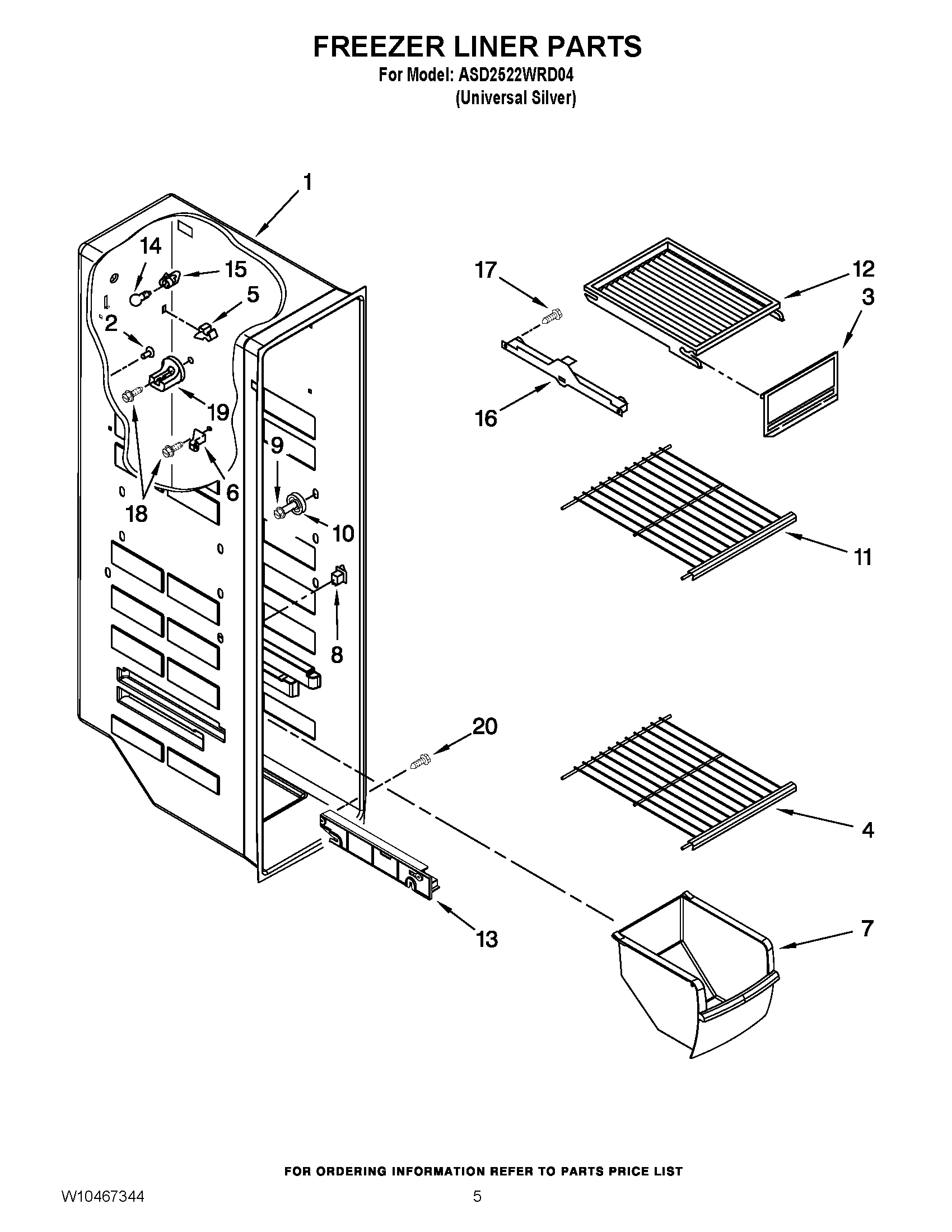

ASD2522WRD04 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2DOOR, ICE COMP
3GROMMET
4SCREW 8-18 X 5/8
5MAY 2315163
6Support, Stud (4)
7Switch, Rocker Arm
8MAY 2174267
9MAY 2182971
10ASSEMBLY, SHELF STUD
11Slide, Basket (Right Side)
11Slide, Basket (Left Side)
12MAY W10004810
13MAY 2196207
14MAY 2171714
15SHELF, SLIDE OUT
16MAY W10311505
17Socket, Light
18MAY W10191952
19Slide, Container (Right Side)
19Slide, Container (Left Side)
20MAY 489100
