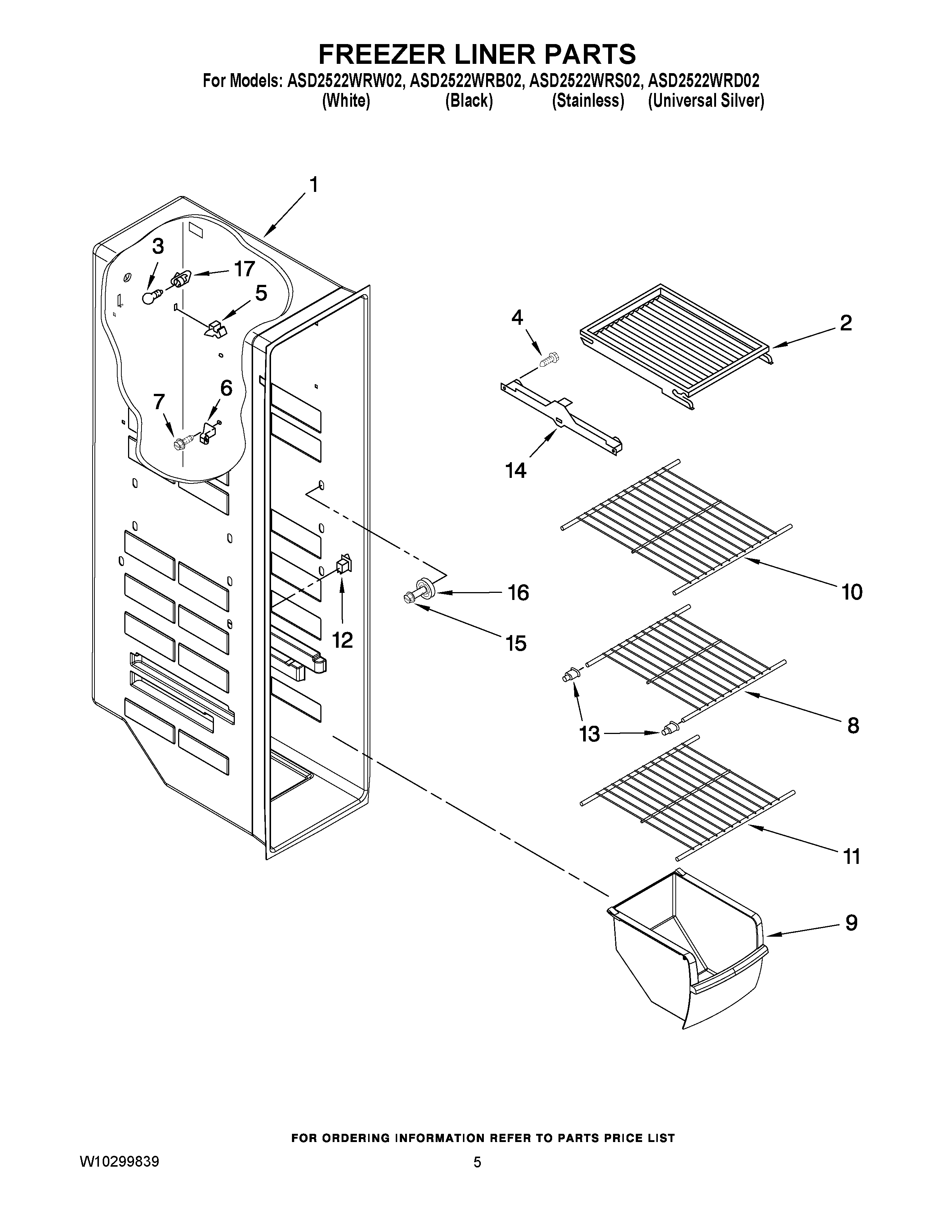

ASD2522WRS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714
3	MAY 527949
4	MAY 489100
5	Clip, Air Duct (2)
6	Support, Stud (4)
7	MAY 3400893
8	MAY W10276762
9	Freezer Bin
10	MAY W10276761
11	MAY W10276759
12	Switch, Rocker Arm
13	Cup, Shelf Mount
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY W10191952
16	ASSEMBLY, SHELF STUD
17	Socket, Light
