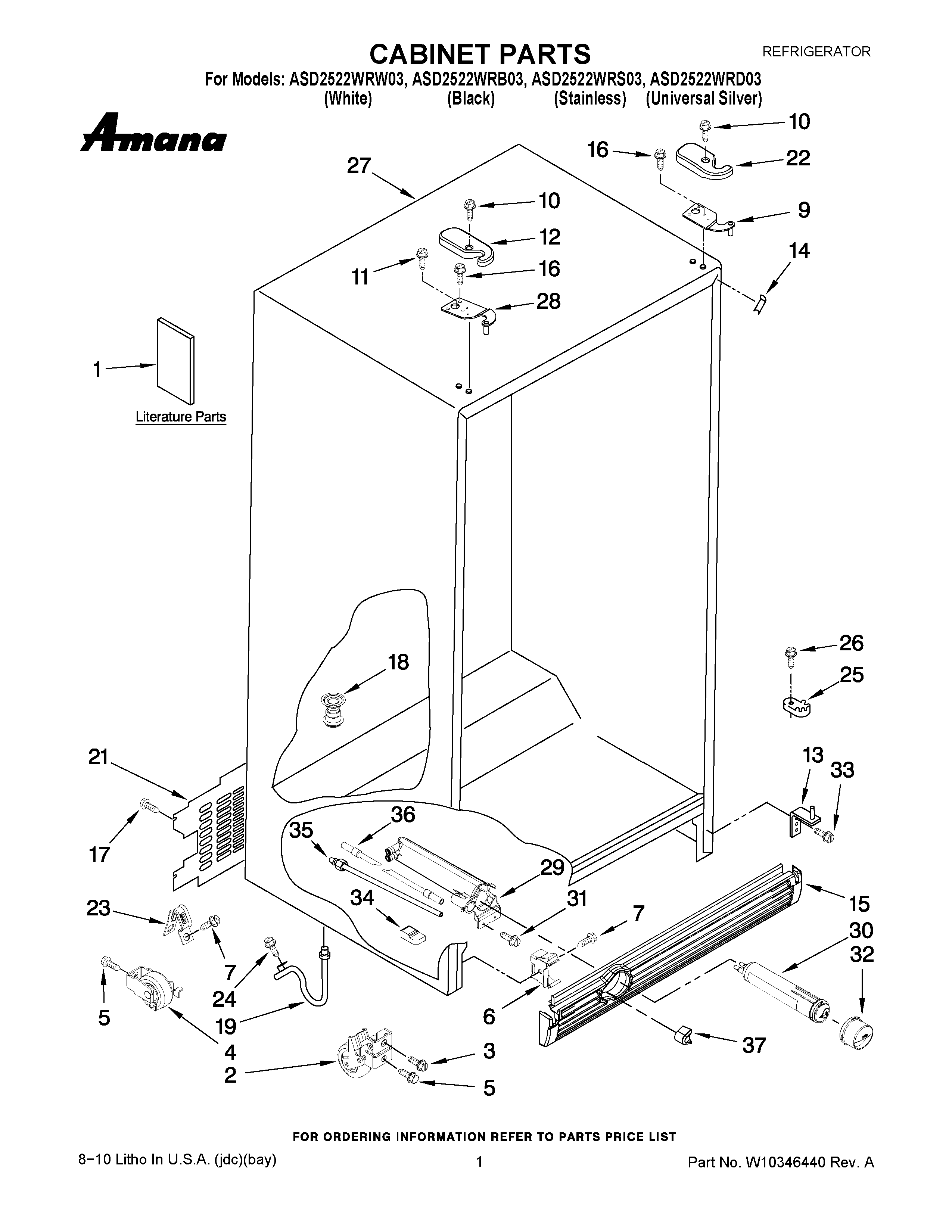

ASD2522WRS03 01 – CABINET PARTS

Products

Position	Product
1	MAY W10307453
1	MAY W10207987
1	MAY 628370
1	Instruction Sheet- Door Removal
1	MAY W10237701
2	MAY 2174748
3	MAY 3400517
4	MAY W10250570
5	MAY 489427
6	MAY 2155013
7	MAY 489478
9	HINGE TOP RC
10	MAY 8281227
11	MAY 8281149
12	HINGE COVER FC (WHITE)
12	HINGE COVER FC (BLACK)
13	Hinge Bottom
14	MAY 2304848
14	MAY 2304846
15	MAY 2303292W
15	MAY 2303292B
16	MAY 489497
18	MAY 2304888
19	MAY W10153550
21	MAY 2188735
22	HINGE COVER RC (BLACK)
22	HINGE COVER RC (WHITE)
23	MAY 549193
24	MAY 489084
25	MAY 2155311
26	MAY 489483
27	LINER (NOT A SERVICEABLE PART)
28	HINGE TOP, FC
29	Housing, Water Filter
30	MAY 4396841
31	MAY 489500
32	MAY 2260502W
32	MAY 2260502B
33	Screw (4)
34	Block, Housing Support
35	Tube, Filter Outlet
36	MAY W10281289
37	Button, Filter (Black)
37	MAY 2260503W
