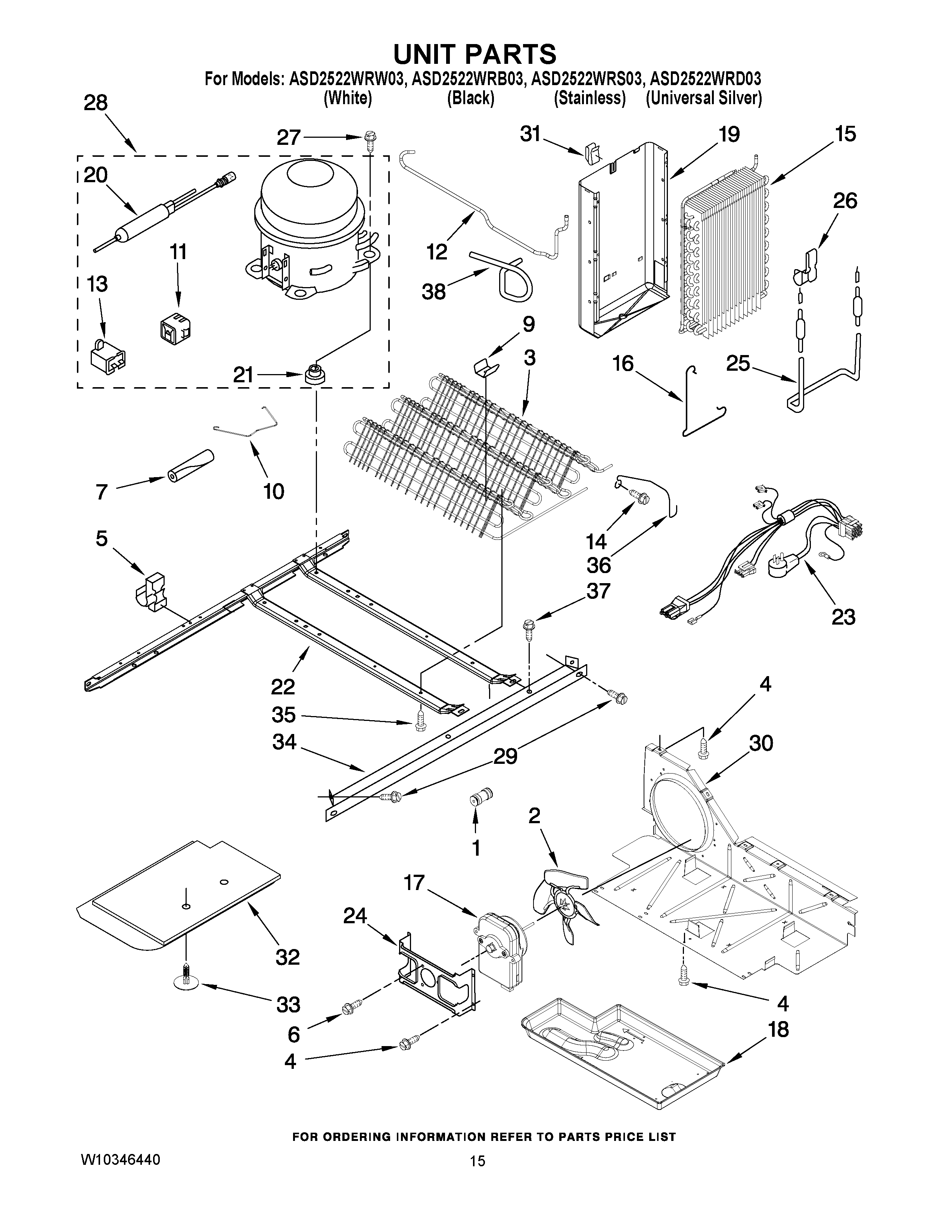

ASD2522WRS03 09 – UNIT PARTS

ASD2522WRS03 09 – UNIT PARTS

Written by

in

ASD2522WRS03 09 – UNIT PARTS

Products

PositionProduct
NIMAY 876764
NILINER (NOT A SERVICEABLE PART)
NIValve, Access (3/4“)
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
1CONNECTOR, WATER
2Fan, Blade
3Condenser Assembly (Also Order 7)
4Screw (3)
5Clip, Wire
6MAY 8533993
7Sleeve, Pressure Switch Hose
9MAY 2216914
10MAY W10174384
11Start-Device, Combination (Start Relay and Overload)
12MAY W10177642
13Capacitator (Production)
14MAY 489478
15Evaporator
17MOTOR, CONDENSOR
18MAY 1105523
19Heat Shield (Includes 26)
20Drier
21MAY 2183042
22Unit Mounting Frame
23Unit, Harness
24MAY 2181929
25MAY 2323198
26Clip
27MAY 489373
28Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29MAY 489340
30MAY 2196202
31MAY 2155547
32Unit Cover, Bottom
33MAY 489396
34MAY W10196323
35MAY 8281232
36MAY 2260517
37MAY 489427
38Tube, Process
