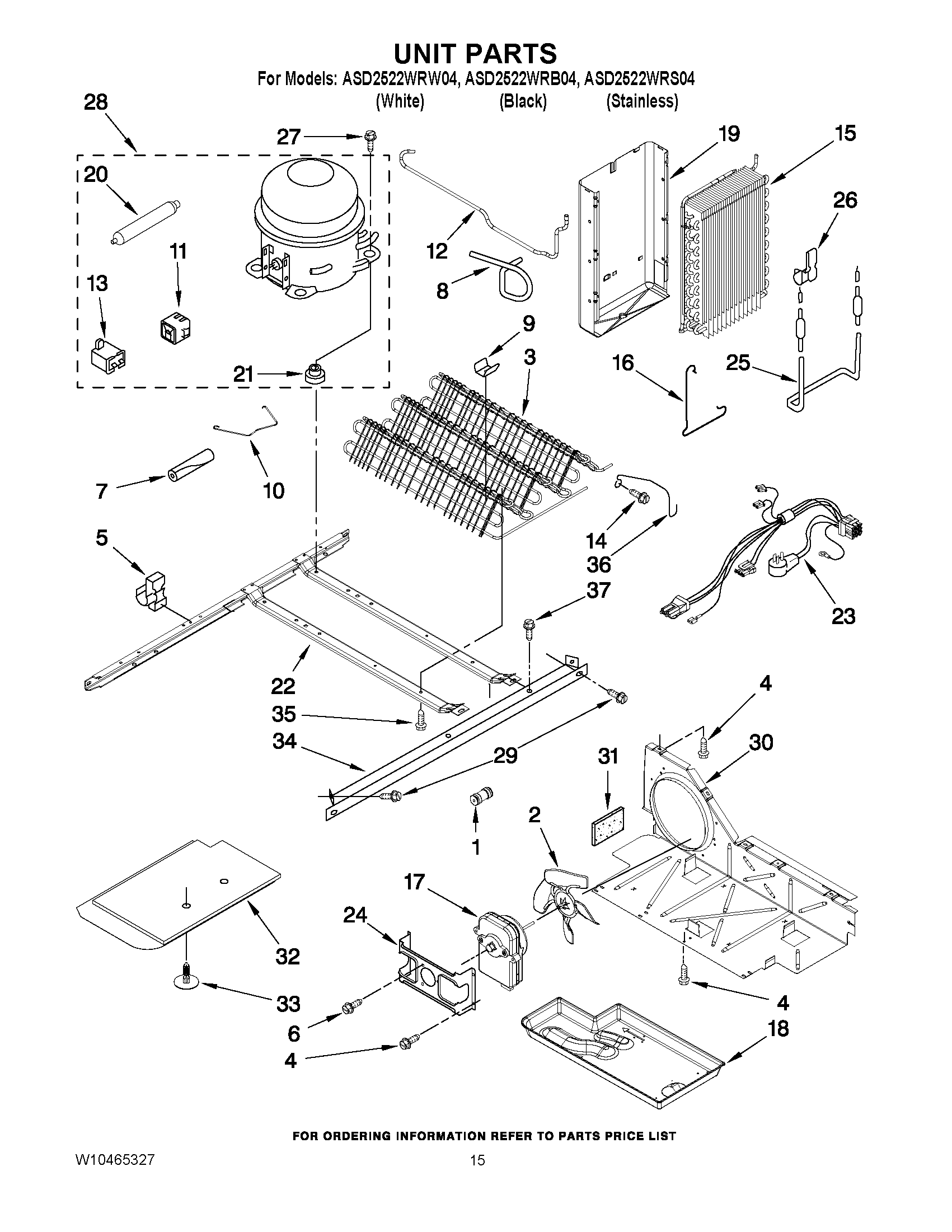

ASD2522WRS04 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	CONNECTOR, WATER
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	MAY W10001250
5	Clip, Wire
6	MAY 8533993
7	Sleeve, Pressure Switch Hose
8	MAY W10371237
9	MAY 2216914
10	MAY W10174384
11	Start-Device, Combination (Start Relay and Overload)
12	MAY W10177642
13	Capacitator (Production)
14	SCREW, 8 X 1/2
15	Evaporator
17	MOTOR, CONDENSOR
18	MAY 1105523
19	Heat Shield (Includes 26)
20	MAY W10423407
21	MAY 2183042
22	Unit Mounting Frame
23	MAY W10309395
24	MAY 2181929
25	MAY 2323198
26	Clip
27	MAY 489473
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	MAY 489340
30	MAY W10411518
31	FOAM PAD
32	Unit Cover, Bottom
33	MAY 489396
34	MAY 2305374
35	MAY 8281232
36	MAY 2260517
37	MAY W10146358
