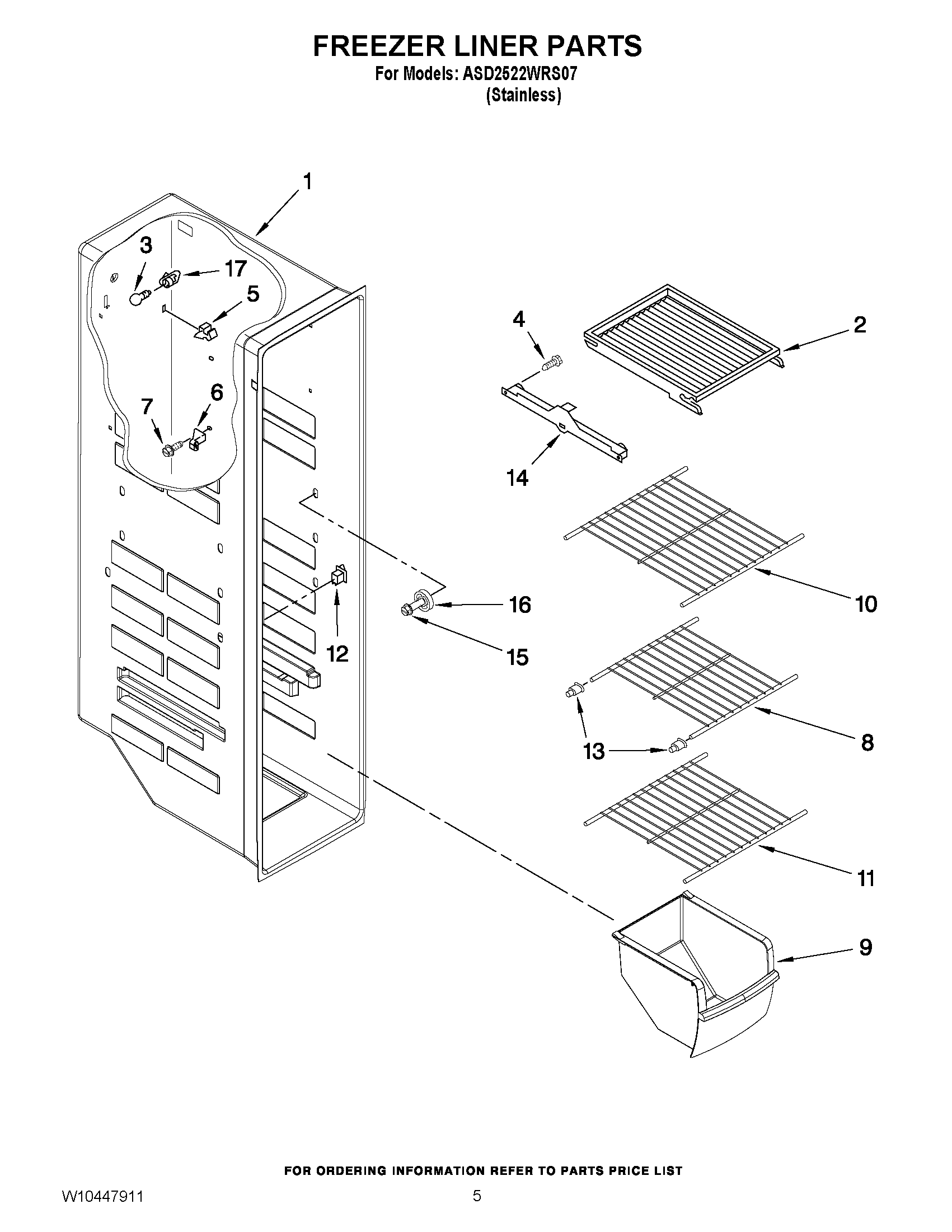

ASD2522WRS07 04 – FREEZER LINER PARTS

ASD2522WRS07 04 – FREEZER LINER PARTS

Written by

in

ASD2522WRS07 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714
3	MAY 527949
4	MAY 489100
5	MAY 2315163
6	Support, Stud (4)
7	MAY 3400893
8	MAY W10318948
9	Freezer Bin
10	MAY W10318946
11	MAY W10318947
12	Switch, Rocker Arm
13	Cup, Shelf Mount
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY W10191952
16	ASSEMBLY, SHELF STUD
17	Socket, Light
