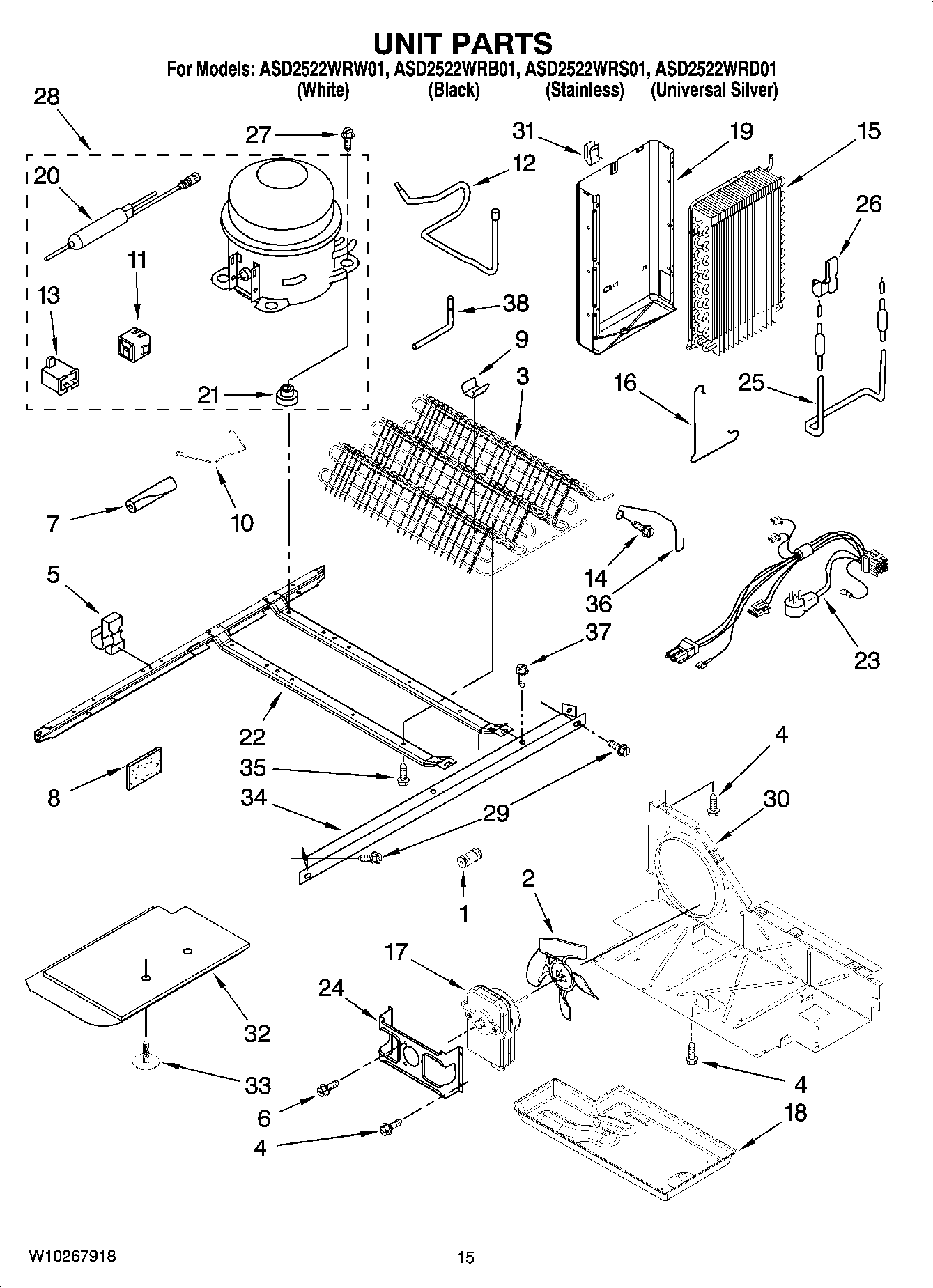

ASD2522WRW01 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	Connector, Water
2	Fan, Blade
3	Condenser Assembly (Also Order 1)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	Sleeve, Pressure Switch Hose
8	MAY 2215468
9	MAY 2311725
10	Clip, Retaining
11	Start-Device, Combination (Start Relay and Overload) (Service)
11	Start-Device, Combination (Start Relay and Overload) (Production)
12	MAY 2205765
13	Capacitator (Production)
14	MAY 489478
15	Evaporator
17	MOTOR, CONDENSOR
18	MAY 1105523
19	Heat Shield
20	Drier
20	Drier
21	MAY 4387558
21	Grommet (Production)
22	Unit Mounting Frame
23	Unit, Harness
24	MAY 2181929
25	MAY 2188175
26	Clip
27	MAY 489373
28	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
29	MAY 489340
30	MAY W10163483
31	MAY 2155547
32	Unit Cover, Bottom
33	MAY 489396
34	MAY W10196323
35	MAY 8281232
36	MAY 2260517
37	MAY 489427
38	MAY 2325479
