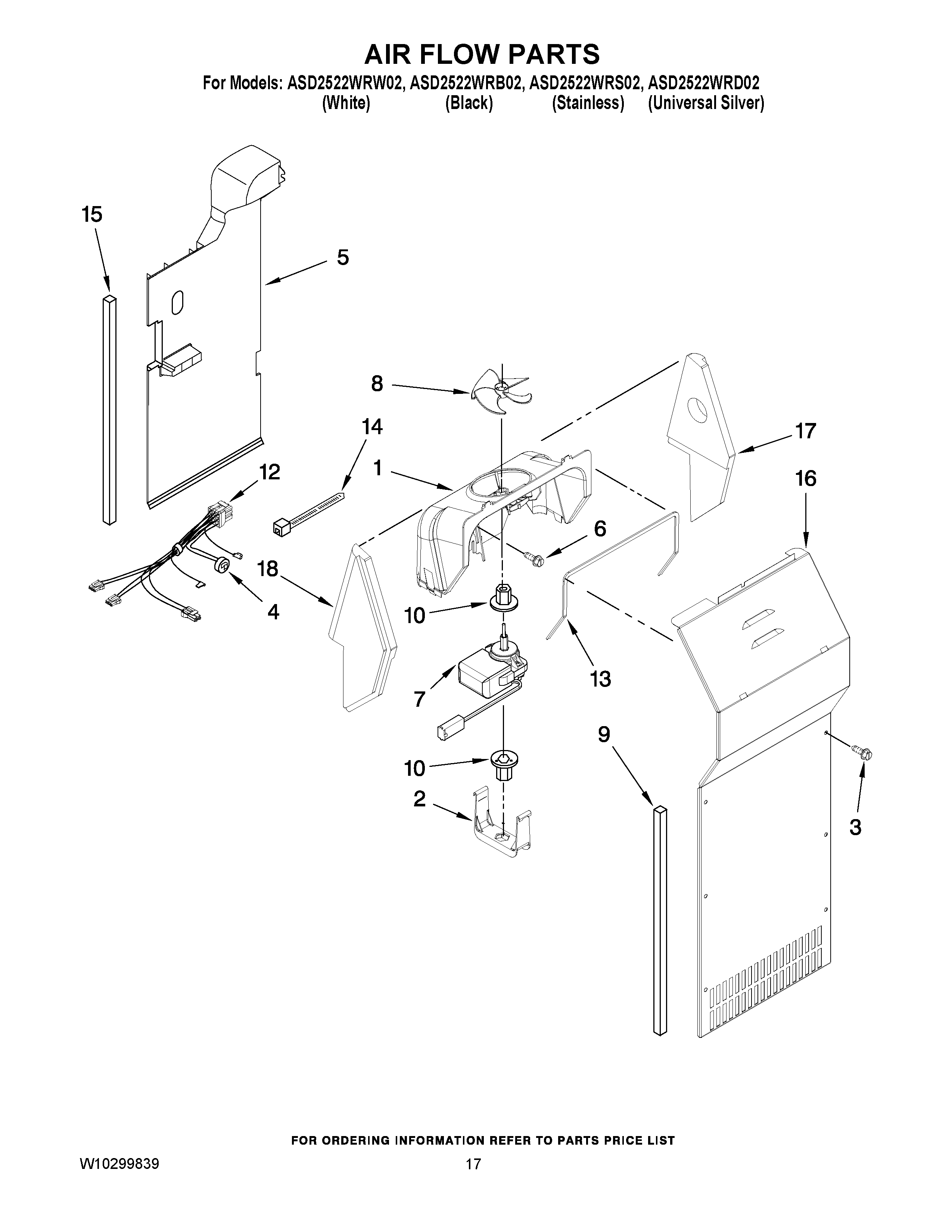

ASD2522WRW02 10 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 8281159
4	MAY 2321799
5	AIR DUCT FREEZER
6	MAY 489478
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
12	Harness, Fan Evaporator (Includes 4)
13	Gasket, Fan Scroll
14	Wire Tie
15	MAY 2203876
16	Cover, Evaporator (Includes 9)
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
