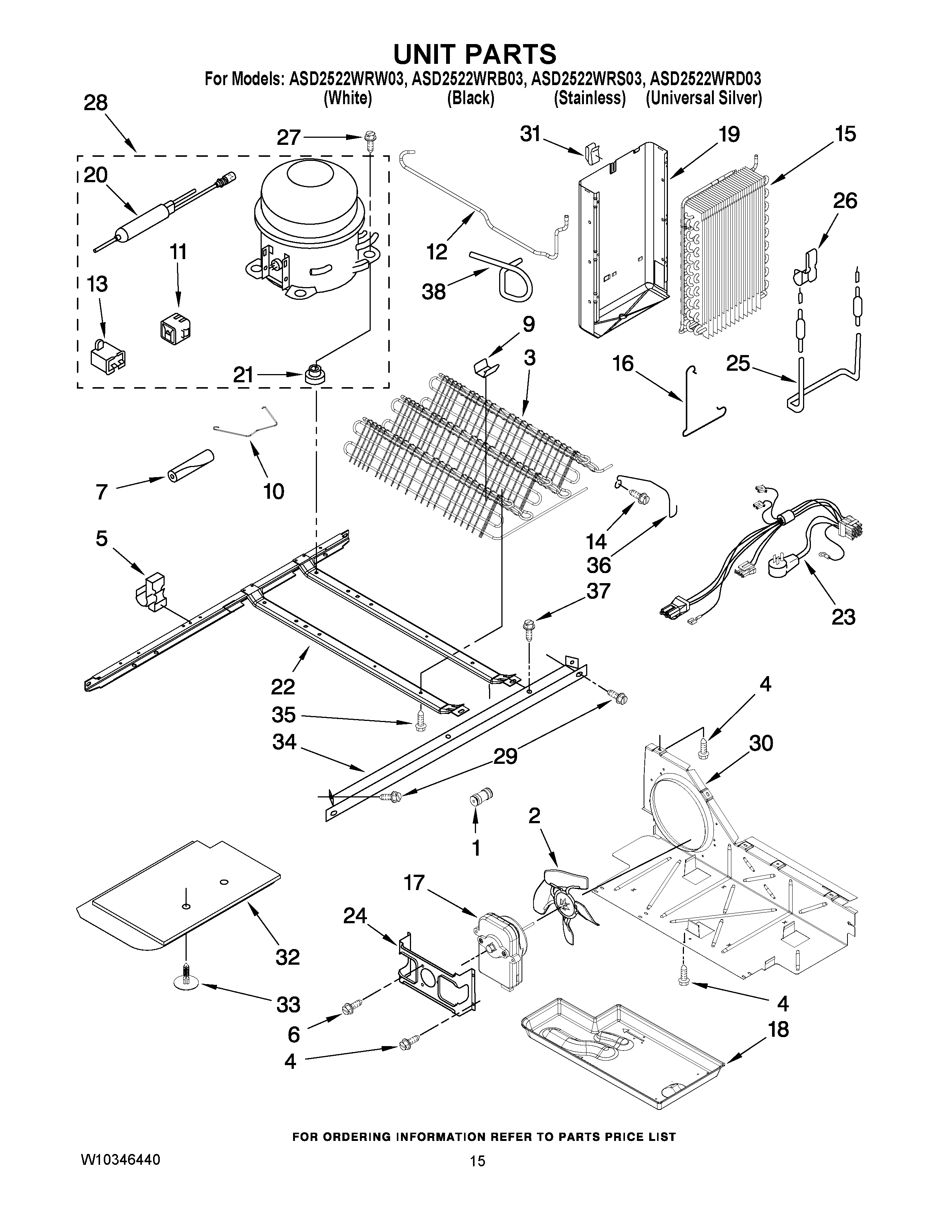

ASD2522WRW03 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	CONNECTOR, WATER
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	Sleeve, Pressure Switch Hose
9	MAY 2216914
10	MAY W10174384
11	Start-Device, Combination (Start Relay and Overload)
12	MAY W10177642
13	Capacitator (Production)
14	MAY 489478
15	Evaporator
17	MOTOR, CONDENSOR
18	MAY 1105523
19	Heat Shield (Includes 26)
20	Drier
21	MAY 2183042
22	Unit Mounting Frame
23	Unit, Harness
24	MAY 2181929
25	MAY 2323198
26	Clip
27	MAY 489373
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	MAY 489340
30	MAY 2196202
31	MAY 2155547
32	Unit Cover, Bottom
33	MAY 489396
34	MAY W10196323
35	MAY 8281232
36	MAY 2260517
37	MAY 489427
38	Tube, Process
