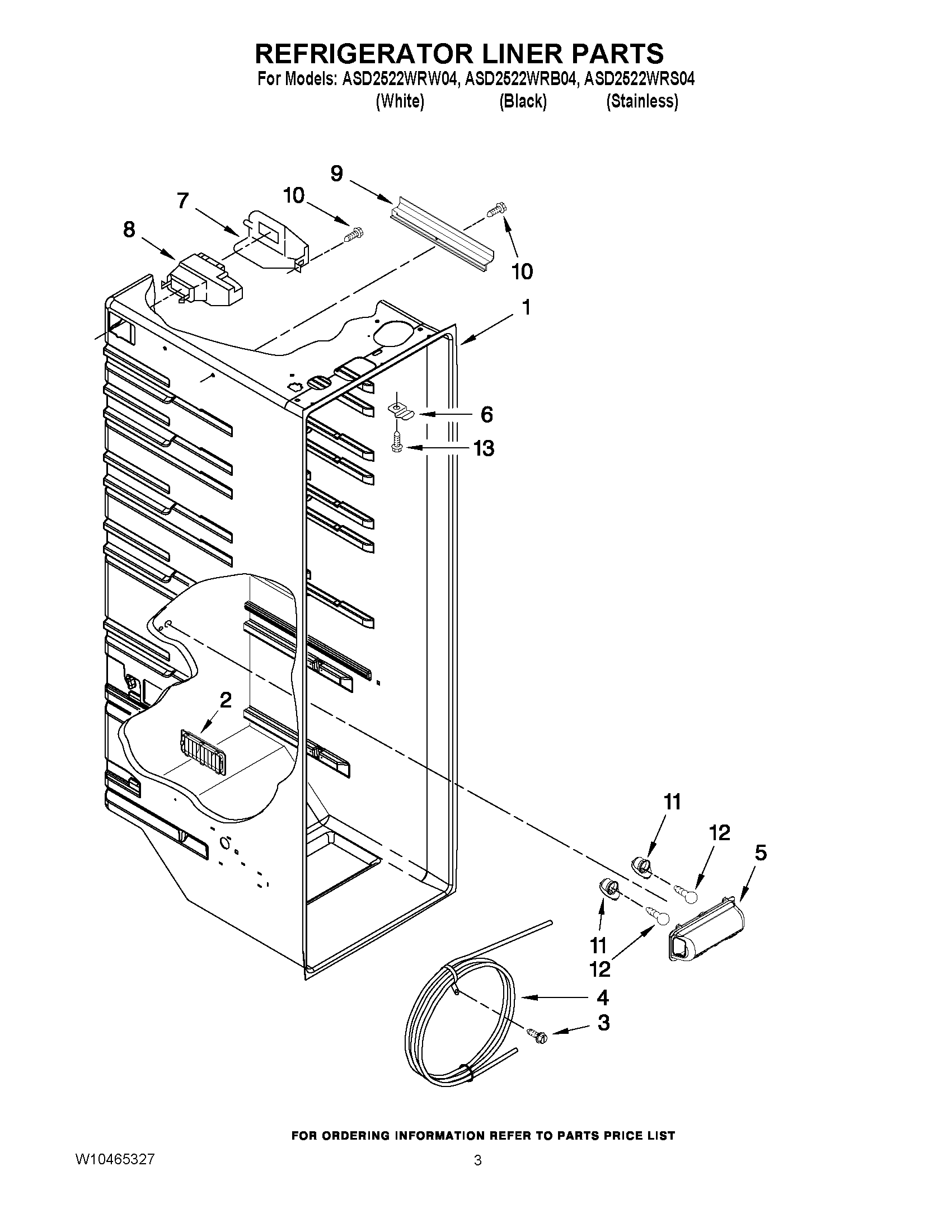

ASD2522WRW04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2257741
3SCREW 8-15 X 3/4
4RESERVOIR
5MAY W10242623
6CLIP, CONTROL BOX
7Air Diffuser Cover
8MAY W10151374
9Cover, Conduit
10MAY W10004810
11Socket, Light
12MAY W10311505
13SCREW
