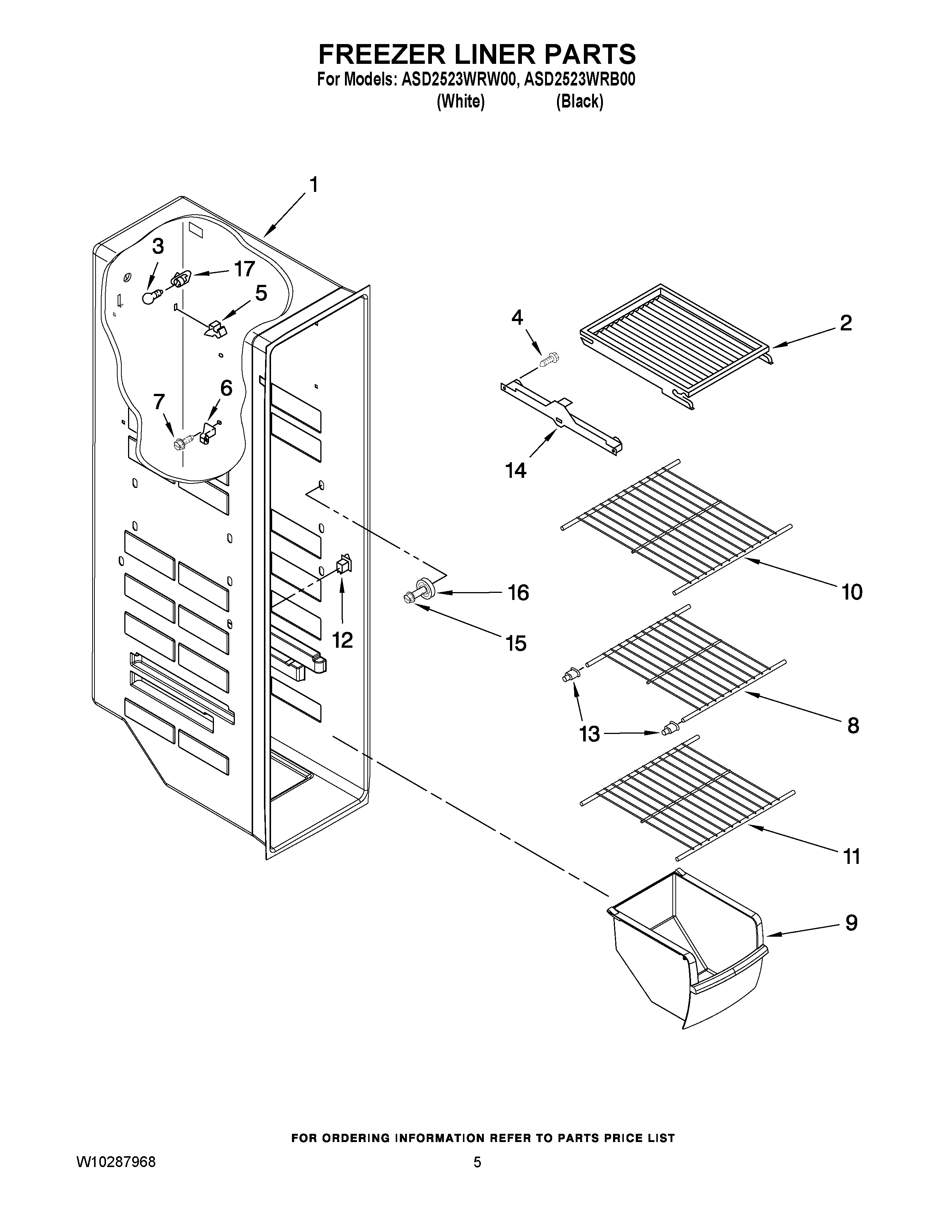

ASD2523WRW00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2171714
3MAY 527949
4MAY 489100
5Clip, Air Duct (2)
6Support, Stud (4)
7MAY 3400893
8MAY 2309597
9Freezer Bin
10Shelf, Wire
11SHELF WIRE
12Switch, Rocker Arm
13Cup, Shelf Mount
14Slide, Container (Left Side)
14Slide, Container (Right Side)
15MAY W10191952
16ASSEMBLY, SHELF STUD
17Socket, Light
