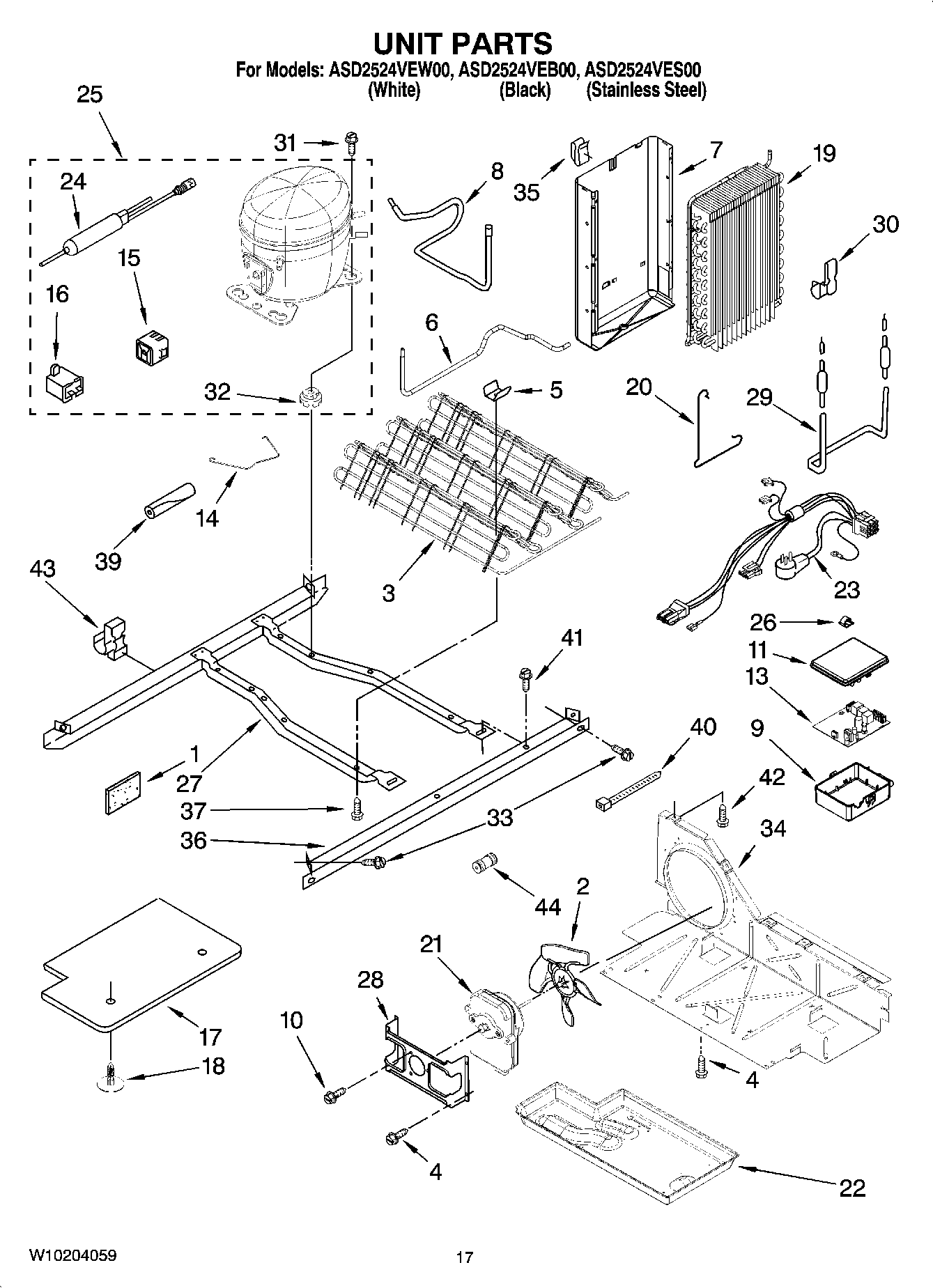

ASD2524VEB00 11 – UNIT PARTS

Products

Position	Product
	MAY 876764
	Valve, Access (3/4“)
	Valve, Access (5/8“)
	Valve, Access (1/2“)
	VALVE, ACCESS (3/8“)
	Valve, Access (5/16“)
	VALVE, ACCESS (1/4“)
1	SEALER, INSULATION
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 2161341
7	Heat Shield (Includes 26)
8	MAY 2205765
9	MAY 2326982
10	MAY 8533993
11	Box Cover
13	MAY 2322547
14	MAY 2223314
15	Start-Device, Combination (Start Relay and Overload) (Service)
16	CAPACITATOR (SERVICE)
16	Capacitator (Production)
17	Unit Cover, Bottom
18	MAY 489396
19	Evaporator
20	Clip
21	MOTOR, CONDENSOR
22	MAY 1105523
23	MAY W10163019
24	Drier
24	Drier
25	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
26	MAY 1115374
27	MAY 2304904
28	MAY 2181929
29	MAY 2323198
30	MAY 2304287
31	MAY 489373
32	Grommet (Production)
32	MAY 4387558
33	MAY 489340
34	MAY 2196202
35	MAY 2155547
36	MAY 2305374
37	MAY 8281232
39	Sleeve, Pressure Switch Hose
40	Wire Tie
41	MAY 489427
42	MAY 489478
43	MAY W10169512
44	Connector, Water
