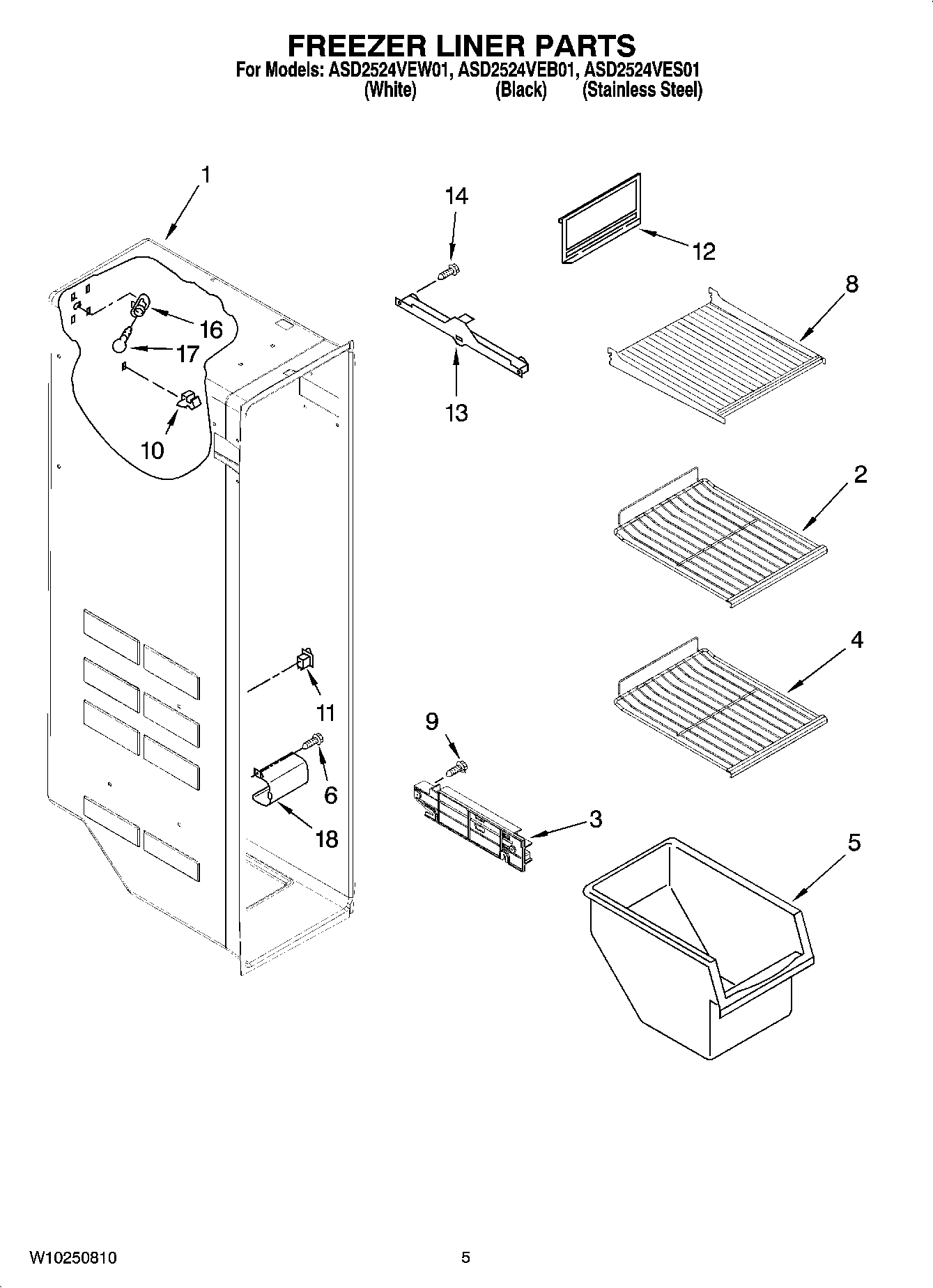

ASD2524VEB01 04 – FREEZER LINER PARTS

ASD2524VEB01 04 – FREEZER LINER PARTS

Written by

in

ASD2524VEB01 04 – FREEZER LINER PARTS

Products

Position	Product
2	MAY 2171714K
3	Slide, Basket (Left Side)
3	Slide, Basket (Right Side)
4	MAY 2174268K
5	MAY 2182971
6	MAY 3400893
8	Shelf (1)
9	MAY W10004810
10	Clip, Air Duct (2)
11	Switch, Rocker Arm
12	MAY 2171713K
13	Slide, Container (Left Side)
13	Slide, Container (Right Side)
14	SCREW, 8 X 1/2
16	Socket, Light
17	MAY 527949
18	MAY 2171705
