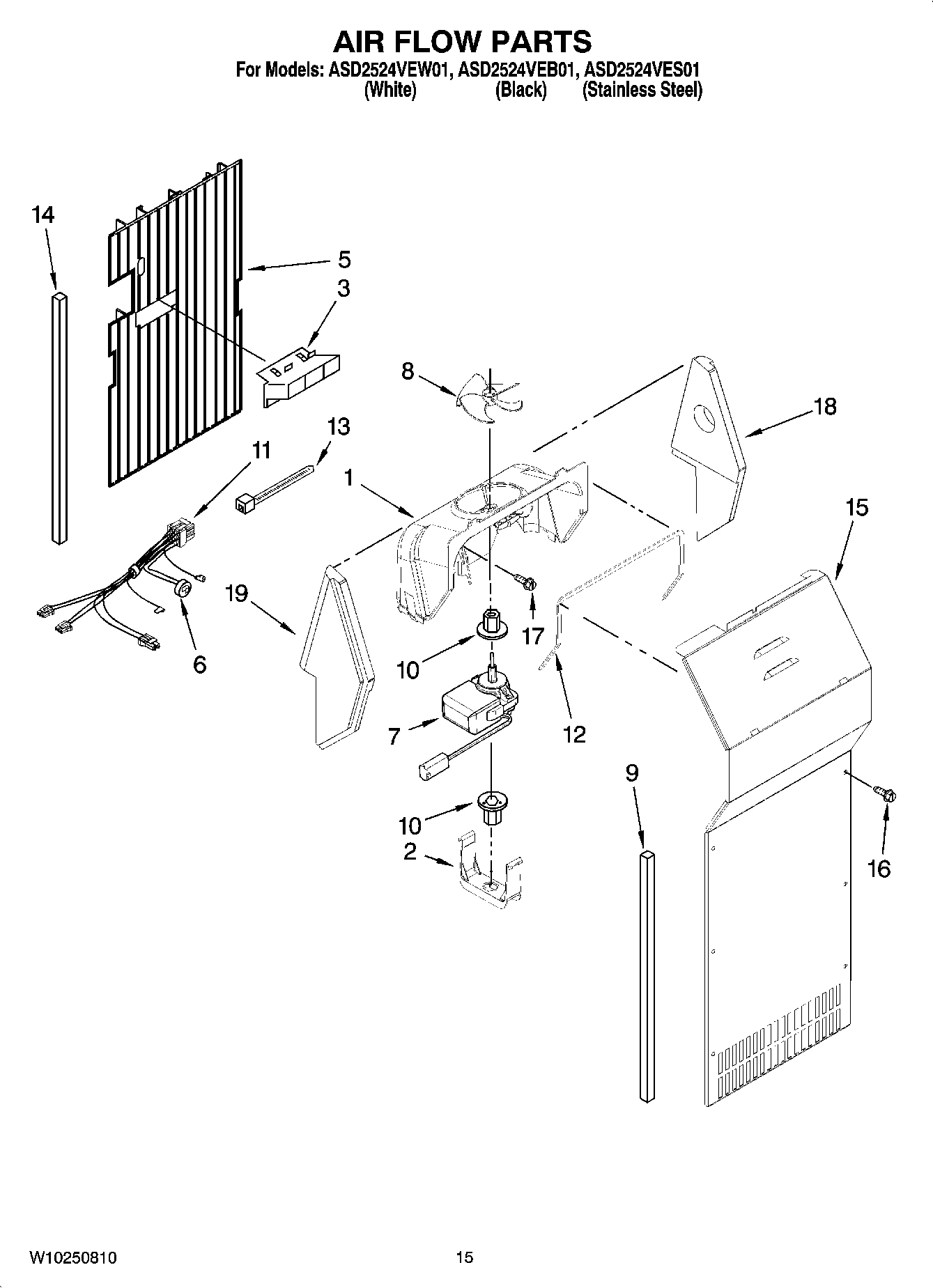

ASD2524VEB01 09 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2182146
5	MAY 2203593
6	MAY 2321799
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Evaporator (Includes 4)
12	Gasket, Fan Scroll
13	Wire Tie
14	MAY 2203876
15	MAY 2203841
16	MAY 8281159
17	SCREW, 8 X 1/2
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
