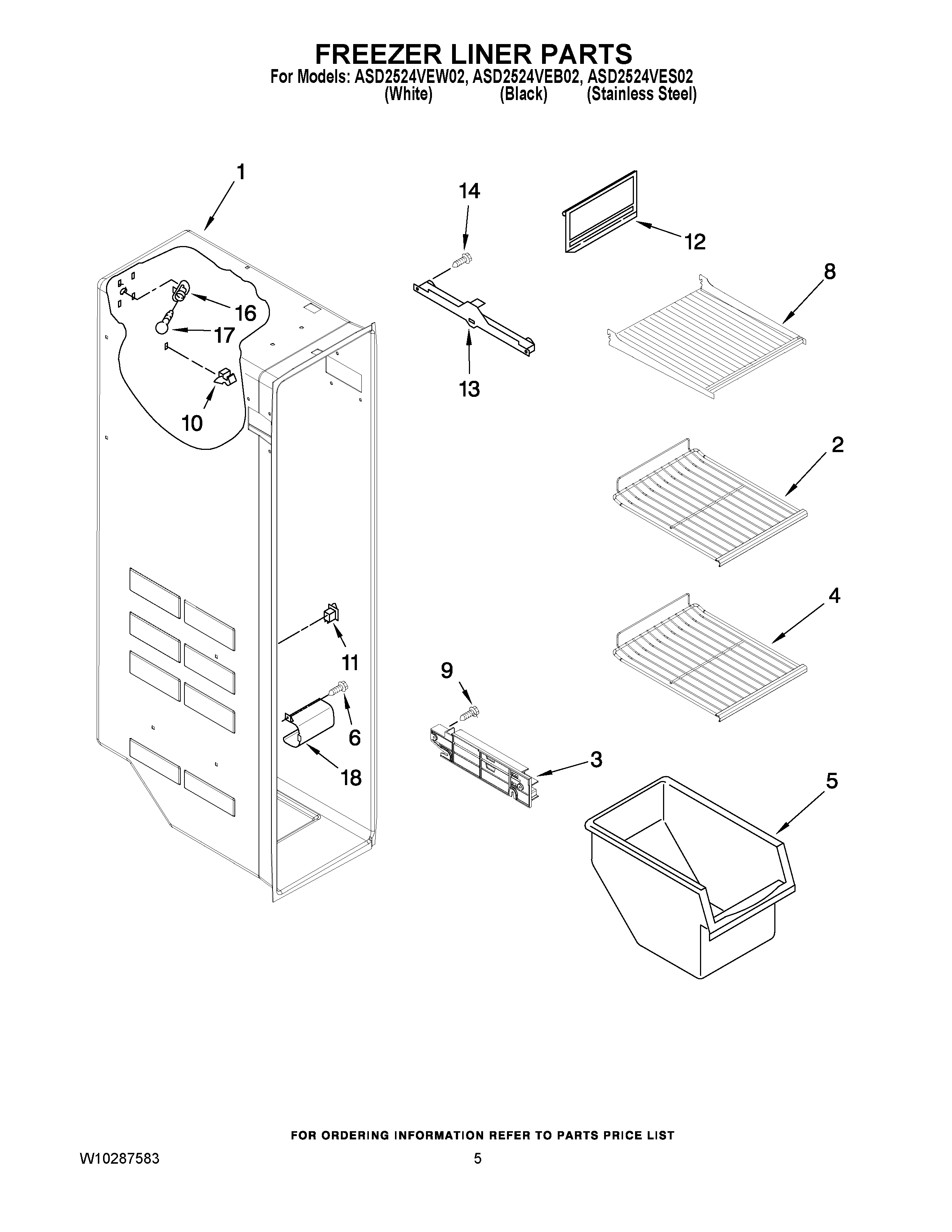

ASD2524VEB02 04 – FREEZER LINER PARTS

ASD2524VEB02 04 – FREEZER LINER PARTS

Written by

in

ASD2524VEB02 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2171714
3Slide, Basket (Left Side)
3Slide, Basket (Right Side)
4SHELF, SLIDE OUT
5MAY 2182971
6MAY 3400893
8MAY 2174267
9MAY W10004810
10Clip, Air Duct (2)
11Switch, Rocker Arm
12DOOR, ICE COMP
13Slide, Container (Left Side)
13Slide, Container (Right Side)
14SCREW, 8 X 1/2
16Socket, Light
17MAY 527949
18MAY 2171705
