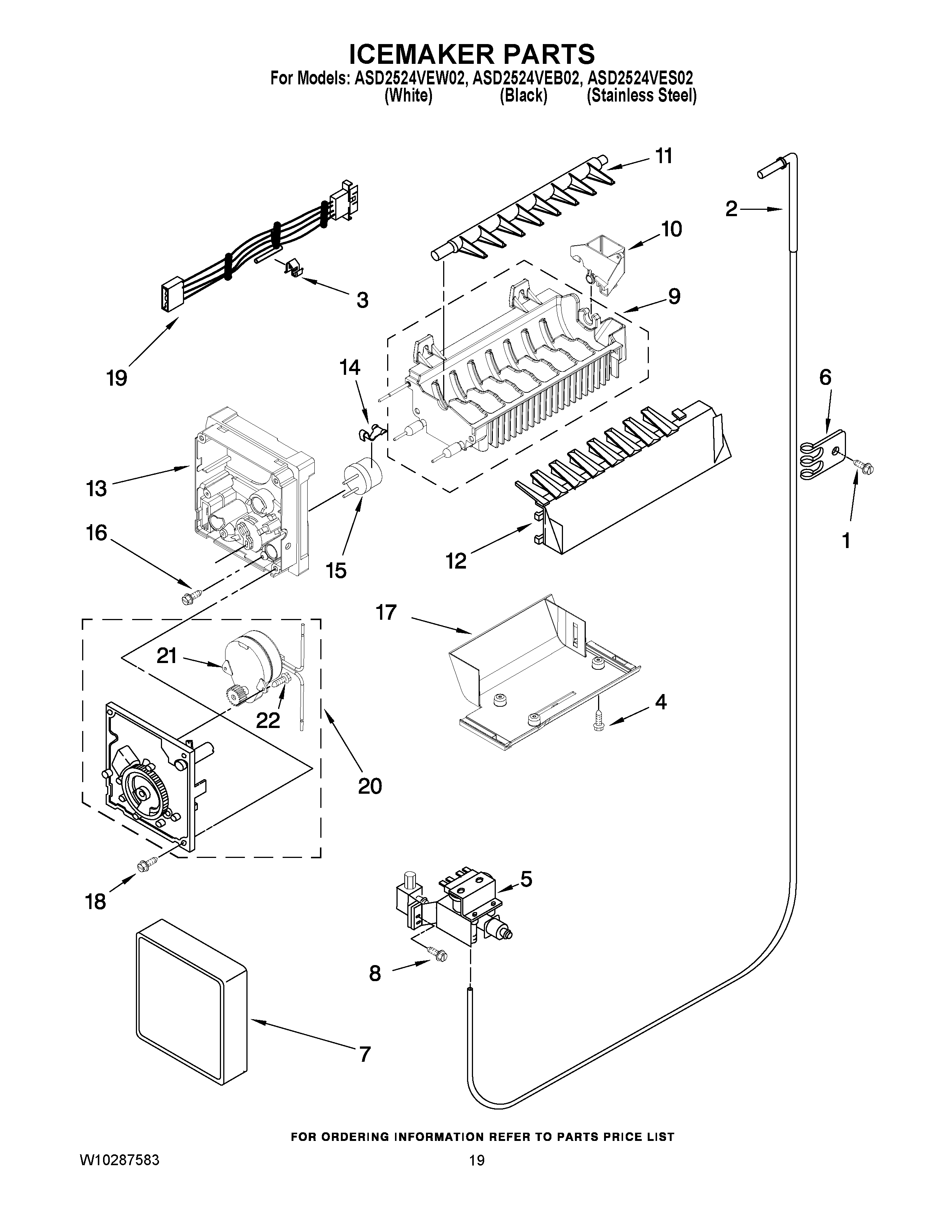

ASD2524VEB02 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY W10141645
2	MAY 2209774
3	Clip
4	SCREW, 8 X 1/2
5	MAY 2188708
6	Clip, Tube
7	MAY 2174155
8	MAY 488649
9	MAY W10122527
10	MAY W10122561
11	MAY 627843
12	ICE STRIPPER
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 628320
18	MAY 489276
19	MAY 2187464
20	Module Assembly (Includes Items 23 and 24)
21	MAY 626683
22	MAY 489136
100	MAY W10190966
