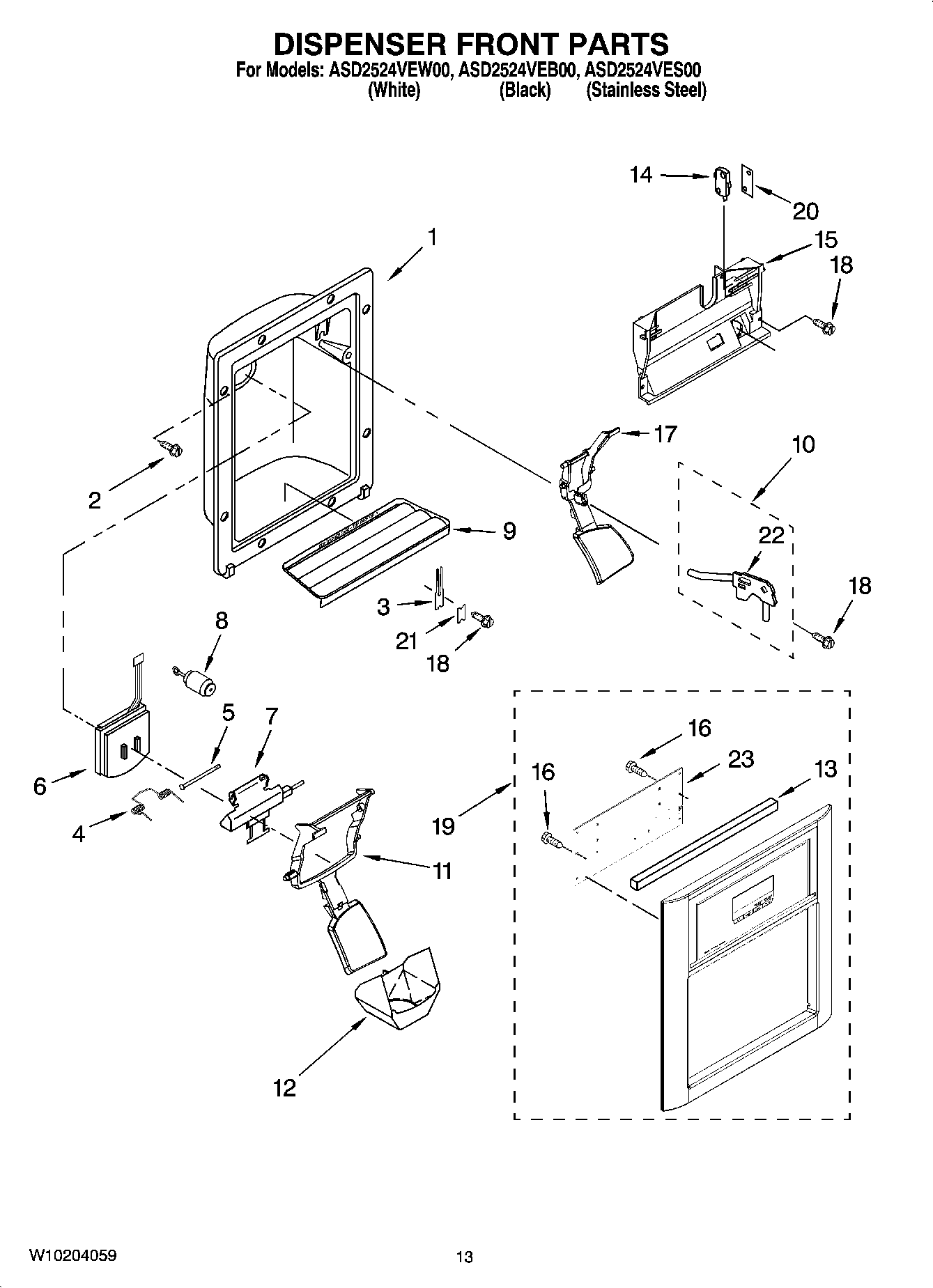

ASD2524VES00 08 – DISPENSER FRONT PARTS

ASD2524VES00 08 – DISPENSER FRONT PARTS

Written by

in

ASD2524VES00 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	Grille, Overflow (White)
9	Grille, Overflow (Black)
10	MAY 2304317
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	MAY 2305571
14	Switch (4)
15	MAY W10167536
16	Screw (2)
17	Lever, Water Dispenser (Black)
17	Lever, Water Dispenser (White)
18	MAY 489000
19	MAY W10139881
19	MAY W10139879
20	MAY 625834
21	MAY 2195051
22	MAY 2304673
23	MAY W10170979
