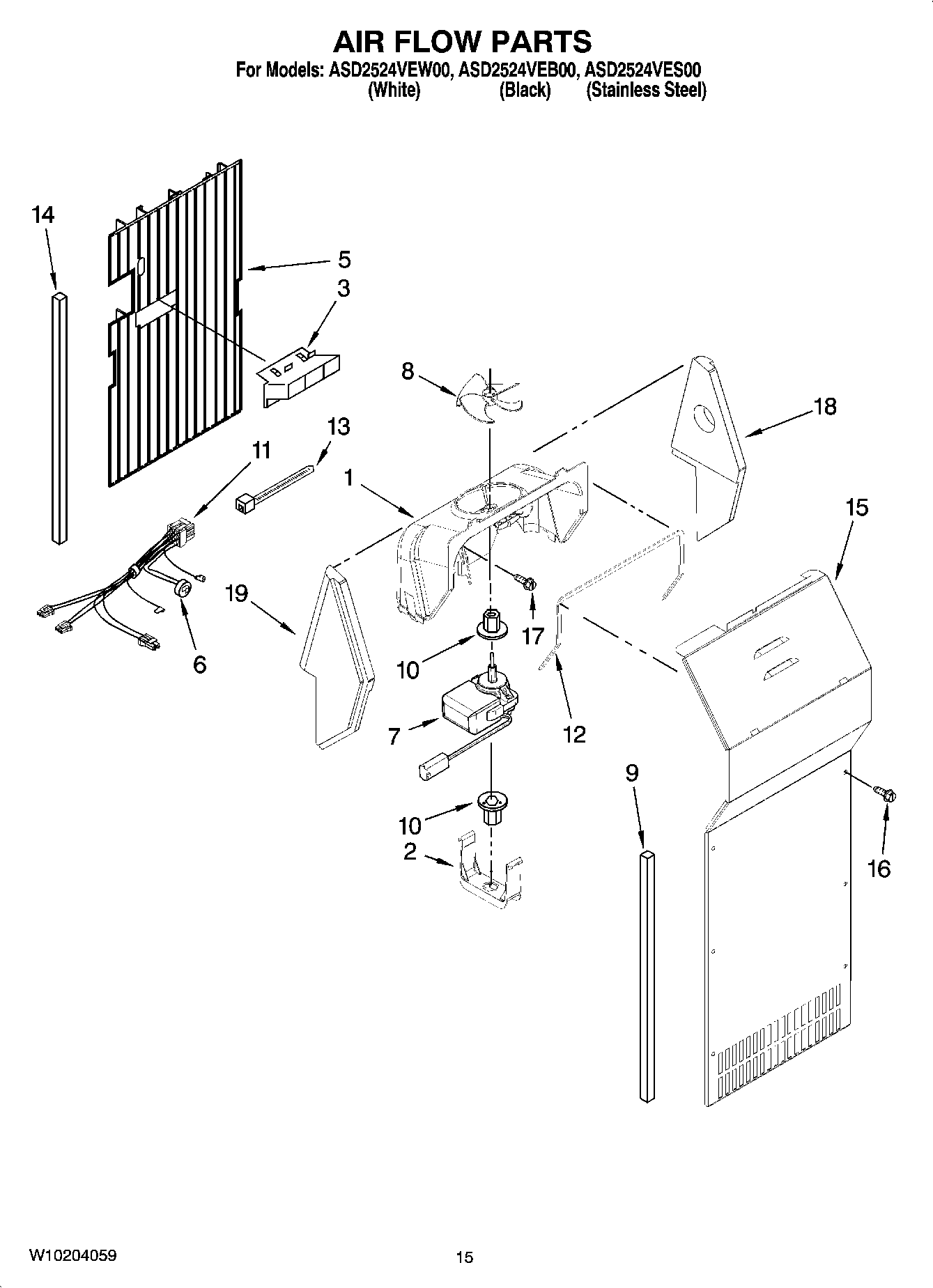

ASD2524VES00 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2182146
5	MAY 2203593
6	MAY 2321799
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Evaporator (Includes 4)
12	Gasket, Fan Scroll
13	Wire Tie
14	MAY 2203876
15	MAY 2203841
16	MAY 8281159
17	MAY 489478
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
