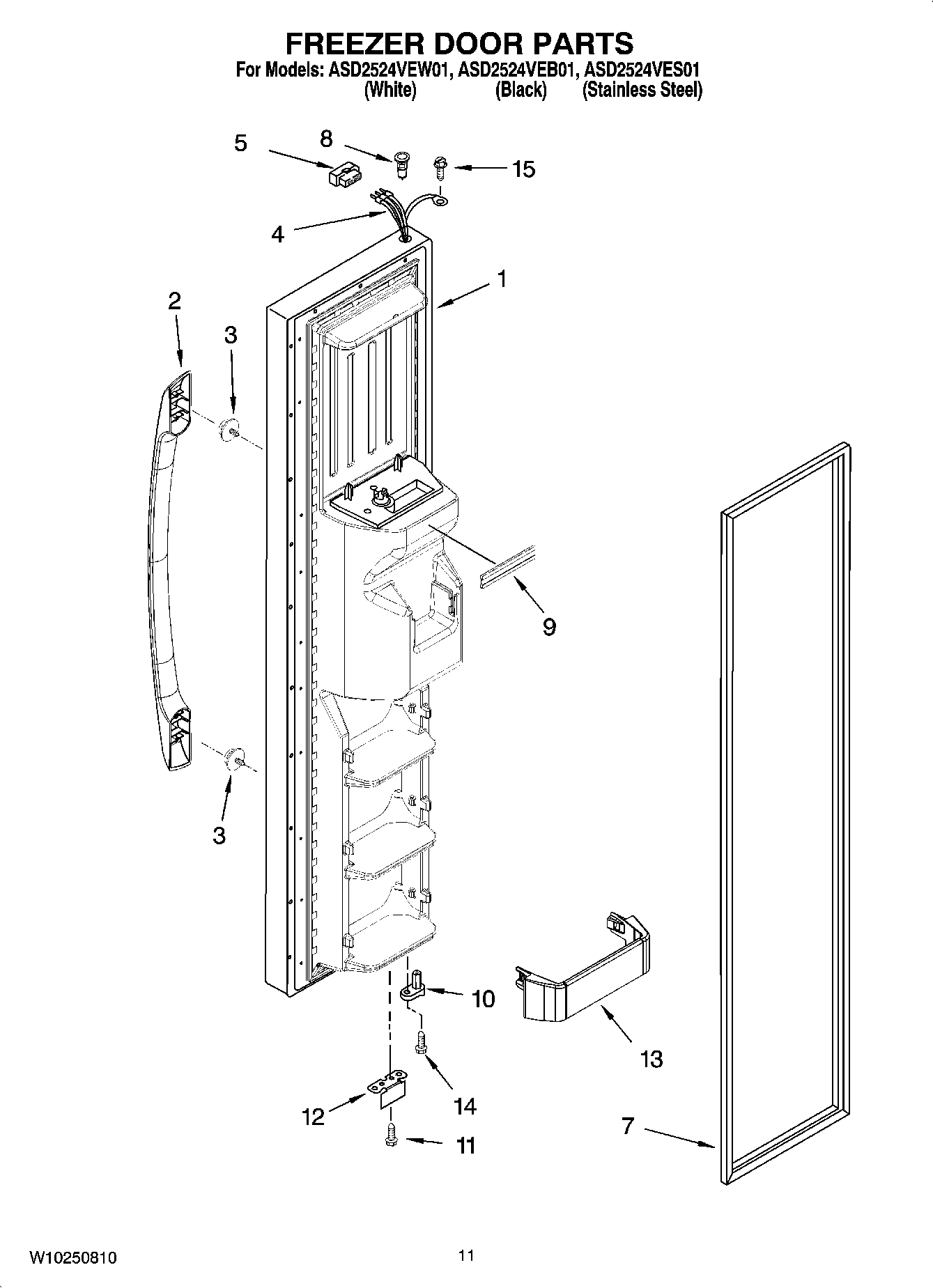

ASD2524VES01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
2	MAY W10179169
2	MAY W10179171
2	Handle, Assy (Stainless Steel)
3	MAY 2326016
4	MAY W10167528
5	Connector
7	Door Gasket, Magnetic (Repair) (Black)
7	Door Gasket, Magnetic (Repair) (Mist Beige)
8	MAY 2308091
8	Thimble-Top (For White, Black, Biscuit and Stainless VCM Models)
9	Trim, Door (4)
10	MAY 2323535
11	MAY 489420
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	Shelf (1)
14	MAY 3400012
15	SCREW
