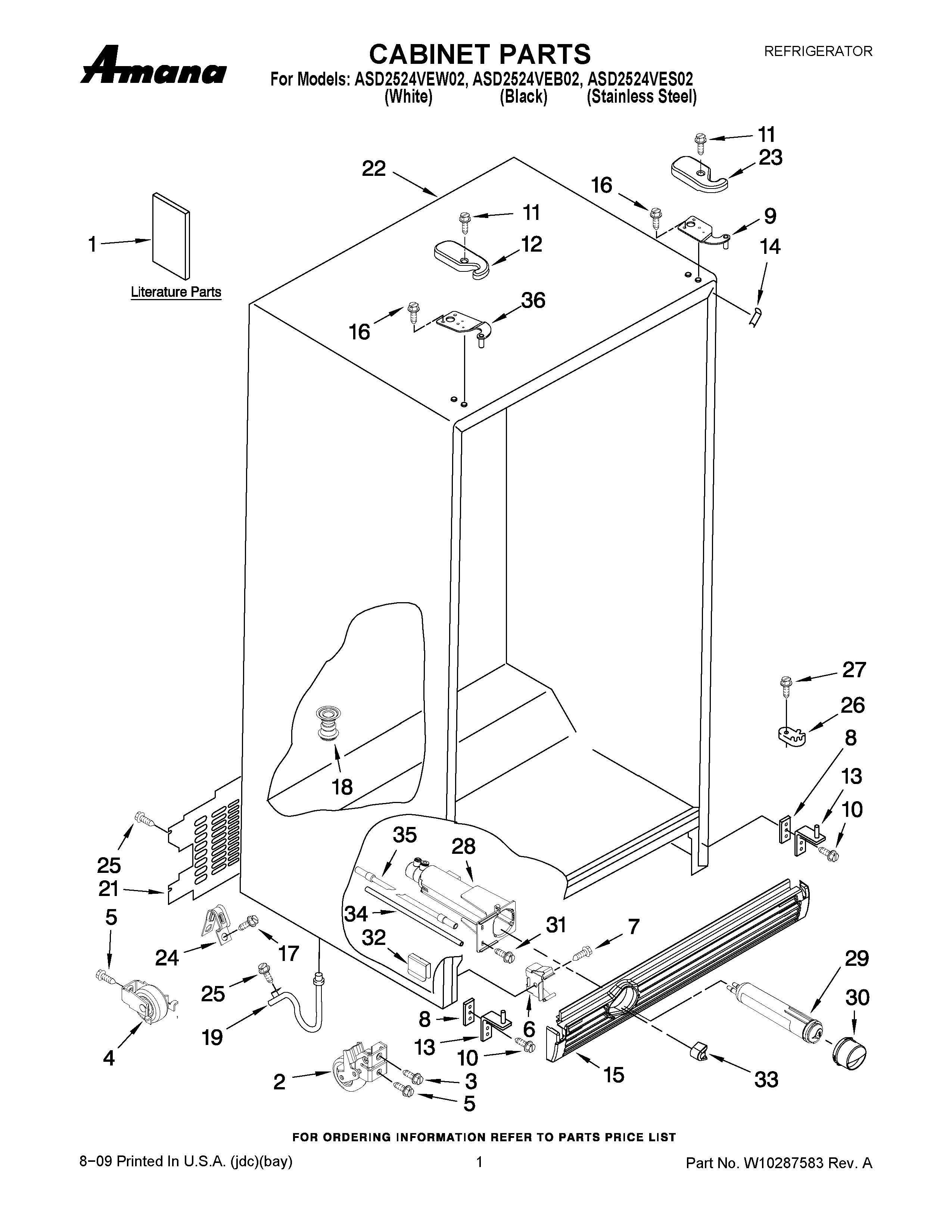

ASD2524VES02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238213
1	MAY W10194140
1	MAY 628370
1	Instruction Sheet (Door Removal)
1	MAY W10162456
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY W10146358
6	MAY 2155013
7	SCREW, 8 X 1/2
8	Shim
9	HINGE TOP RC
10	SCREW
11	MAY 8281227
12	Hinge Cover (FC) (White)
12	Hinge Cover (FC) (Black)
13	Hinge Bottom (FC)
13	Hinge Bottom
14	MAY 2304846
14	MAY 2304848
15	MAY W10184888
15	MAY W10184886
16	MAY 489497
17	MAY W10001250
18	MAY 2304888
19	MAY W10153550
21	MAY 2188739
22	LINER (NOT A SERVICEABLE PART)
23	Hinge Cover (RC) (Black)
23	Hinge Cover (RC) (White)
24	MAY 549193
25	MAY W10141645
26	CLOSER, FREEZER DOOR
26	MAY 2155311
27	MAY 489483
28	MAY 2260507
29	MAY 4396841
30	MAY 2260502W
30	MAY 2260502B
31	MAY 489500
32	Block, Housing Support
33	MAY 2260503W
33	Button, Filter (Black)
34	Tube, Filter Outlet
35	MAY W10212512
36	HINGE TOP, FC
